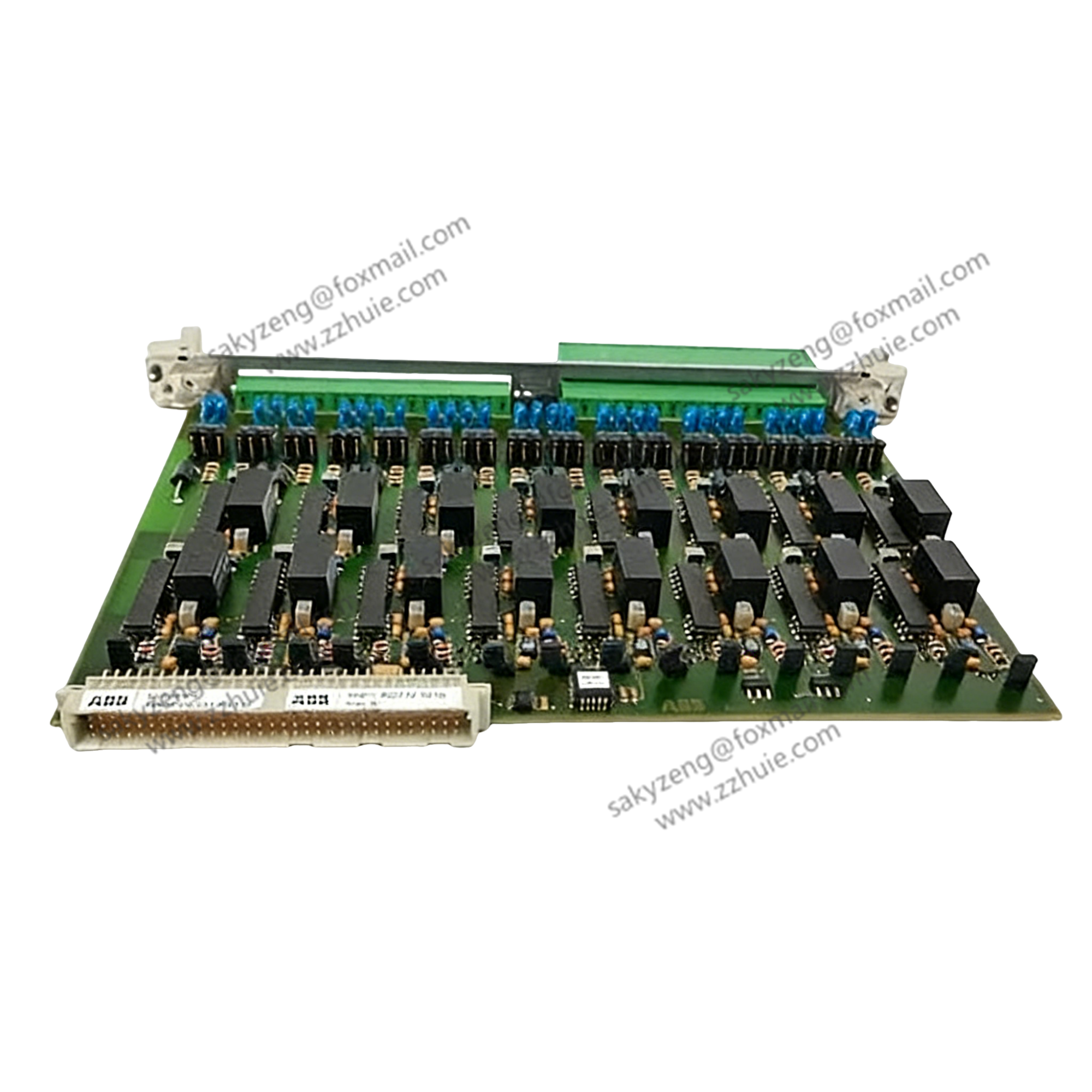

ABB 500ITM02 Control Module for Industrial Automation System

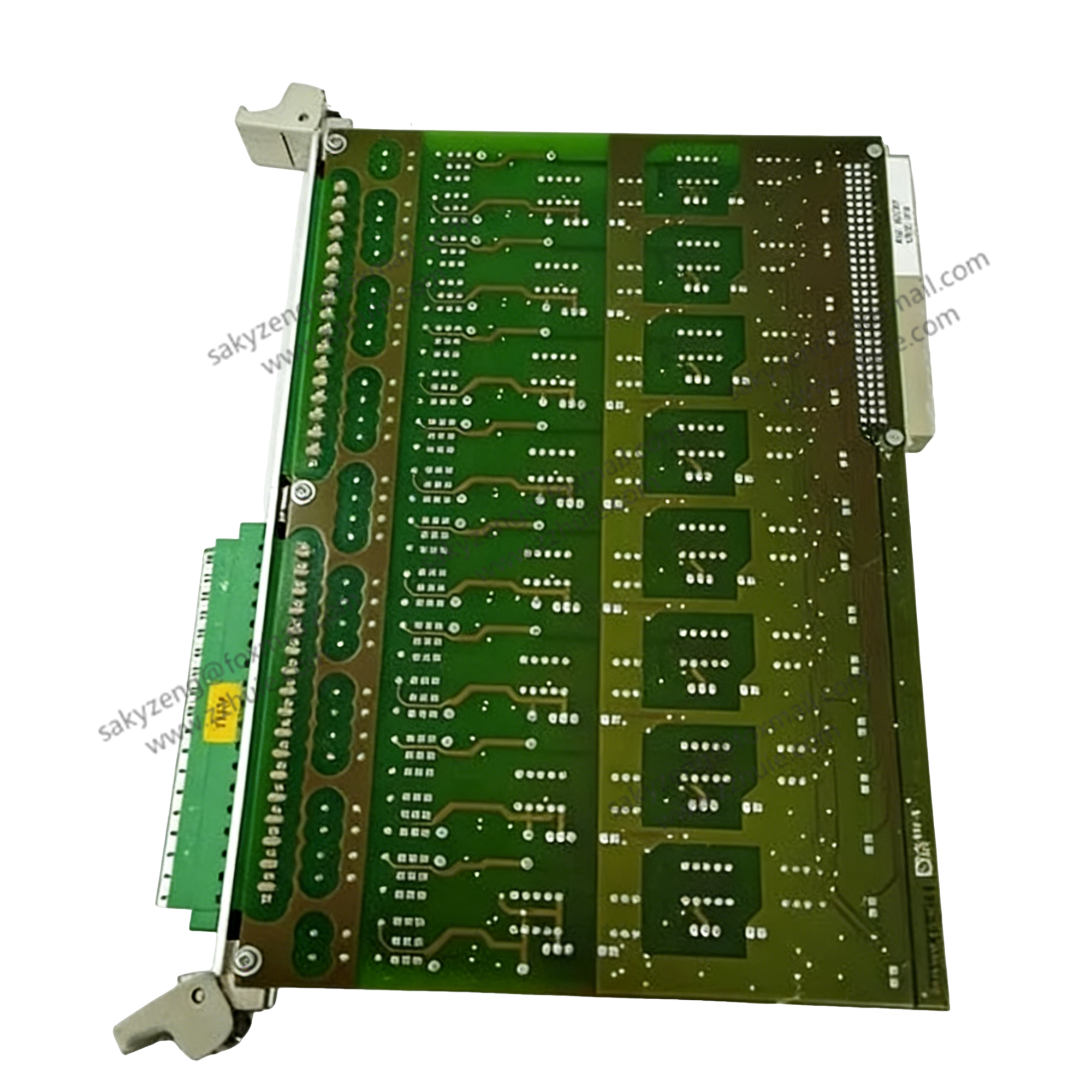

ABB 500ITM02 Control Module for Industrial Automation System

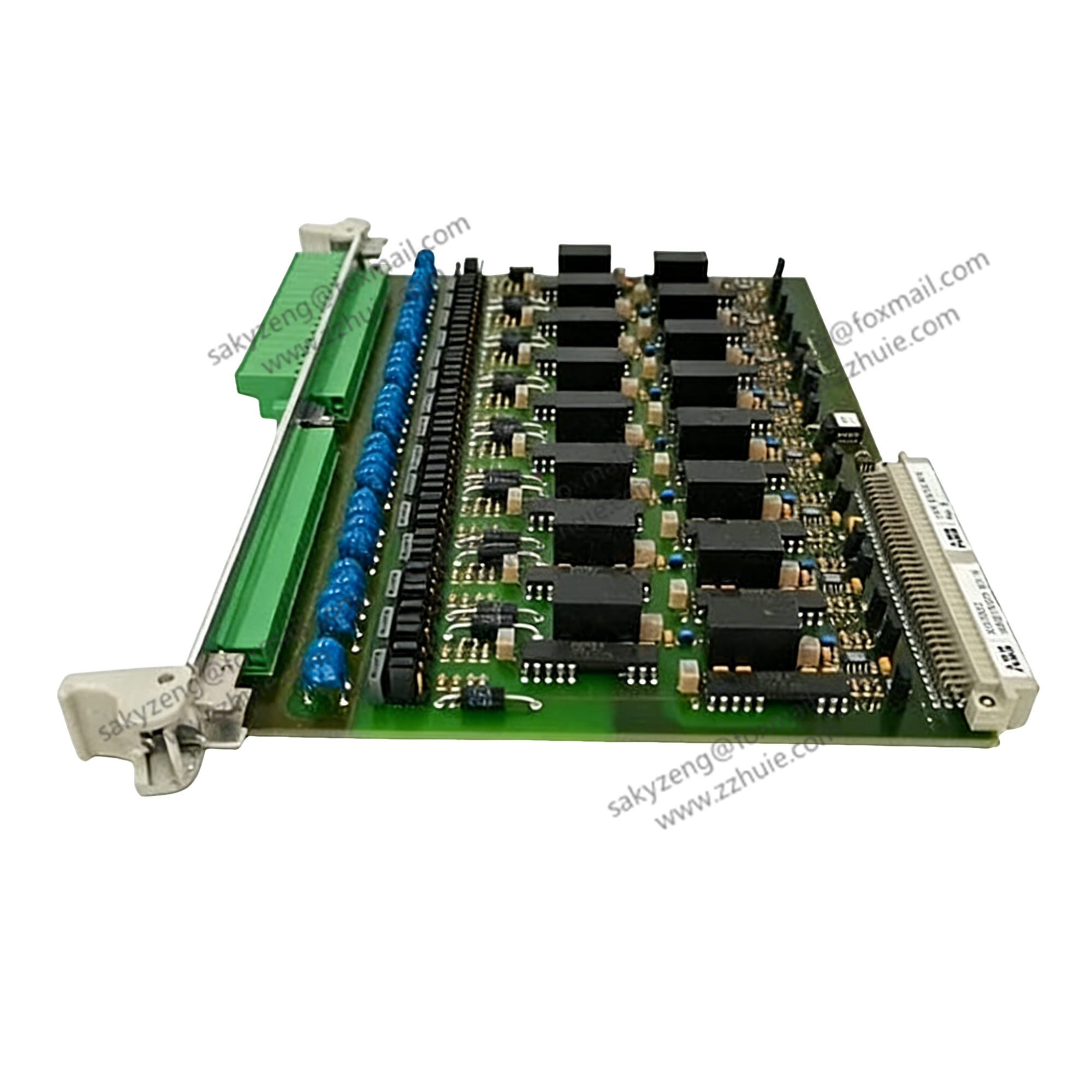

ABB 500ITM02 Control Module for Industrial Automation System

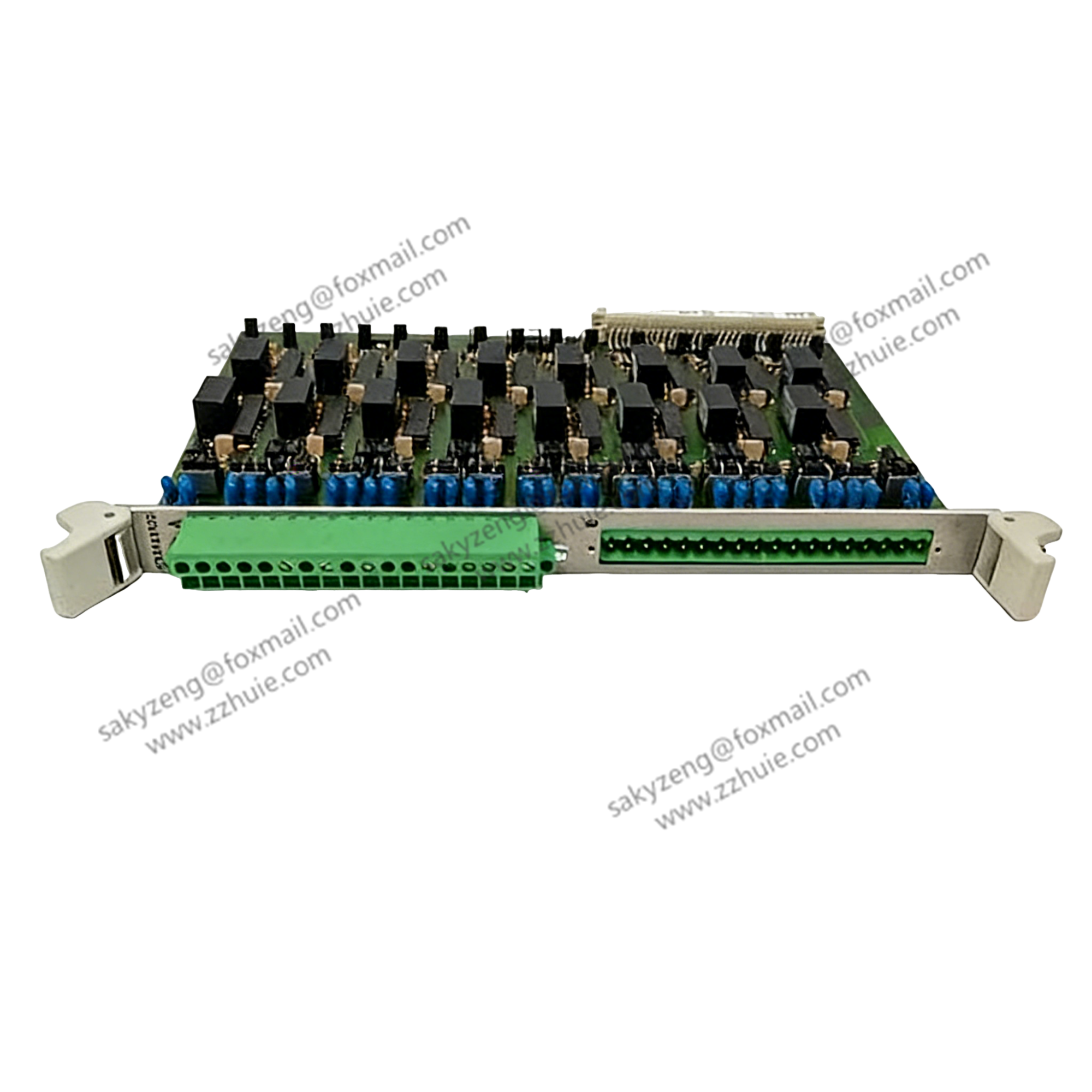

ABB 500ITM02 Control Module for Industrial Automation System

ABB 500ITM02 Interface Terminal Module

Brand: ABB

Model: ABB 500ITM02 Interface Terminal Module

Warranty: 365 days

Quality: new/second-hand

Delivery method: express delivery

Telephone :+86 18020721390

WeChat:+86 18020721390Email:sakyzeng@foxmail.com

product details

Product Overview

ABB 500ITM02 is an interface terminal module designed for ABB industrial automation and power control systems. It serves as the signal termination hub between field devices

and the main I/O modules of the control rack. This module integrates terminal wiring, signal filtering, surge suppression and signal conditioning circuits. It receives analog and

digital signals from field transmitters, switches, sensors and interlock devices, processes these signals and transmits them to the corresponding I/O boards through internal cables

and backplane bus. With rugged industrial construction and conformal coated PCB, it can resist moisture, dust, vibration and strong electromagnetic interference in control cabinets

of power plants and heavy industrial sites. It is a common spare part for routine overhaul, emergency repair and system retrofitting of ABB control systems. It helps simplify on-site

wiring, improve signal stability and facilitate fast troubleshooting for maintenance engineers.

Technical Specifications

  • Brand: ABB
  • Part Number: 500ITM02
  • Product Type: Interface Terminal Module
  • Compatible System: ABB industrial control & power automation system
  • Supported Signal: Analog signals, discrete digital input / output signals
  • Signal Processing: Low-pass filtering, surge protection, ESD protection, signal conditioning
  • Circuit Isolation: Galvanic isolation between field side and control side
  • Power Supply: Powered by control rack backplane
  • Board Treatment: Conformal coated PCB for harsh industrial environment
  • Operating Temperature: -40℃ ~ +85℃
  • Storage Temperature: -50℃ ~ +100℃
  • EMC Compliance: Industrial EMC standard, strong anti-interference capability
  • Installation: Standard rack mounting
  • Cooling: Natural convection cooling
  • Certification: CE
  • Main Function: Field signal termination, signal conditioning, surge protection, signal routing
  • Application: Power plant auxiliary control, industrial automation signal acquisition, interlock monitoring

Main Features

  1. Integrated signal protection and filtering circuits, effectively suppress surge, static electricity and high-frequency noise brought by long field cables, improve signal reliability.
  2. Built-in galvanic isolation design, isolate common-mode interference between field equipment and control system, avoid ground loop impact.
  3. Standard terminal layout, convenient for on-site wiring, loop inspection and maintenance, greatly shorten troubleshooting time.
  4. Conformal coated circuit board, moisture-proof, dust-proof and anti-corrosion, suitable for long-term continuous operation in heavy industrial and power station cabinets.
  5. Seamless matching with ABB series I/O modules and controllers, direct replacement for the same part number without complicated program modification.
  6. Supports multi-channel signal centralized access, helps organize field wiring neatly and reduce wiring confusion inside control cabinets.
  7. With signal fault detection function, it can transmit open circuit, short circuit and over-range alarm information to the main controller.
  8. Compact plug-in structure, easy to disassemble and replace, reduce unit downtime during maintenance.

Working Principle

Field signals collected from sensors, transmitters and auxiliary switches are connected to the terminal terminals of ABB 500ITM02. These signals first pass through the on-board

protection and filtering circuit to eliminate spike interference and surge signals. After isolation and conditioning, the standardized signals are sent to the I/O module and main

controller via internal wiring and backplane. The controller executes monitoring, interlock and closed-loop control logic according to the collected signal data. Once the terminal

module detects signal abnormality such as open circuit or short circuit, it will feed back fault information to the system, trigger alarm or protection interlock according to preset

logic, to guarantee the safe operation of the whole automation system.

Application Scenarios

  • Thermal power plant auxiliary control system
  • Hydropower station automation monitoring cabinet
  • Combined cycle unit ABB control system maintenance and spare replacement
  • Industrial self-provided power station signal acquisition and interlock control
  • Petrochemical, metallurgy and pulp & paper automation control cabinet
  • Old ABB control rack renovation, emergency spare backup
  • Turbine auxiliary parameter monitoring and protection signal collection

Important Notes

  • The 500ITM02 terminal module cannot run independently, it must cooperate with matched I/O modules, backplane and controller.
  • Confirm the full part number 500ITM02 and hardware revision before ordering, different versions may not be interchangeable.
  • Field signal cables should adopt shielded twisted pair and be separated from high-power cables to reduce electromagnetic interference.
  • Only professional automation technicians are allowed for replacement, wiring and commissioning; wrong wiring may cause system trip or module damage.
  • For used spare modules, we will inspect PCB integrity, terminal condition and signal circuit before shipment.
