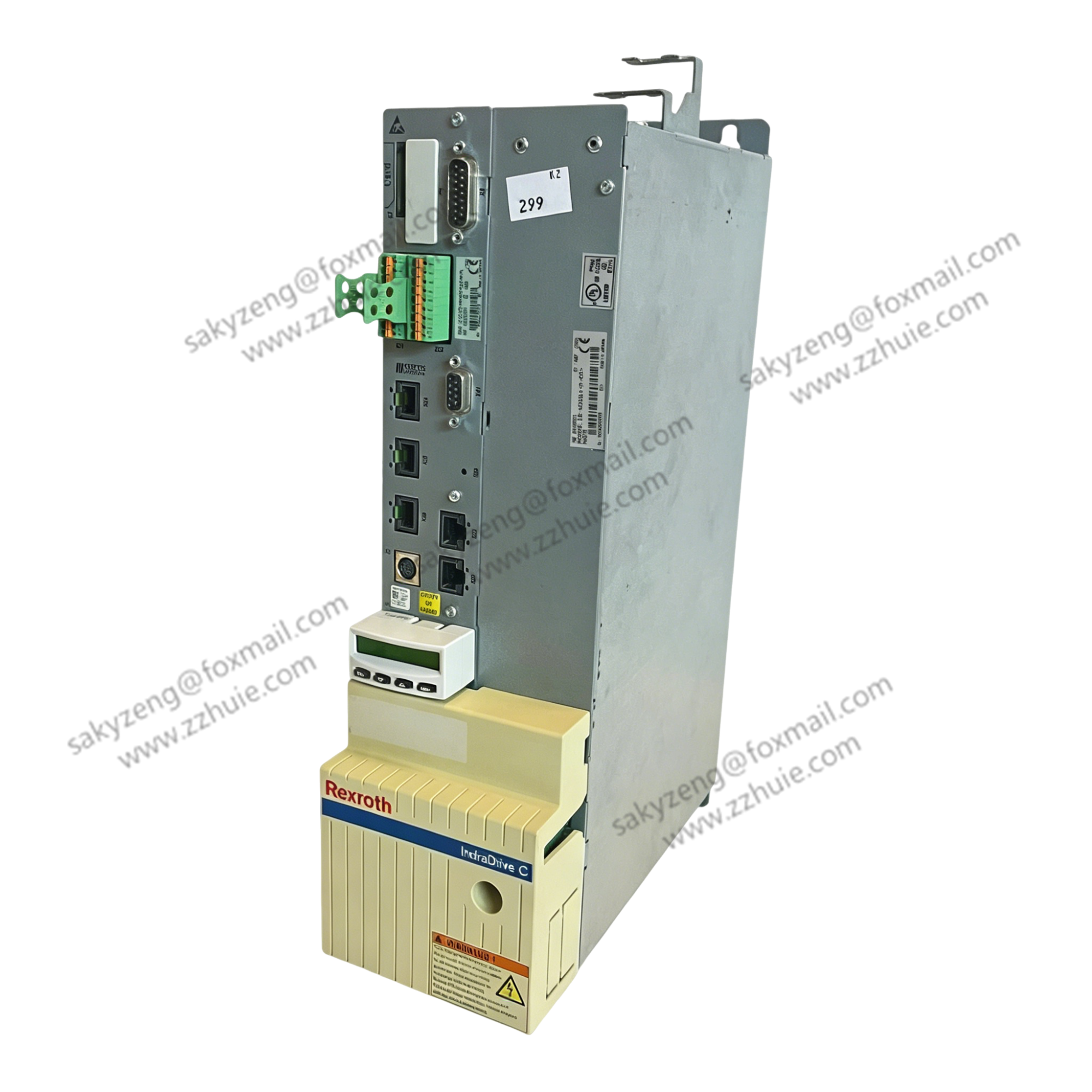

Rexroth HCS02.1E-W0054-A-03-NNNN IndraDrive C Integrated Single-Axis Servo Drive Controller

HCS02.1E-W0054-A-03-NNNN belongs to Rexroth IndraDrive C HCS02 compact servo drive family, an integrated design combining rectifier power supply,

DC bus link and servo inverter in one single unit. It executes closed-loop torque, speed and position control for Rexroth IndraDyn synchronous servo motors and asynchronous

spindle motors, receiving motion instructions from upper PLC or motion controller to realize high-precision positioning, speed regulation and tension control.

This model features built-in fan forced cooling design, supports common DC bus energy sharing for multi-axis system energy recovery and energy saving. It is compatible with multiple

mainstream encoder feedback signals and industrial fieldbus communication modules, realizing seamless networking with automation host systems. Equipped with comprehensive hardware

fault diagnosis and protection logic, it ensures stable operation under frequent acceleration/deceleration and heavy overload working conditions. Widely applied in CNC machine tools,

packaging machinery, printing winding equipment and automated production lines, it serves as critical maintenance replacement spare part for equipment overhaul, axis fault repair

and automation system retrofitting.

Technical Specifications

Full Part Number: HCS02.1E-W0054-A-03-NNNN

Material Code: R911298373

Manufacturer: Bosch Rexroth (Indramat), Origin: Germany

Product Series: IndraDrive C HCS02 Compact Servo Drive

Main Power Input: 3×AC 200~500V ±10%, 50/60Hz

Rated Input Current (380V): 20A

Control Power Supply: 24VDC ±20%, standby power ~23W

Output Continuous Current: 20.6A

Output Peak Current: 54A (1 second overload)

Continuous Power: 7kW (without line reactor); 10kW (with line reactor)

Peak Power: 12kW (without line reactor); 16kW (with line reactor)

Switching Frequency: Optional 4kHz / 8kHz / 12kHz / 16kHz

Max Output Frequency: Up to 1600Hz

Control Modes: Torque mode, speed mode, position mode, vector control / V/F optional

Encoder Interfaces: EnDat 2.2, Hiperface, Resolver, incremental encoder compatible

Communication Expansion: EtherCAT, Sercos III, PROFINET, CANopen, Profibus-DP optional card

Digital I/O: Built-in configurable multi-channel input & output terminals

Cooling Type: Internal integrated blower forced air cooling

Protection Functions: Overvoltage, undervoltage, overcurrent, overtemperature, motor overload, braking resistor overload, short-circuit protection

Safety Configuration: NNNN = No STO safety torque off function

Operating Temperature: 0℃ ~ +40℃

Storage Temperature: -20℃ ~ +80℃

Ambient Humidity: 5%–95% Non-Condensing

Protection Class: IP20 (cabinet internal installation)

Net Weight: Approx. 6.7kg

Commissioning Software: IndraWorks Engineering

Key Features

Integrated power supply + servo inverter all-in-one structure, simplifying cabinet wiring layout and reducing overall system space occupation.

4 times short-time overload capacity, excellent dynamic response performance, suitable for high-speed start-stop and frequent reciprocating motion working scenarios.

Multiple encoder feedback adaptation, high-position closed-loop precision, effectively guarantee repetitive positioning accuracy for high-end automation equipment.

Open fieldbus interface design, flexible matching with mainstream PLC brands to build centralized multi-axis motion control system.

Common DC bus parallel connection support, enabling regenerative energy mutual reuse between axes to lower power consumption and operating cost.

Complete multi-level fault detection mechanism, code-based fault alarm for fast on-site troubleshooting of overheating, communication loss, encoder abnormal failures.

Compact vertical modular design, convenient plug-in installation and direct replacement to shorten equipment maintenance downtime.

Parameter backup and cloning function via IndraWorks, fast commissioning after replacement to reduce debugging difficulty.
