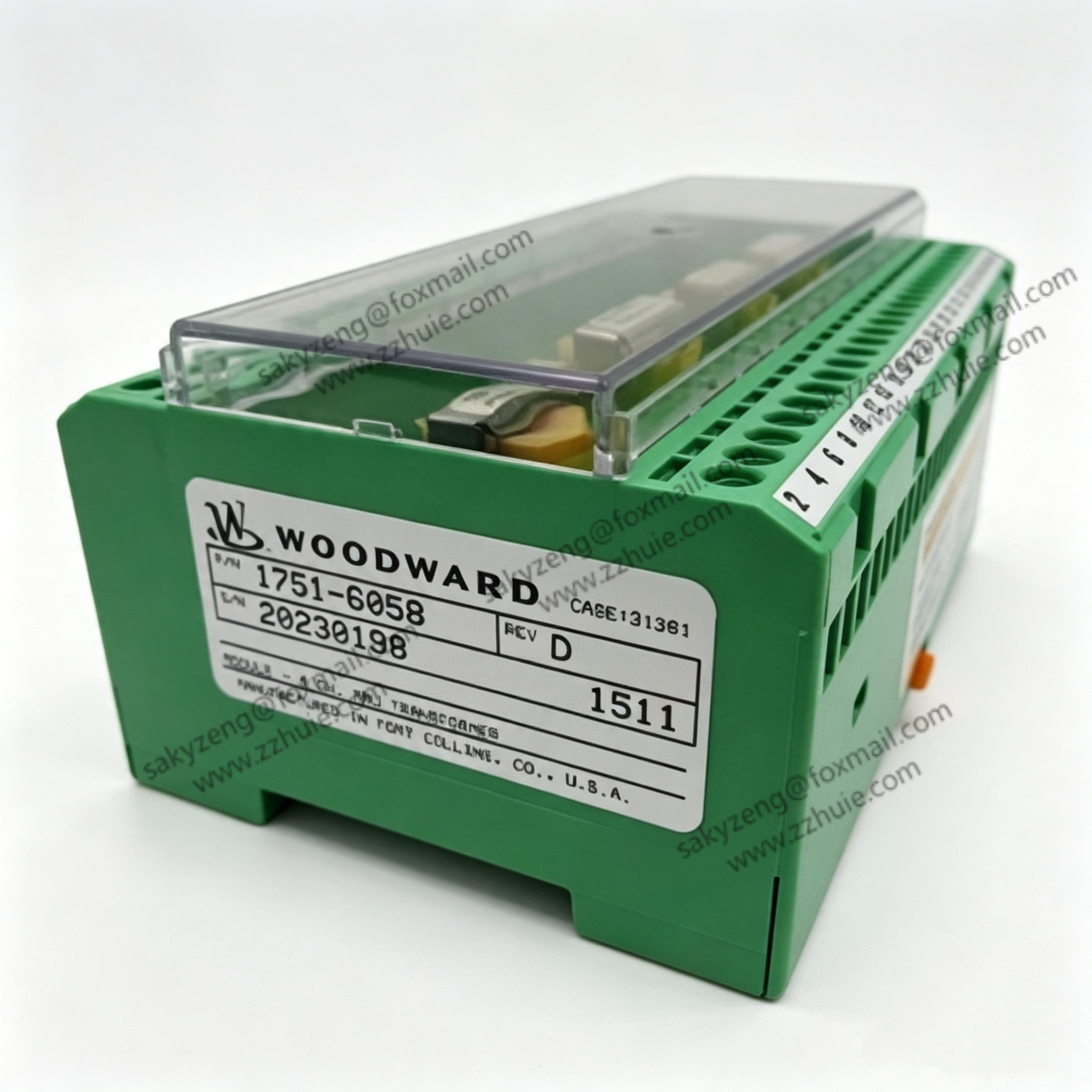

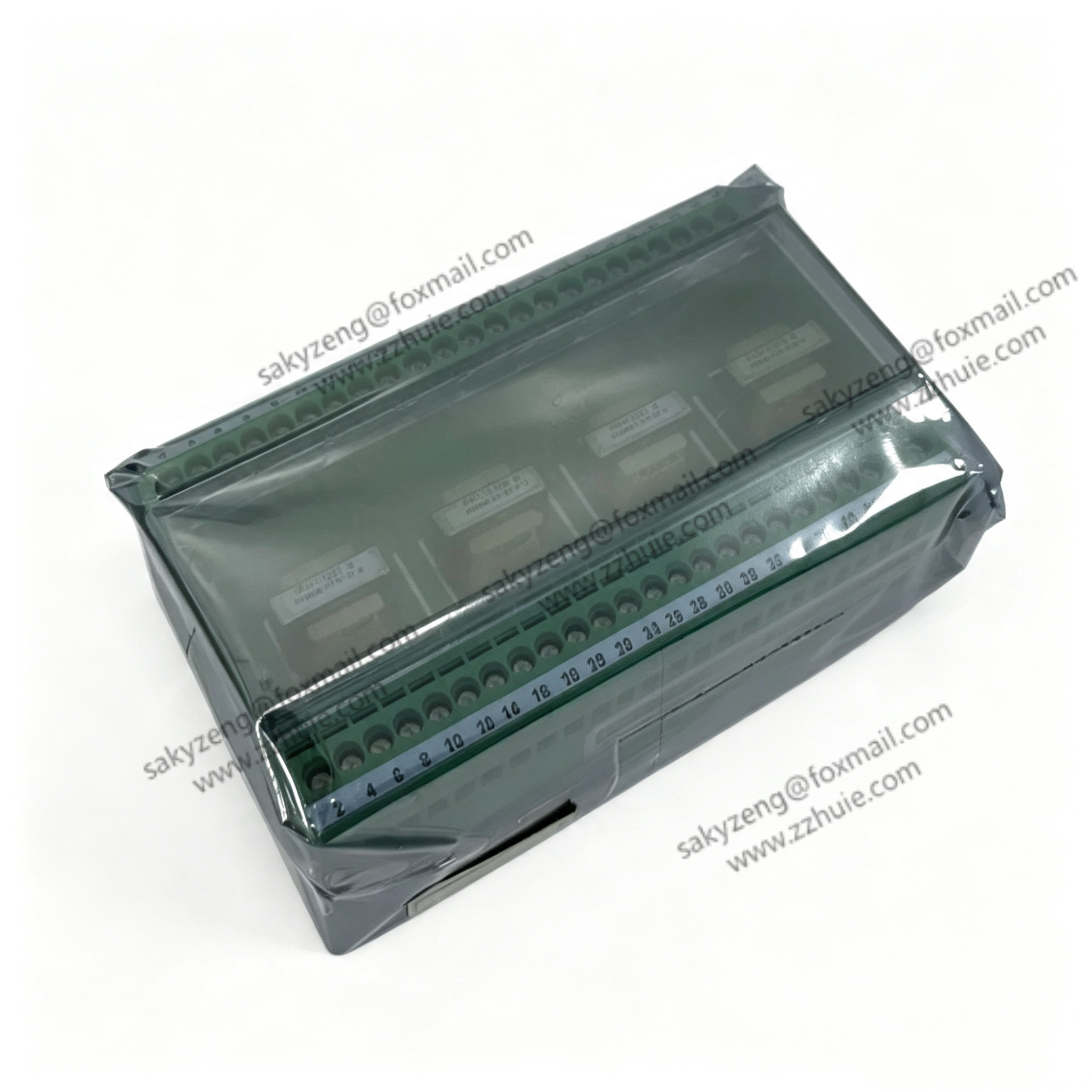

WOODWARD 1751-6058 4 Channel MPU Transformer Module

   Product DescriptionWOODWARD 1751-6058 is a 4-channel MPU speed signal conditioning module for Woodward turbine control systems. It receives pulse signals

from magnetic pickup sensors, completes signal isolation, amplification and waveform shaping, suppresses ground loop interference, and transmits standardized speed

signals to 505/505E controllers. Widely used in gas turbines, generator sets overspeed protection and multi-channel rotational speed monitoring.

Technical Specifications

• Model: 1751-6058
• Type: 4-Channel MPU Transformer Module
• Power Supply: 24VDC
• Input: 1.5Vac~50Vac MPU pulse signal
• Frequency Range: 0.1Hz~10kHz
• Isolation: 2500VAC channel-to-ground isolation
• Operating Temp: -40℃ ~ +70℃
• Mounting: Standard 3U rack mount
• Weight: Approx 3kg

• Four fully independent input channels without crosstalk
• Built-in surge and EMI protection, suitable for harsh power plant environment
• High speed signal response, less than 50 microseconds
• Compatible with Woodward 505, 505E, 2301 controllers

• Wide temperature design, stable for long-time continuous operation

•
