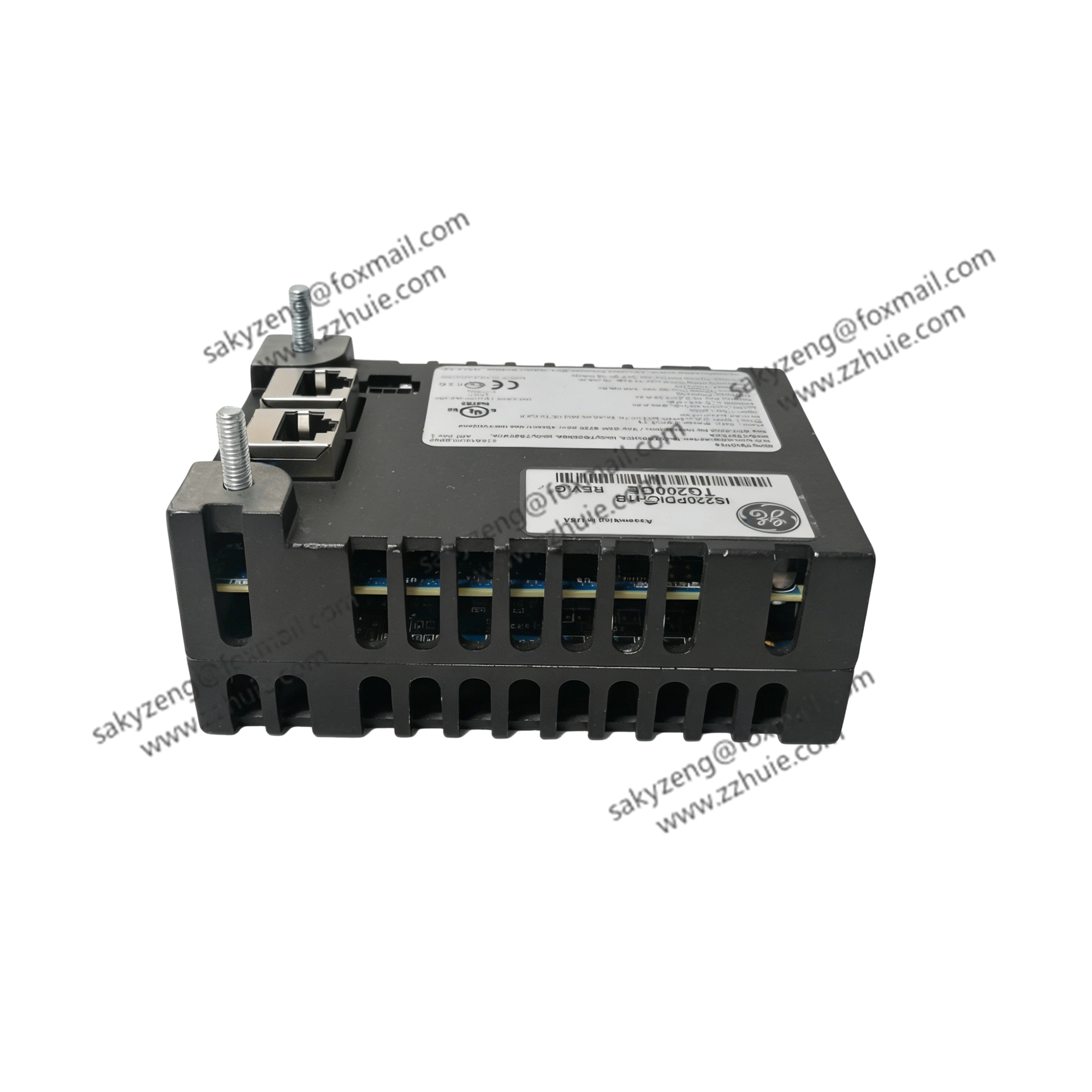

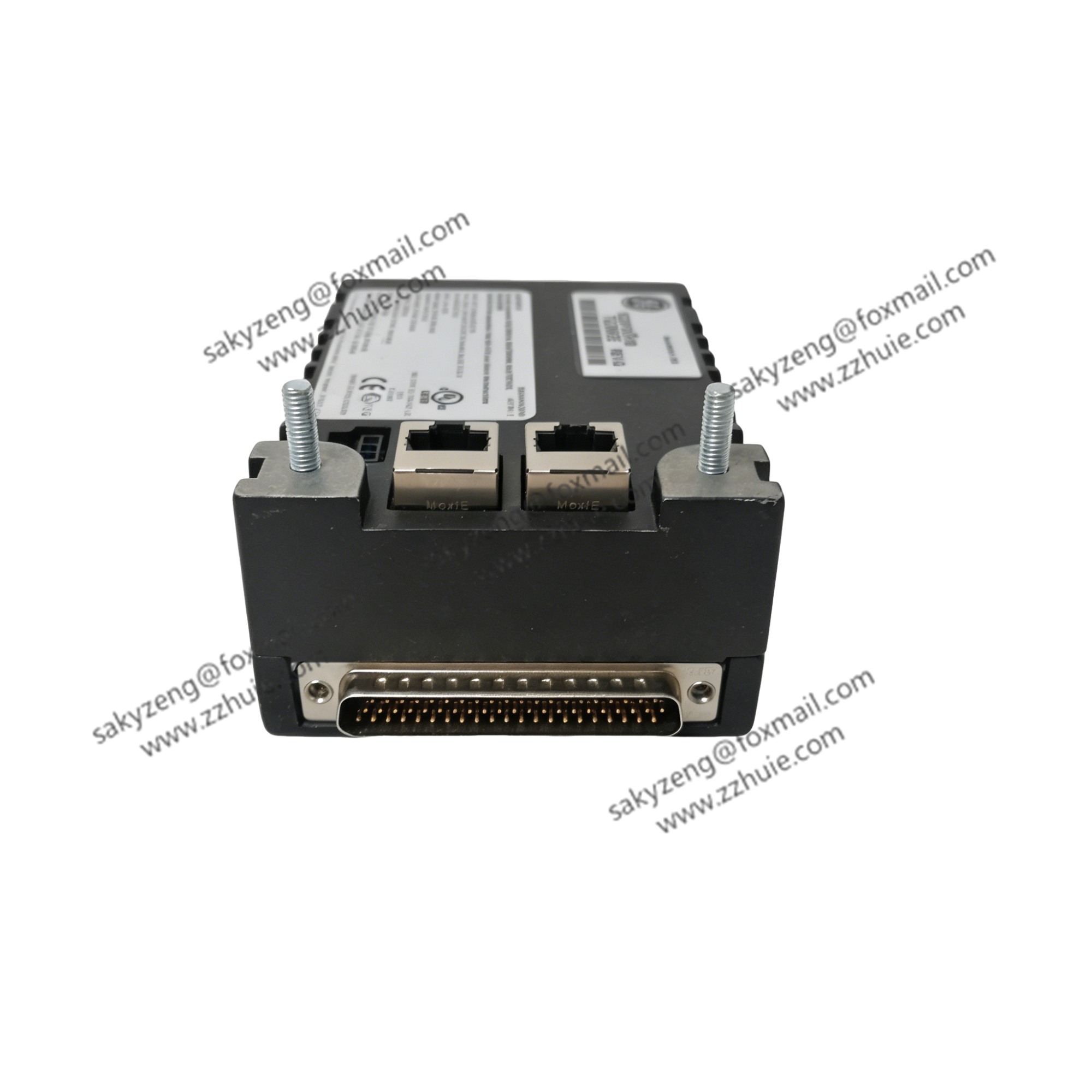

GE IS220PDIOH1B PDIO Discrete Input/Output Module

GE IS220PDIOH1B is a high-performance Parallel Distributed I/O (PDIO) module belonging to the GE Mark VIe Speedtronic turbine control system.

It serves as a core discrete I/O pack for collecting digital input signals and driving discrete output devices in gas, steam, and wind turbine control applications.

Equipped with a local processor and dual Ethernet ports, it provides reliable data acquisition and communication for power generation, oil & gas,

 and heavy industrial processes. The module is approved for hazardous locations and works with terminal boards (e.g., ISx0yTDBSH2A, ISx0yTDBTH8A) to expand I/O capacity.

Technical Specifications

Part Number: IS220PDIOH1B

Manufacturer: General Electric (GE)

Series: Mark VIe Speedtronic

Type: PDIO Discrete I/O Module

Digital Inputs: 24 contact inputs

Digital Outputs: 12 Type C mechanical relays

Signal Type: 24 VDC discrete

Response Time: <1 ms

Isolation Voltage: 1500 VAC

Power Supply: 28 VDC nominal (27.4–32 VDC range)

Communication: Dual Ethernet ports (redundant)

Local Processor: Integrated

Operating Temperature: -40°C to +70°C

Humidity: 5–95% non-condensing

Protection Class: IP20

Dimensions: 120 × 80 × 40 mm (W×H×D)

Weight: Approx. 0.32 kg

Certification: CE, UL, RoHS, Hazardous Location Approved
