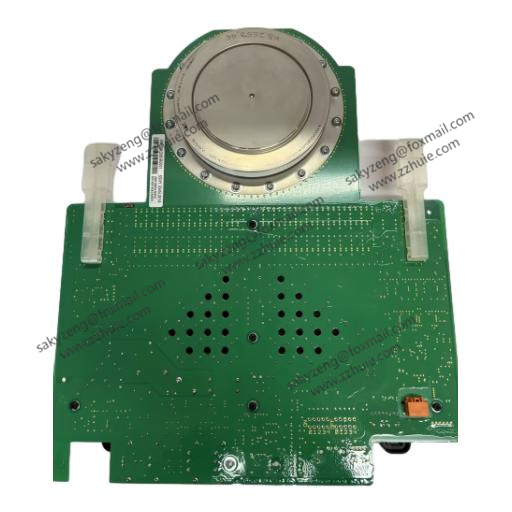

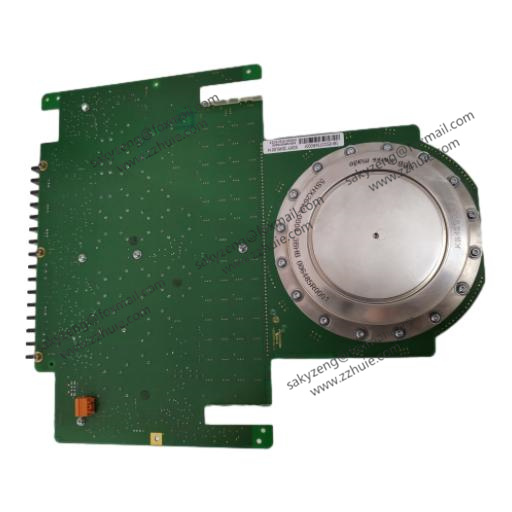

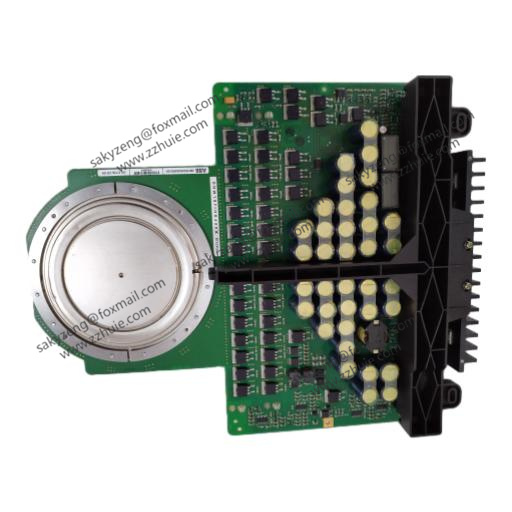

ABB 5SHY3545L0014 3BHB013085R0001 IGCT thyristor high-voltage module

• 5SHY3545L0014: A standalone IGCT module optimized for high-current, high-voltage environments.
• 3BHB013085R0001: A variant of the 5SHY3545L0009 IGCT module, often sold as part of a kit with additional control components (e.g., optical interfaces or cooling systems) .

Core Functions and Technical Features

1. Power Handling Capabilities
• Water-cooled design (3BHB013085R0001) ensures optimal heat dissipation, maintaining <85°C junction temperature under full load .
• Low on-state voltage (<1.5 V) reduces energy waste in long-term operations .
• Both modules support 4.5 kV DC link voltage, with 5SHY3545L0014 rated for 3,600 A continuous current and 3BHB013085R0001 for 3,500 A .
• Designed for fast switching speeds (up to 10 kHz) to minimize power losses in dynamic applications like wind turbine converters .
• High Voltage and Current Ratings:
• Efficiency and Thermal Management:
2. Hardware Design and Reliability
• Press-fit terminals for secure connections and easy maintenance.
• Compatibility with ABB’s Unidrive M and ACS800 drive platforms .
• 5SHY3545L0014 features IP20-rated housing for indoor use, while 3BHB013085R0001 offers IP67 protection (with optional connectors) for harsh outdoor environments .
• Resistant to vibration (5-500 Hz, 20g) and shock (100g, 11 ms) per IEC 60068-2-6/29 standards .
• Industrial-Grade Protection:
• Mechanical Interface:
3. Control and Integration
• Built-in overcurrent/overvoltage protection with fault reporting via LED indicators .
• Supports PWM control and active front-end (AFE) configurations for grid synchronization .
• 3BHB013085R0001 includes fiber-optic interfaces for galvanic isolation and noise-free control signals, critical for grid-connected applications .
• Optical Triggering System:
• Diagnostic Capabilities:

Technical Specifications Table

Key Design Features

1. Grid Integration
• Both modules are certified for utility-scale applications, supporting grid code compliance (e.g., low-voltage ride-through) in renewable energy systems .
• 3BHB013085R0001 includes phase-locked loop (PLL) functionality for seamless synchronization with AC grids .
2. Long Lifecycle Support
• ABB guarantees 10 years of spare parts availability for legacy IGCT modules, with refurbished units available through authorized distributors lik
• 5SHY3545L0014 is backward-compatible with earlier ABB drive platforms (e.g., DCS800) .
3. Safety and Compliance
• Dual-channel redundancy in control interfaces for SIL 2-rated safety systems .
• Compliant with IEC 61800-5-1 (variable-speed drives) and IEEE 1547 (distributed energy resources) .
