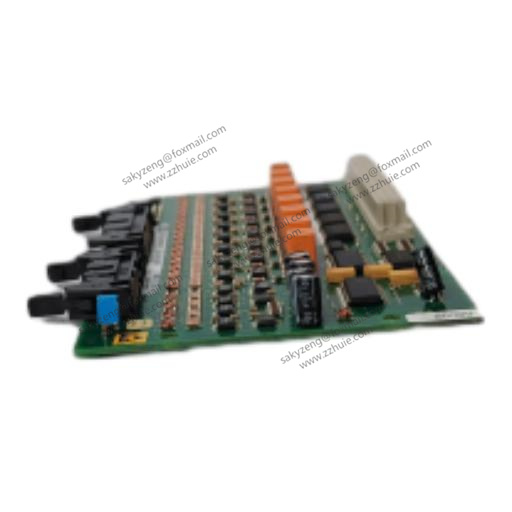

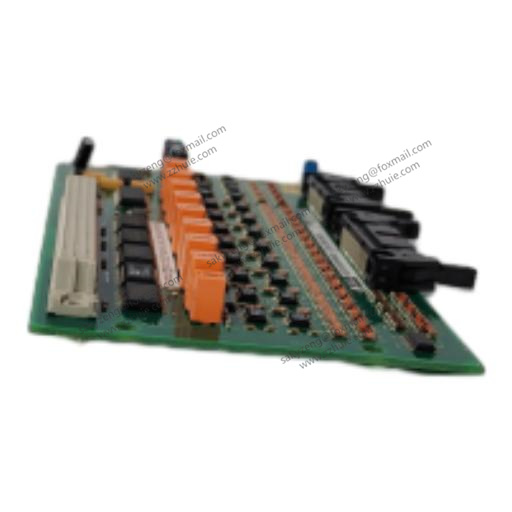

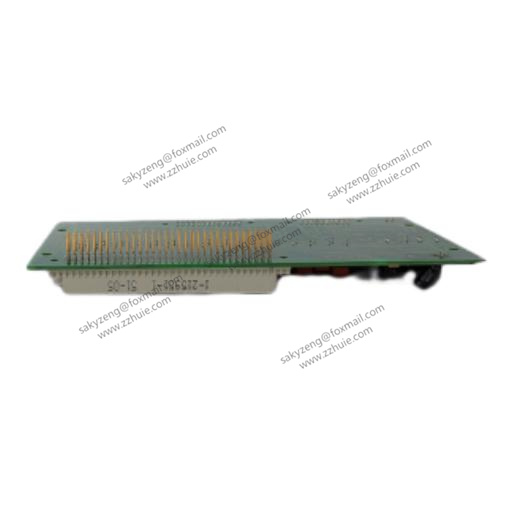

ABB UAC383AE01 HIEE300890R0001​ Industrial Control Motherboard

Core Functions and Technical Specifications

Functional Positioning

Key Technical Parameters

Key Features

1. Rugged Industrial Design
• Built with extended temperature tolerance (-20°C to +60°C) and shock/vibration resistance, ensuring reliability in extreme conditions like steel mills or chemical plants 3.
• Conformally coated PCB to protect against dust, moisture, and corrosive gases.
2. Flexible Communication
• RS-485 interface supports Modbus RTU protocol for seamless integration with sensors, actuators, and HMIs.
• Optional Ethernet connectivity via add-on modules for cloud-based monitoring or SCADA systems 3.
3. Modular Expansion
• Supports hot-swappable I/O modules (e.g., digital/analog inputs/outputs) for scalable system configurations.
• Multiple expansion slots for custom peripherals (e.g., CAN bus, Profibus adapters).
4. Real-Time Processing
• 10 MIPS processing speed enables fast execution of control algorithms (e.g., PID loops, motion control).
• Built-in watchdog timer ensures system stability during power fluctuations or software errors.
5. Easy Integration
• Compatible with ABB’s Automation Builder software for ladder logic programming and system diagnostics.
• Standard DIN rail mounting for quick installation in control panels 3.
