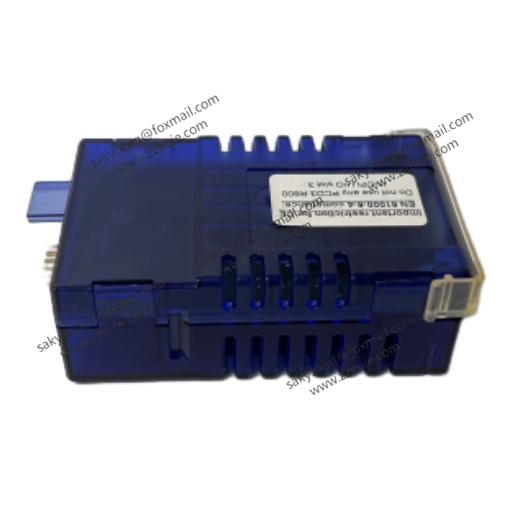

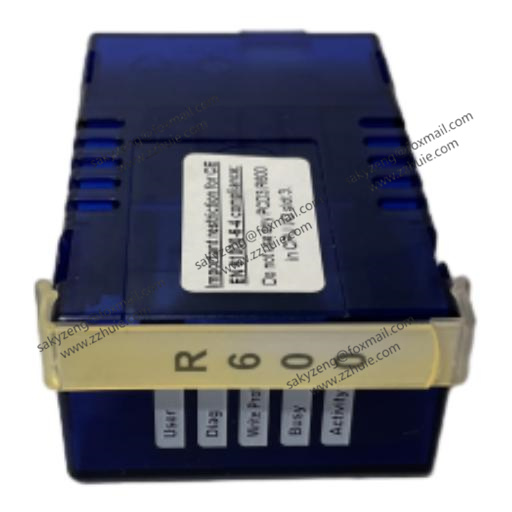

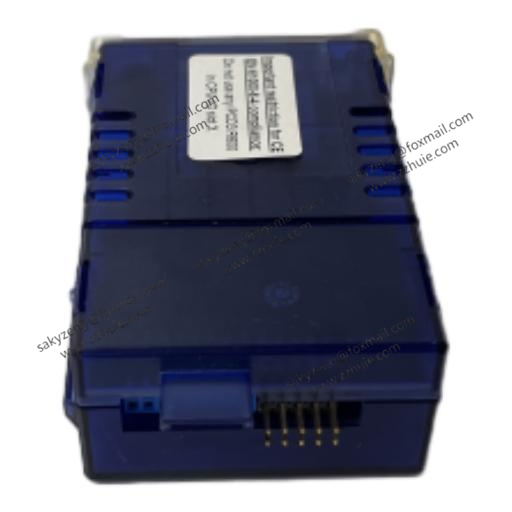

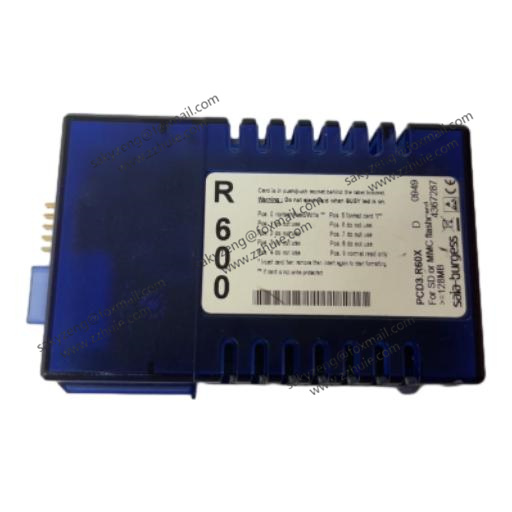

SAIA PCD3.R60X is a programmable logic controller (PLC) designed for industrial automation, belonging to SAIA-Burgess Controls’ PCD3 series. It serves as a modular control platform for complex industrial processes, combining high processing power with flexible connectivity. The -R60X suffix denotes a factory-configured variant optimized for multi-protocol communication and scalable I/O integration
The PCD3.R60X acts as the central processing unit (CPU) for industrial control systems, enabling real-time monitoring and automation. Key functionalities include:
Programmable Logic Control:
- Multi-Language Support: Compatible with IEC 61131-3 standard languages (Ladder Logic, Function Block Diagram, Structured Text) and high-level languages like C/Pascal
- Real-Time Processing: 12-bit analog signal processing and 200ns instruction cycle for precise motion control and data acquisition.
Communication & Integration:
- Dual Ethernet Ports: Supports PROFINET, Modbus TCP, and EtherNet/IP for seamless integration with PLCs, HMIs, and cloud systems
- RS485 Interface: Enables legacy system compatibility via MODBUS RTU or PROFIBUS DP .
Modular Expansion:
- I/O Flexibility: Supports up to 1024 I/O points through plug-and-play modules (e.g., analog/digital I/O, temperature sensors, motion control cards)
- Memory Expansion: Optional SD card slot for program backup and data logging
Safety & Reliability:
- IP20 Protection: Dust-resistant design for 控制柜内使用 .
- Network Security: Encrypted communication and access control mechanisms for IoT/Industry 4.0 applications .
| Parameter | Typical Value |
|---|
| Input Voltage | 24V DC (±10%) with reverse polarity protection |
| Memory | 2MB Flash (program) + 1MB RAM (data) |
| Communication | Ethernet (PROFINET/Modbus TCP), RS485 (MODBUS RTU/PROFIBUS DP) |
| Programming Languages | IEC 61131-3 (LAD/FBD/ST), C, Pascal |
| Operating Temperature | -20°C to 60°C |
| Enclosure Rating | IP20 (indoor use) |
| Dimensions | 120 mm × 90 mm × 62 mm |
| Weight | ~0.5 kg |
| Expansion Slots | 4 slots for I/O modules |
The PCD3.R60X is widely used in industries requiring high precision and scalability:
Process Automation
- Food & Beverage: Batch control for pasteurization and filling lines.
- Chemical Industry: Real-time monitoring of reactor temperatures and pressures.
Building Automation
- HVAC Systems: Energy-efficient control of heating, ventilation, and air conditioning.
- Lighting Management: Integration with IoT sensors for occupancy-based lighting optimization.
Energy Management
- Solar/Wind Farms: Grid synchronization and predictive maintenance for renewable energy systems.
- Microgrids: Coordination of distributed energy resources (DERs) .
Machine Tools
- CNC Machining: Motion control for multi-axis milling machines.
- Robotics Integration: Communication with collaborative robots (cobots) via PROFINET .
![]()
