GE

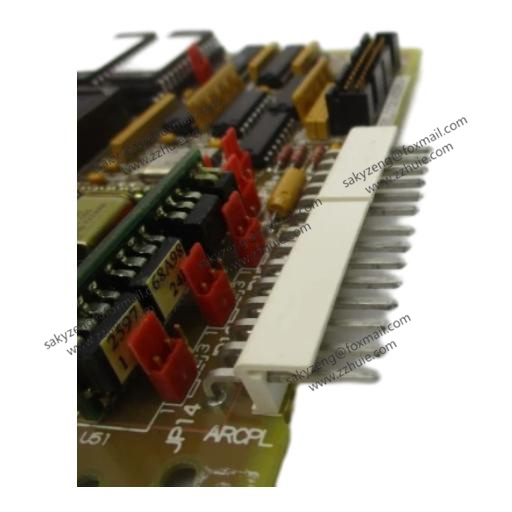

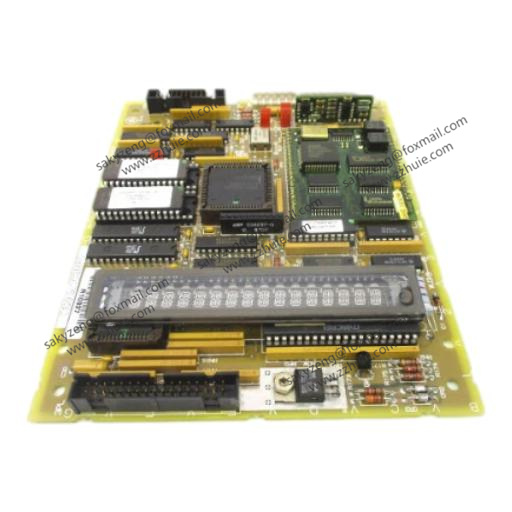

GE DS200SLCCG1AEF | LAN communication card for control system

Brand: GE

Model: GE DS200SLCCG1AEF | LAN communication card for control system

Origin: Switzerland

Warranty: 365 days

Quality: new/second-hand

Delivery method: express delivery

Telephone ：+86 18020721390

WeChat：+86 18020721390Email：sakyzeng@foxmail.com

product details

GE DS200SLCCG1AEF is a product of General Electric (GE), with the full name LAN Communication Card for Mark V Speedtronic Control System. The following is a detailed description based on official technical documents and industry data:

1. Core Function and Positioning

It is a dedicated network interface card designed for GE’s Mark V Speedtronic control system, which is widely used in gas turbine and steam turbine control applications. As a critical communication component, it enables data transmission between the turbine control system and external devices (e.g., HMI, SCADA systems, or other control modules) via a local area network (LAN), facilitating real-time monitoring, parameter configuration, and system diagnostics in industrial power and energy applications.

2. Key Parameters from Product Data Sheet

Hardware Specifications

Parameter Category	Typical Value/Description
Network Standard	Complies with IEEE 802.3 Ethernet standard, supporting 10 Mbps data transfer rate.
Interface Type	1× RJ-45 connector for Ethernet connectivity; integrated isolation circuits for enhanced noise immunity.
Processor & Memory	Embedded LAN Control Processor (LCP); on-board buffer memory for data caching; dual-port RAM for communication with external drive control processors.
Power Requirements	Low power consumption (<5W); typically powered by the Mark V system backplane (voltage compliant with system specifications).
Physical Characteristics	Dimensions: Approximately 120mm × 80mm × 15mm (length × width × height); weight ~50g; designed for backplane mounting in Mark V control cabinets.
Environmental Adaptability	Operating temperature: 0°C to 70°C; storage temperature: -40°C to 85°C; relative humidity: 5% to 95% (non-condensing); resistant to industrial EMI (electromagnetic interference).

Functional Features

Protocol Support: Compatible with standard Ethernet protocols for seamless integration with industrial networks; supports basic network management functions.
Dual-Port RAM: Enables high-speed data exchange between the LAN Control Processor (LCP) and external drive control components, ensuring real-time responsiveness.
Diagnostic Capabilities: Equipped with error code storage and accessible via a 16-character alphanumeric keypad, facilitating on-site troubleshooting and system status checks.
Isolation Protection: Includes isolated and non-isolated circuits for communication with drives or exciters, enhancing system reliability in harsh industrial environments.

label： DS200SLCCG1AEF

Previous : GE DS200SDCIG1AGB | Digital signal processing board

Next : GE DS200STBAG1 | Basic driver terminal board
