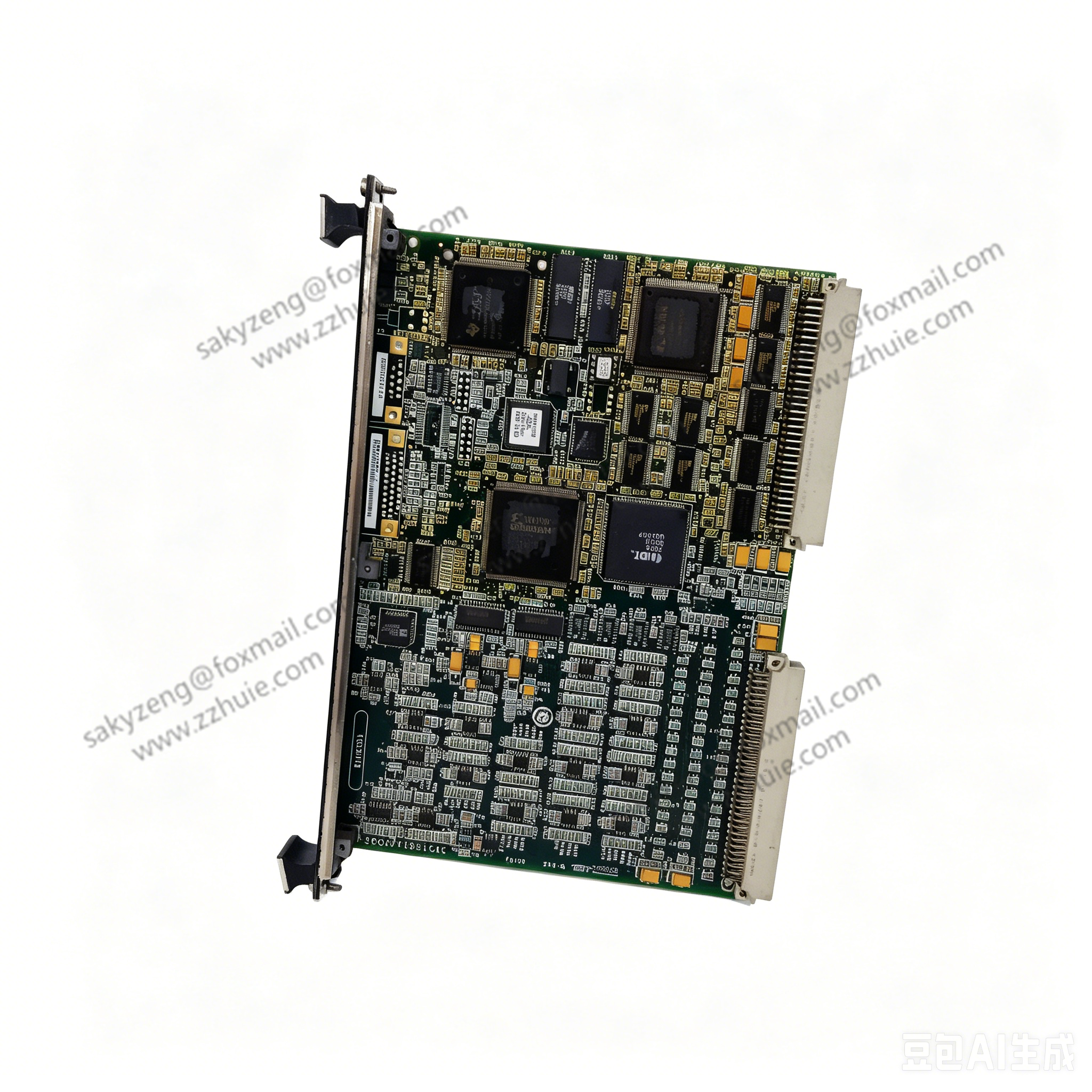

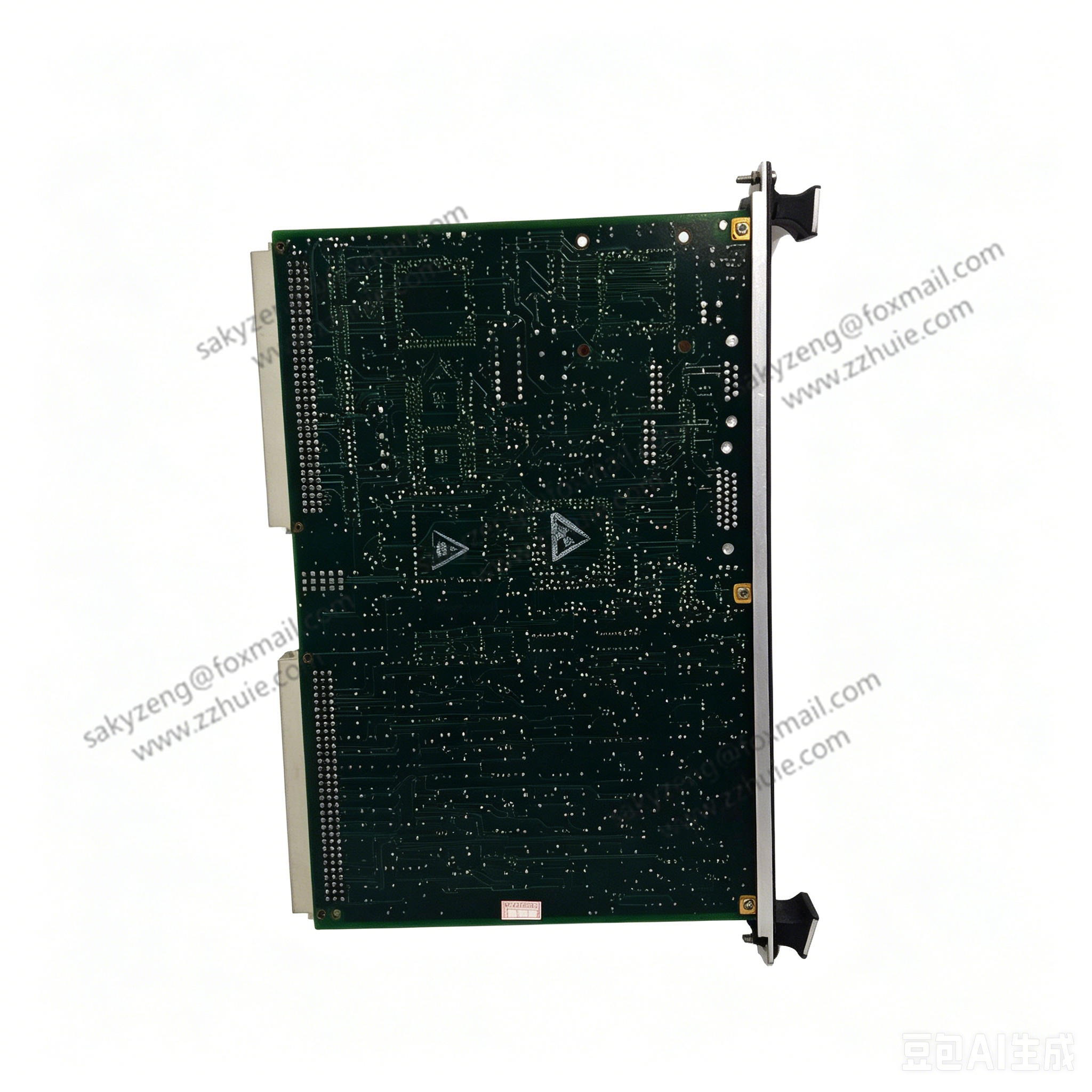

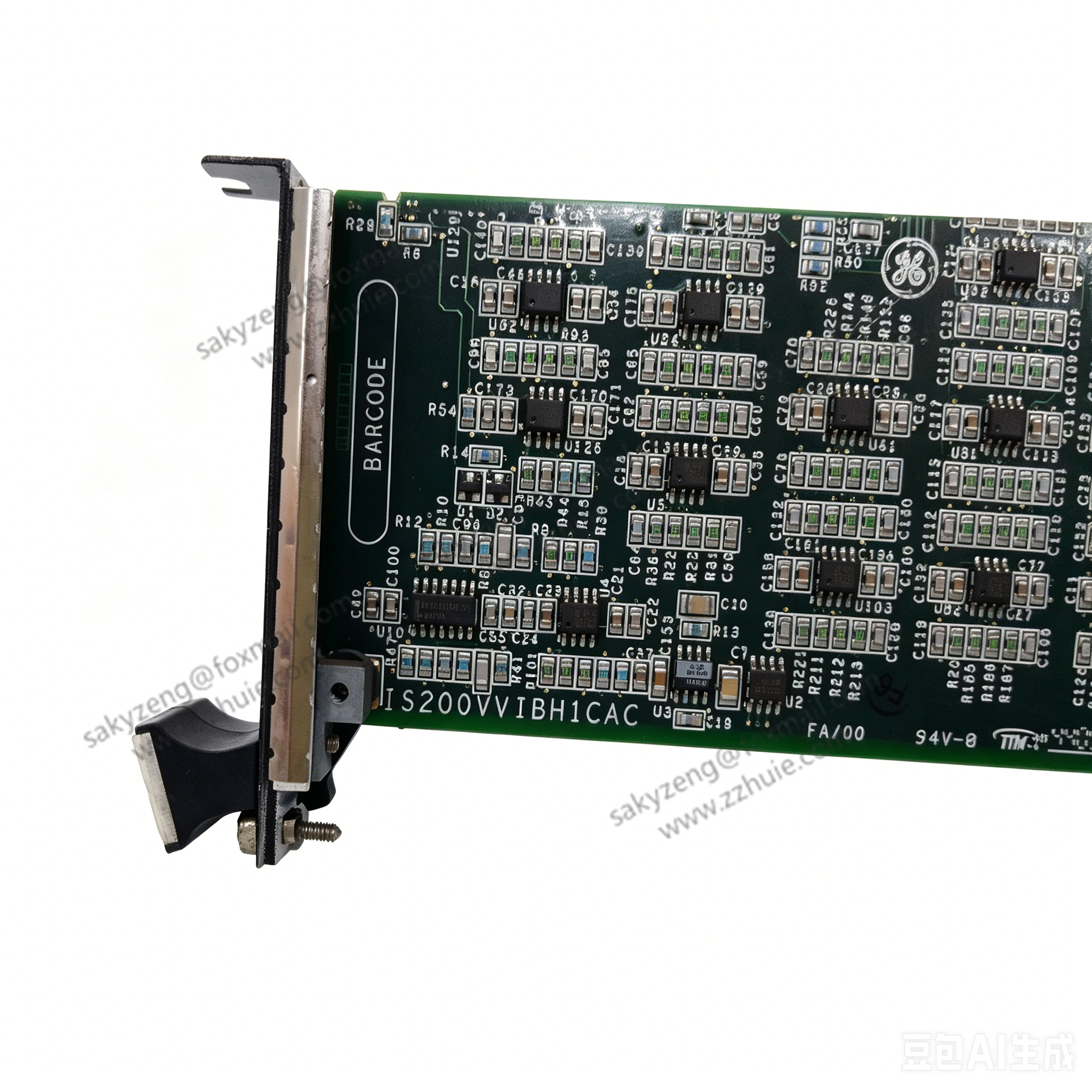

GE VVIB-H1C IS200VVIBH1CAC VVIB Vibration Monitoring Input Board

GE IS200VVIBH1CAC is a revised version vibration signal acquisition processing board under GE IS200 series, specially configured for GE Speedtronic Mark VI turbine control system.

It receives analog signals from vibration probes via DVIB or TVIB terminal boards, completes signal filtering, conditioning and high-precision analog-to-digital conversion,

then transmits processed vibration data to main controller through VME backplane bus. It monitors casing vibration, rotor eccentricity, differential expansion and axial displacement,

 realizes turbine over-vibration interlock protection and equipment condition monitoring, serving as core safety spare part for gas & steam turbine unit maintenance.

Technical Specifications

Part Number: IS200VVIBH1CAC

Manufacturer: General Electric (GE)

Functional Code: VVIB

Supported Sensors: Max 14 channels for Proximitor, Velomitor, Accelerometer probes

Matching Terminal Board: DVIB, TVIB signal terminal board

Communication: VME backplane bus

Onboard Indicator: RUN, FAULT, STATUS diagnostic LEDs

Power Supply: 24VDC

Operating Temperature: -20°C ~ +65°C

Humidity: 5%–95% non-condensing

Protection Grade: IP20

Net Weight: Approx. 0.85 kg

Certification: CE, UL, RoHS

Origin: USA

Key Features

Multi-channel acquisition design supporting up to 14 vibration probes for comprehensive turbine mechanical status real-time monitoring.

Built-in isolation and filtering circuit suppresses field electromagnetic interference and improves measurement stability & precision.

Compatible with mainstream Bently Nevada series vibration sensors with strong universal adaptability.

Supports simplex and TMR triple modular redundant configuration to meet high safety requirements of critical turbine protection loops.

Standard VME plug-in structure, backward compatible with IS200VVIBH1C, direct plug-and-play replacement to shorten maintenance downtime.
