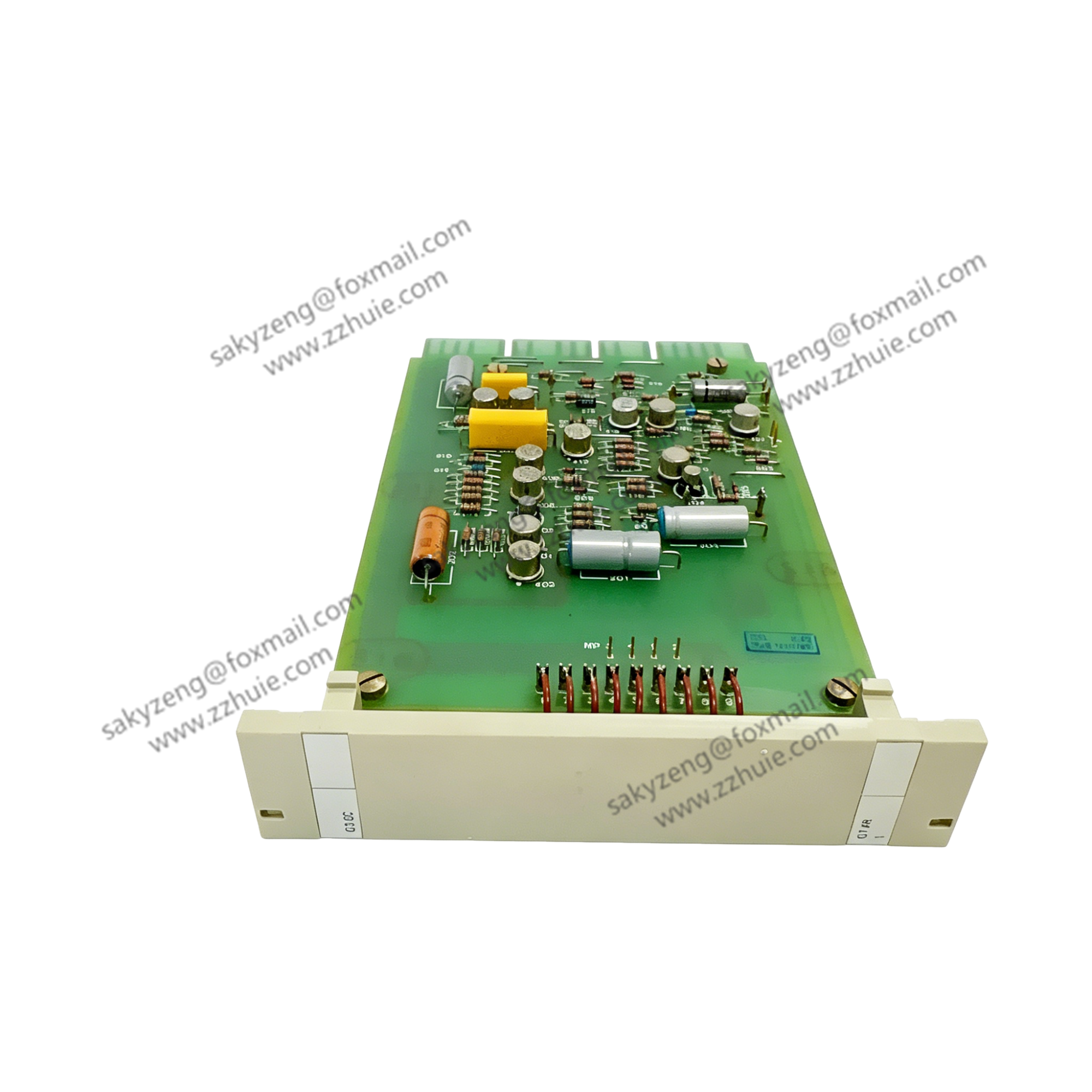

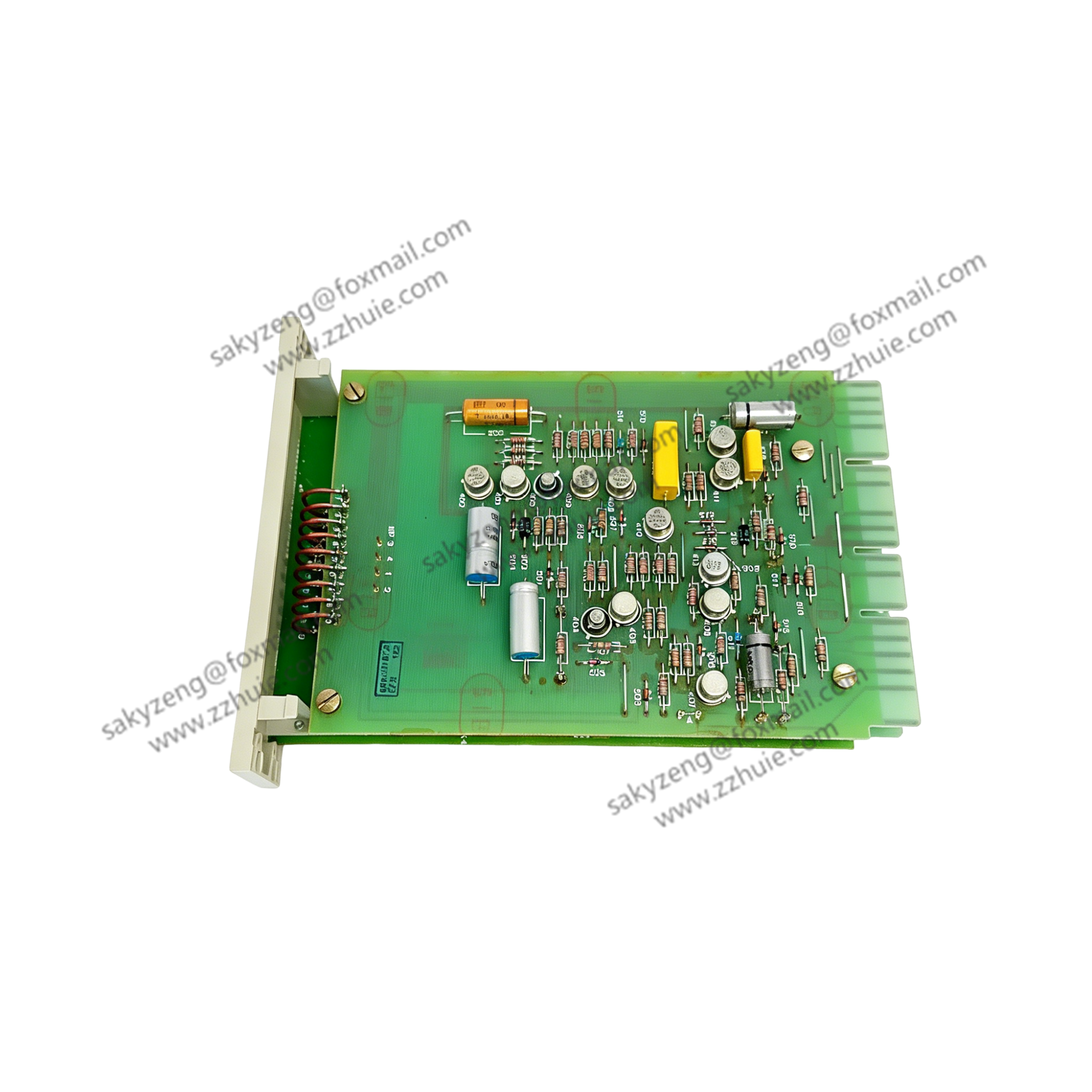

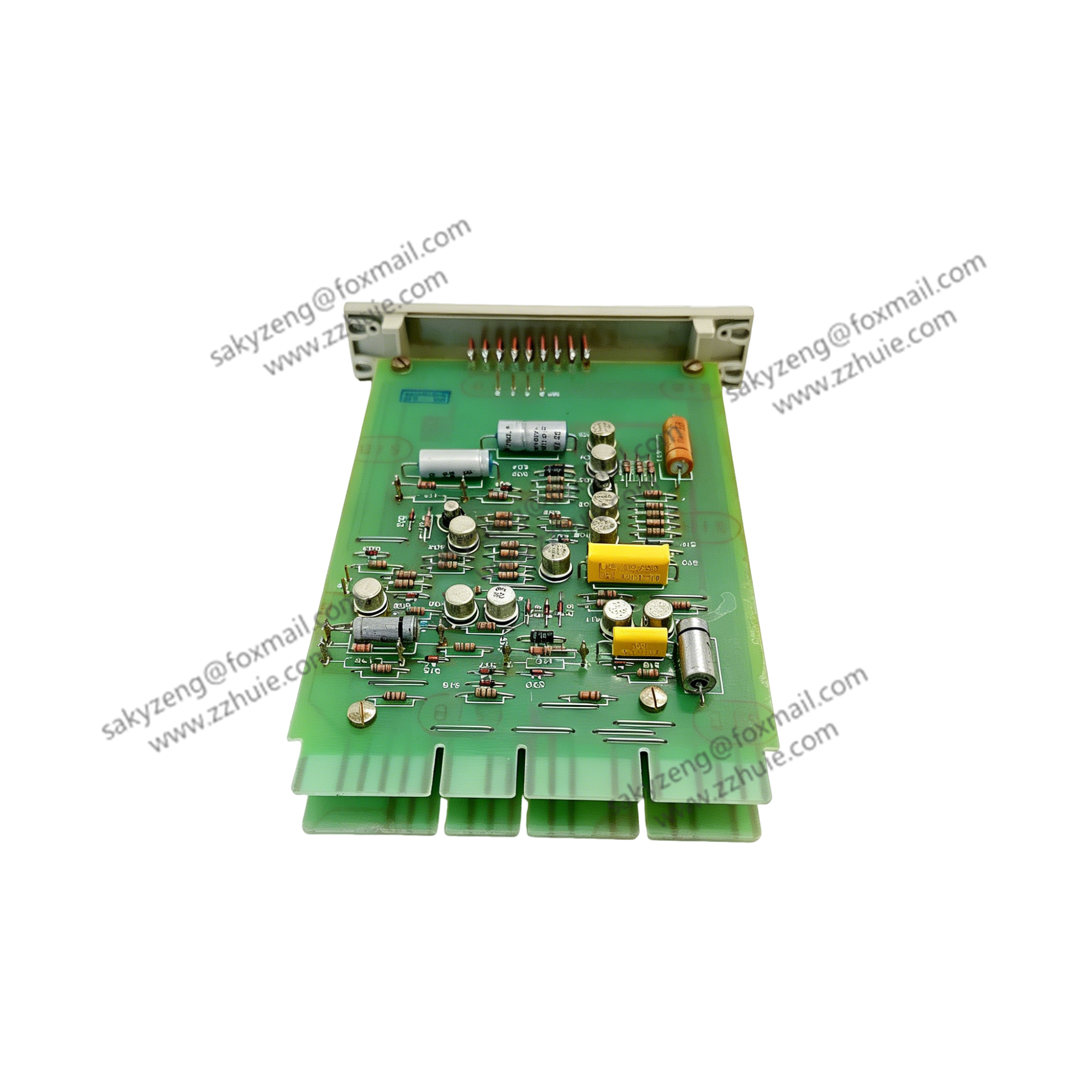

ABB G3EA HENF315754R1 Excitation Regulation Control Circuit Board

ABB G3EA HENF315754R1 is a dedicated analog conditioning & excitation regulation plug-in board for ABB rotating machine excitation systems

and medium voltage converter units. It collects generator rotor current, voltage feedback signals, completes signal amplification, filtering, comparison and error amplification processing,

outputs regulation command to thyristor rectifier bridge, automatically adjusts excitation current to stabilize generator terminal voltage and reactive power output.

It also integrates over-excitation, under-excitation, overvoltage fault detection logic, sending alarm interlock signals to main control unit once abnormal state occurs.

It is a core spare part for overhaul and troubleshooting of thermal power, hydropower generator excitation cabinets and large variable frequency drive equipment.

Technical Specifications

Part Number: G3EA / HENF315754R1

Manufacturer: ABB

Type: Excitation Regulation Signal Processing Board

Core Function: Excitation closed-loop regulation, feedback signal conditioning, excitation fault monitoring

Power Supply: Cabinet internal auxiliary DC power supply

Signal Processing: AC/DC sampling, error amplification, analog comparison loop

Installation: Standard rack plug-in card structure

Operating Temperature: -20°C ~ +60°C

Humidity: 5%–95% non-condensing

Protection Grade: IP20 (cabinet internal installation)

Net Weight: Approx. 0.26 kg

Origin: Sweden

Certification: CE, UL, RoHS

Key Features

Professional closed-loop excitation regulating circuit design, fast response to stabilize generator output voltage against load fluctuation.

Built-in multi-layer EMI suppression circuit, stable signal operation under strong electromagnetic environment inside excitation cabinet.

Integrated excitation abnormal detection circuit for overexcitation, underexcitation and overvoltage protection interlock.

Standard plug-in structure, direct plug-and-play replacement, no wiring modification, shorten unit maintenance downtime.

Conformal coated PCB design, shock and vibration resistant, suitable for long-term continuous operation in power station harsh environment.
