Brand: ABB

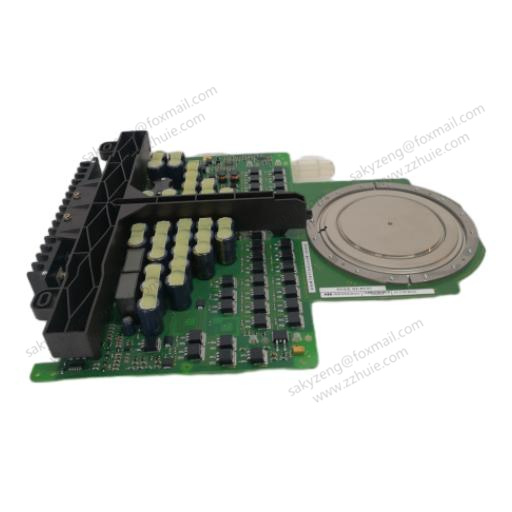

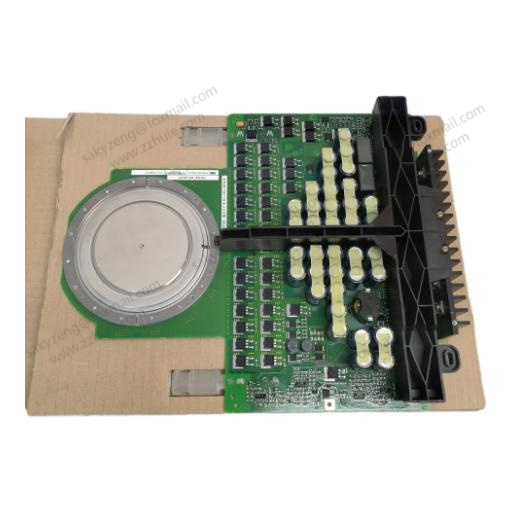

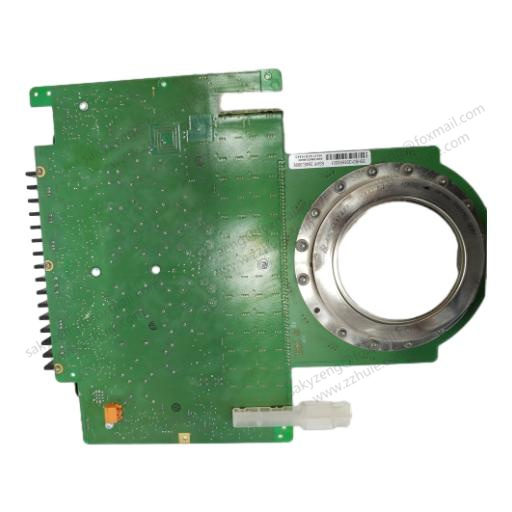

Model: ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101 IGCT
Origin: Switzerland
Warranty: 365 days
Quality: new/second-hand
Delivery method: express delivery
product details
Model: ABB 5SHY3545L0009 (Material No.: 3BHB013085R0001) | Type: High-Voltage Inverter IGCT Module | Brand: ABB | Origin: Imported (Switzerland/Germany). Core
Function: Serve as a core power switching component in high-voltage inverter systems, realizing reliable conversion and control of electrical energy, ensuring stable and efficient
operation of high-voltage drive equipment.
Technical Parameters | Specific Specifications |
Core Electrical Parameters | IGCT (Integrated Gate Commutated Thyristor) type; Rated voltage and current meet industrial high-voltage inverter standard requirements (match ABB high-voltage drive system specifications) |
Operating Characteristics | Fast switching speed, low on-state voltage drop, strong current carrying capacity; Support frequent on-off operation, adapting to dynamic load adjustment needs of high-voltage drives |
Environment & Working Conditions | Operating temperature -25℃~+70℃, humidity 5%-95%RH (non-condensing); Excellent anti-electromagnetic interference performance, suitable for high-voltage industrial environments |
Physical Specifications | Standard high-voltage power module package; Compatible with ABB standard high-voltage inverter mounting dimensions; Weight matches the corresponding inverter system configuration |
Core Features | 1. High reliability: Adopts ABB advanced IGCT technology and high-quality industrial materials, passing strict environmental stress screening tests; 2. Perfect compatibility: Tailor-made for ABB high-voltage inverter systems, ensuring seamless matching with the whole machine; 3. Efficient energy conversion: Low power loss, improving the overall energy efficiency of the inverter system; 4. Strong environmental adaptability: Resistant to high temperature, humidity and strong electromagnetic interference, stable operation in harsh industrial sites |
Adaptation Scope: System-compatible with ABB high-voltage inverter series (matching the whole machine design specifications); Perfectly adapted to the power circuit of
high-voltage drive systems, compatible with other supporting power components of ABB inverters.Application Scenarios: Widely used in high-voltage drive systems of process
industries such as power generation, petrochemical, metallurgy and steel; Suitable for high-voltage motor drive scenarios such as water pumps, fans, compressors and conveyors,
providing core power support for energy-saving transformation and efficient operation of industrial equipment.Procurement & Usage Notes: 1. Full model (5SHY3545L0009) and
material number (3BHB013085R0001) must be specified for procurement to ensure matching with the inverter system model; 2. Installation shall be performed by professional
technicians familiar with ABB high-voltage inverter systems, strictly following the manufacturer's installation specifications, ensuring reliable insulation and correct wiring; 3.
Anti-static and high-voltage protection measures must be taken during installation and replacement to prevent component damage and safety accidents; 4. Warranty & Supply: 12-month original factory warranty, spot goods available from domestic authorized channels with 1-3 days delivery, providing professional technical consultation and after-sales maintenance
services.Brief Introduction: ABB 5SHY3545L0009 (3BHB013085R0001) is a dedicated high-voltage inverter IGCT module, featuring high reliability, perfect compatibility and
efficient energy conversion, which is a core component to ensure the stable and efficient operation of ABB high-voltage drive systems. Warranty: 12 Months.
