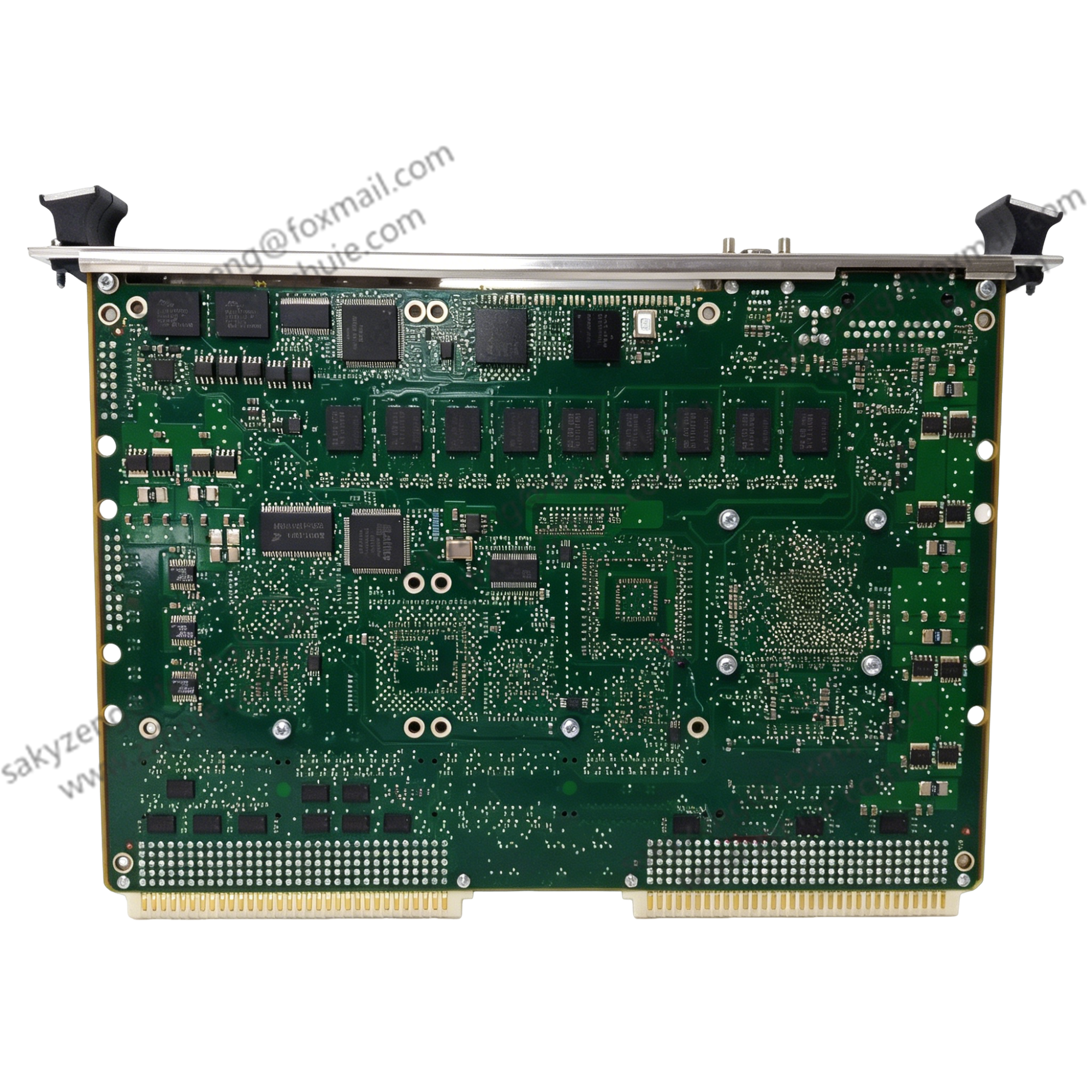

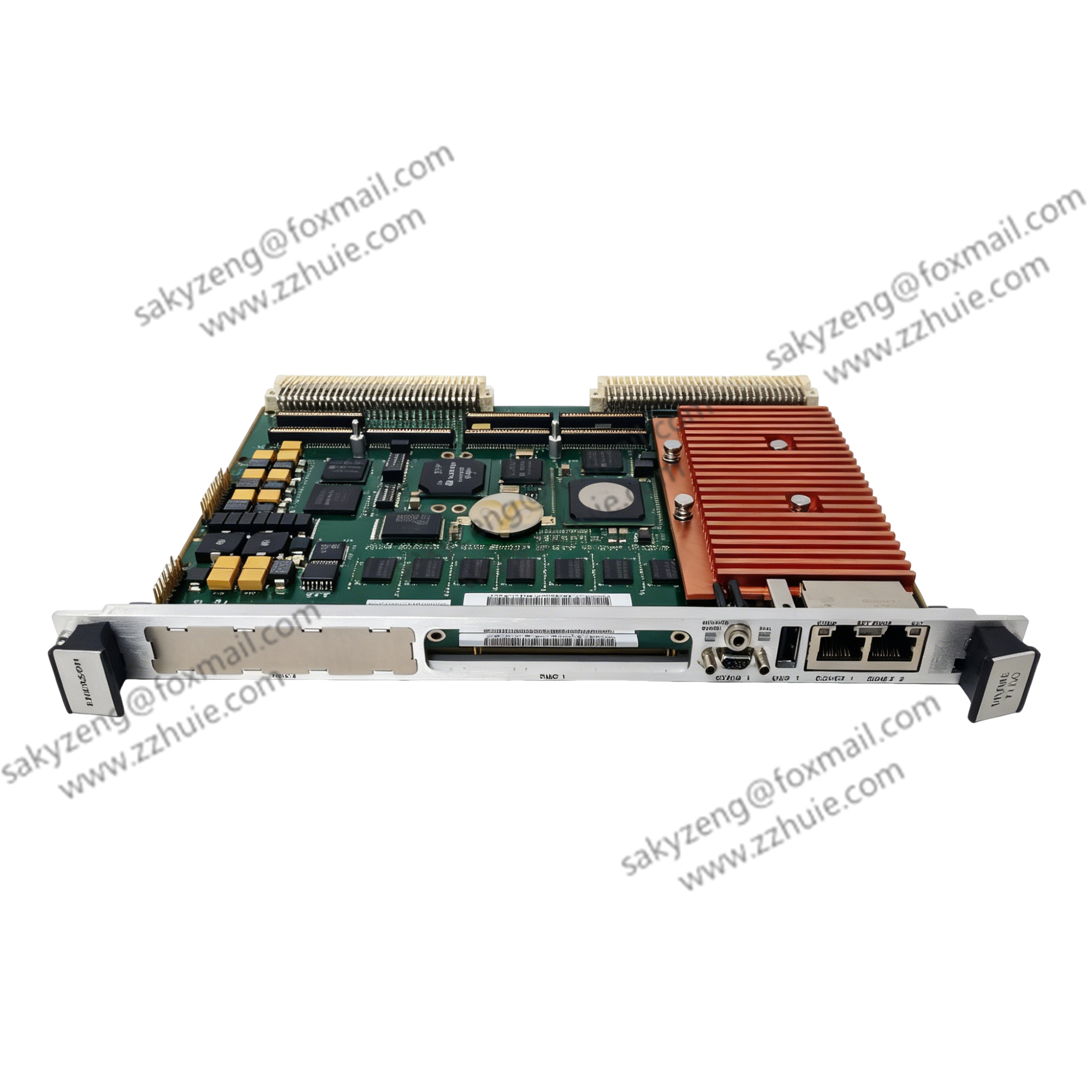

Motorola MVME7100 6U VMEbus High Performance Single Board Computer (SBC)

Motorola MVME7100 is a high-end VME architecture mainboard developed by Motorola Computer Group, later acquired by Emerson Artesyn. It is a dual-core

PowerPC-based master controller for VME rack systems, responsible for system logic operation, field I/O data acquisition, VME bus scheduling,

multi-channel network data interaction and real-time task computation.

Equipped with a Tsi148 bridge chip supporting high-speed 2eSST VME transmission, it is fully backward compatible with legacy VME64/VME32 architectures.

It can work with the rear transition module MVME7216E for rear-panel I/O wiring layout. Featuring ECC error-correcting memory and large onboard flash storage,

it supports real-time operating systems including VxWorks, embedded Linux and LynxOS. It serves as a core replacement spare part for renovation and maintenance of legacy

VME-based systems in thermal & nuclear power DCS, SIS emergency shutdown systems, aerospace & military equipment, shipborne measurement & control devices and large test platforms.

3. Technical Specifications

Part Number: MVME7100 (Sub-models: MVME7100-0171, MVME7100-0173, etc.)

Manufacturer: Motorola / Emerson Artesyn

Processor: NXP MPC8640D (1.06GHz) / MPC8641D (1.3GHz), Dual PowerPC e600 Cores

Cache: 32KB Instruction L1 + 32KB Data L1 per core, 1MB Independent L2 Cache per core

System Memory: Up to 2GB DDR2 ECC Memory

Onboard Storage: 128MB NOR Flash; Optional 2GB/4GB/8GB NAND Flash

VME Bus Controller: Tundra Tsi148 Bridge, supports VME64x, 2eSST protocol, max bandwidth 320MB/s

Network Interfaces: Four 10/100/1000 Gigabit Ethernet Ports

Serial Interfaces: Multi-channel configurable RS232/422/485 Serial Ports

Peripherals: USB 2.0, SATA Interface, Hardware Watchdog Timer, RTC Real-Time Clock

Expansion: Dual PMC-X Expansion Slots, 8-lane PCIe Expansion Interface

Matched Rear Transition Module: MVME7216E

Operating Temperature: Commercial version: -20℃ ~ +50℃; Rugged wide-temperature version: -40℃ ~ +71℃

Humidity: 5%–95% Non-Condensing

Dimension: Standard 6U VME Card Form Factor

Net Weight: Approx. 0.7kg

Origin: USA

Certification: CE, UL; Conformal coating option for military-grade rugged applications

4. Key Features

Dual-core PowerPC high-performance architecture with ECC memory correction, designed for long-term continuous stable operation in safety-critical systems.

2eSST high-speed VME bus, fully backward compatible with legacy MVME3100, MVME6100 and other models, enabling system upgrade without rack replacement.

Four Gigabit Ethernet ports plus abundant serial peripherals to meet requirements of multi-device networking, redundant communication and multi-loop data acquisition.

Dual PMC-X expansion slots for flexible installation of auxiliary sub-modules such as fiber communication boards, analog acquisition cards and synchronous clock modules.

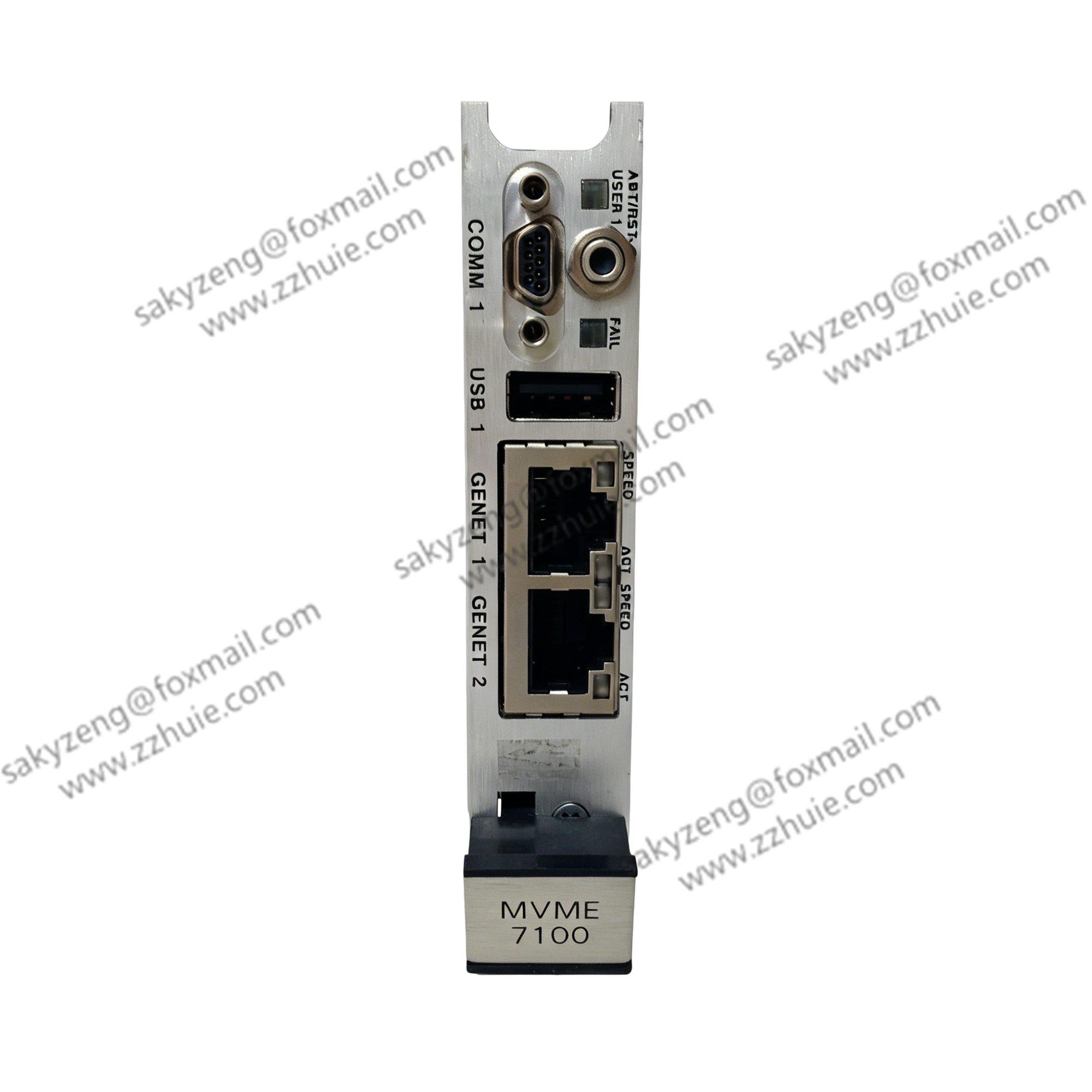

Front-panel LED indicators for power, running status, fault alarm and Ethernet link status, facilitating on-site rapid troubleshooting of system crash, communication interruption and boot failures.
