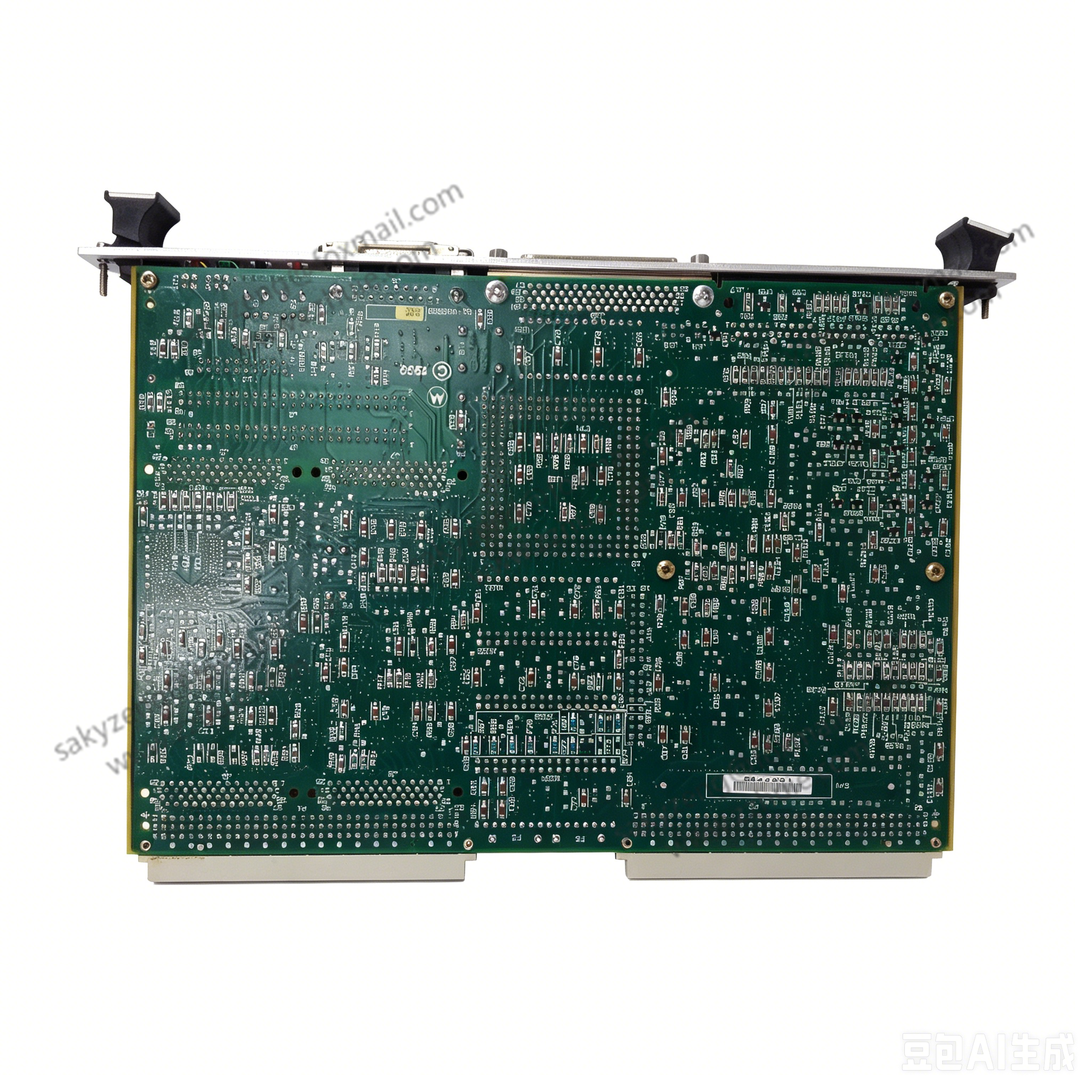

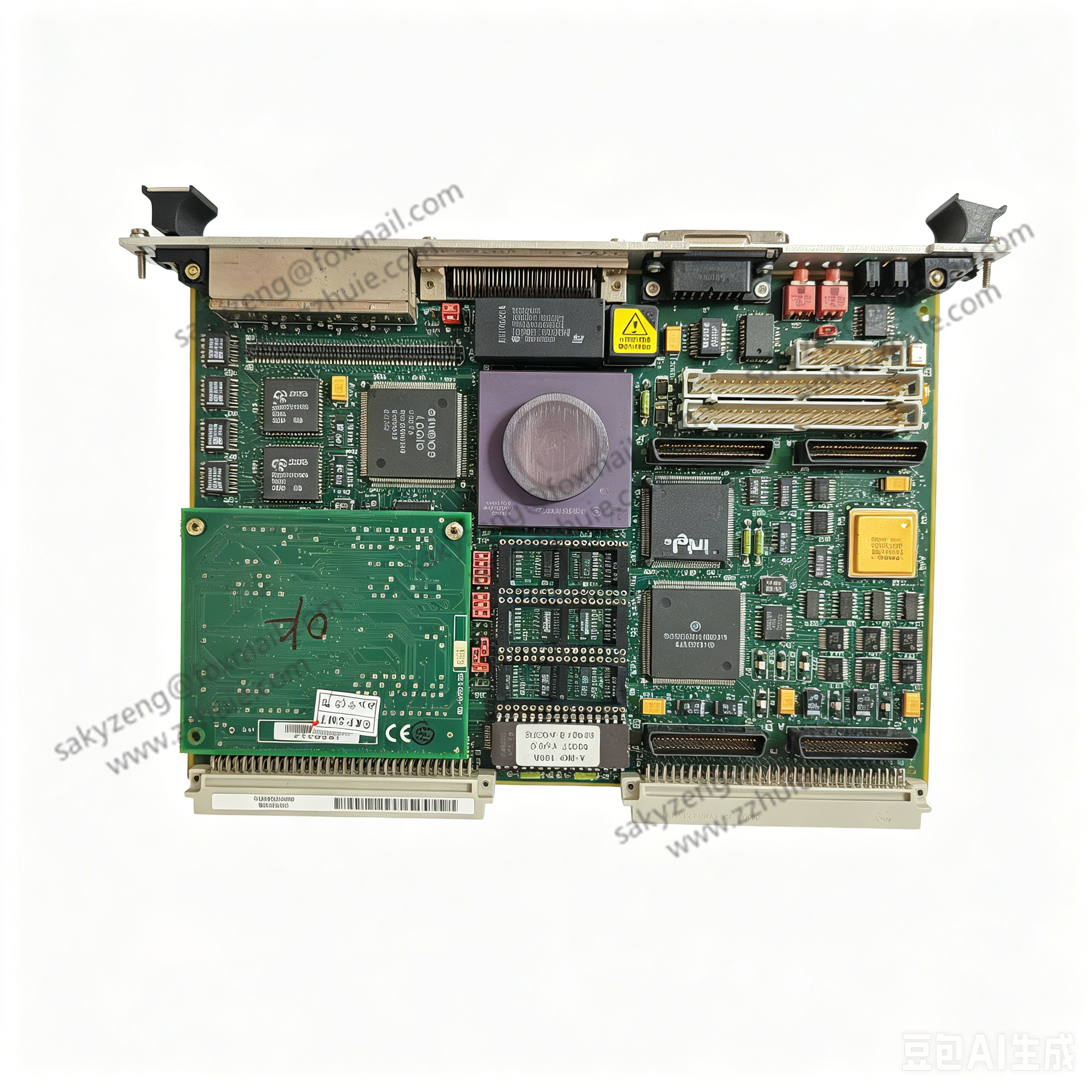

Motorola MVME162-213 Double-High 6U VMEbus Single Board Computer (SBC)

Motorola MVME162-213 is a classic double-height VME single-board computer originally developed by Motorola Embedded Division, later inherited by Emerson Embedded Systems.

It serves as the master CPU controller for legacy VME rack-based industrial control systems, executing real-time logic calculation, field I/O data acquisition, VME bus arbitration,

peripheral communication scheduling and closed-loop control algorithm operation.

This board adopts Motorola MC68040 / MC68LC040 32-bit microprocessor architecture, equipped with parity-protected DRAM, battery-backed SRAM and TOD real-time clock to

prevent configuration data loss after power failure. Integrated abundant serial, Ethernet and SCSI peripheral interfaces, it supports IndustryPack expansion modules for flexible function

expansion. Widely deployed on early-generation gas/steam turbine control systems, power plant DCS, offshore platform control cabinets and aerospace test equipment, it is a core maintenance

replacement spare part for overhaul and troubleshooting of aging VME architecture control systems worldwide.

Technical Specifications

Part Number: MVME162-213

Manufacturer: Motorola / Emerson

Form Factor: Double-High 6U VME Card

Processor: 25MHz MC68LC040 (without FPU) / optional MC68040 (integrated FPU, MMU, 8KB internal cache)

System Memory: 8MB parity-protected DRAM (configurable 1MB/4MB/8MB)

Non-Volatile Memory: 512KB battery-backed SRAM; onboard Flash for firmware storage

Real-Time Clock: Battery-backed TOD time-of-day clock

VME Bus Interface: Supports A16/A24/A32 address space, D8/D16/D32 data width, configurable as VME system controller

Communication Interfaces

2× Serial Ports: EIA-232-D + configurable EIA-232-D/EIA-530

Optional DMA-driven 10Mbps Ethernet LAN interface

Optional DMA SCSI-2 storage interface

Expansion: 4× IndustryPack (IP) expansion slots

Timing Function: 6 programmable tick timers + hardware watchdog timer

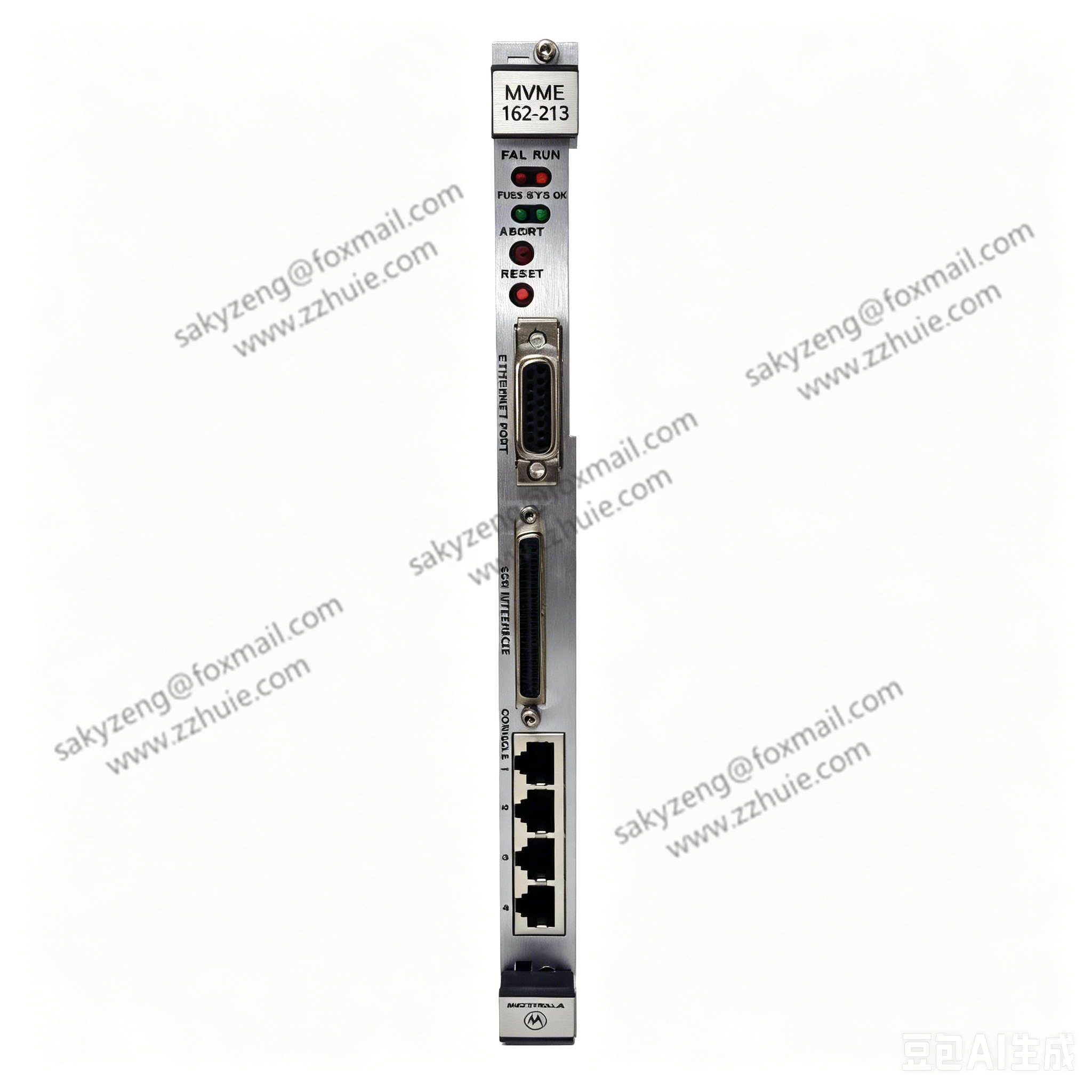

Front Panel Indicators: RUN, FAULT, LAN, SCSI, VME status LEDs, RESET & ABORT push buttons

Power Input: +5V, +12V, -12VDC supplied via VME backplane

Operating Temperature: 0℃ ~ +60℃

Humidity: 5%–95% Non-Condensing

PCB Treatment: Optional conformal coating for anti-vibration & EMI resistance

Net Weight: Approx. 0.75kg

Origin: USA

Supported OS: VxWorks, LynxOS, OS-9, pSOS+, VRTX-32, BSD embedded systems

Key Features

Mature 68040 real-time processor architecture, stable long-term operation matching early turbine & DCS control logic requirements.

Parity memory detection + battery-backed SRAM design, effectively avoiding program & parameter corruption caused by power fluctuation.

Complete VME master/slave controller function, realizing bus management and high-speed data interaction between multi-card racks.

Rich native communication ports + IndustryPack expansion capability, convenient for analog/digital I/O, communication and signal conditioning module expansion.

Front-panel LED diagnosis & manual reset buttons, facilitating on-site rapid fault positioning for system crash and communication failure.

Industrial ruggedized PCB design, anti-shock, anti-vibration and anti-interference performance adapting harsh control room environment.

Full compatibility with legacy MVME162 series variants, direct plug-and-play replacement for system maintenance without rack modification.
