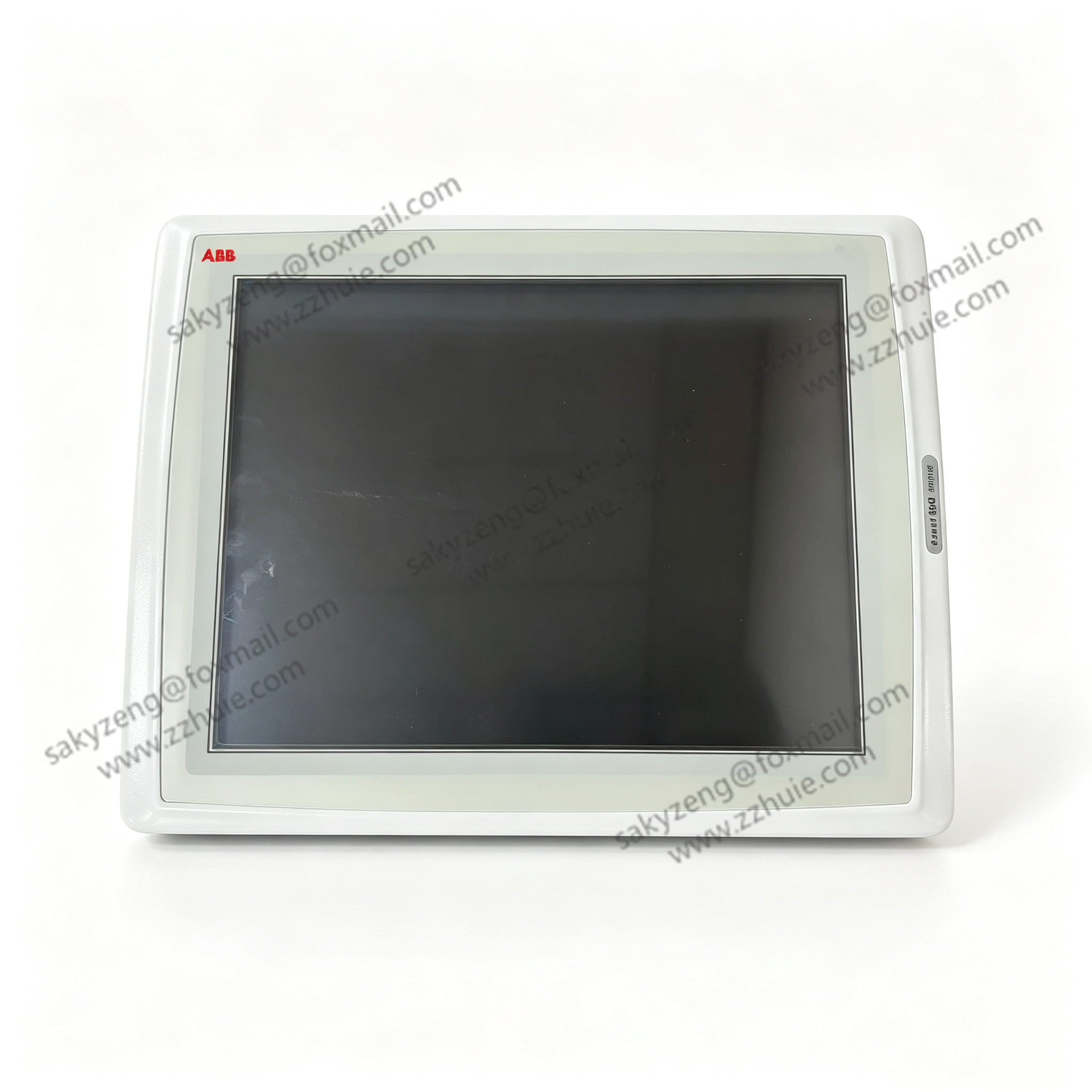

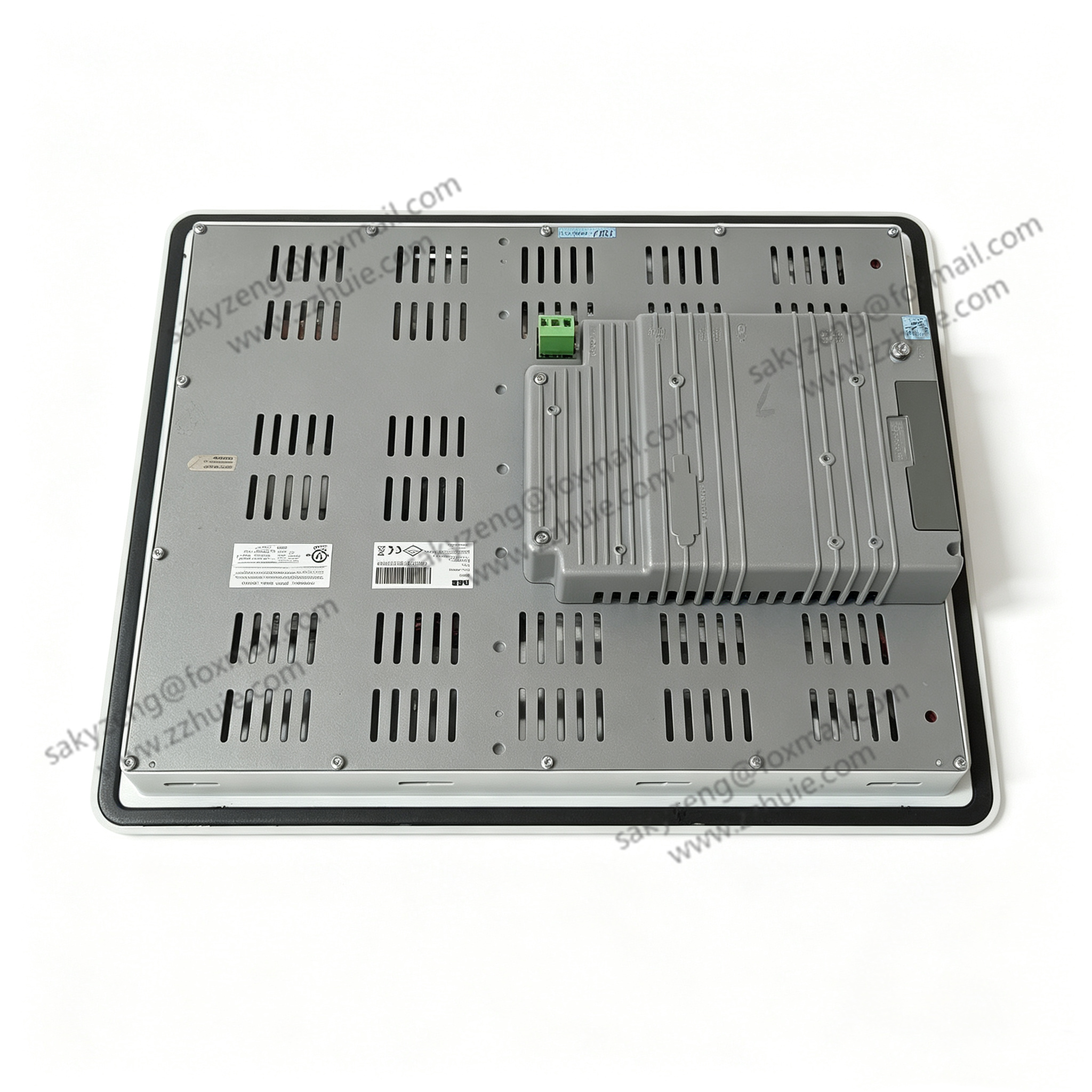

ABB PP865A (3BSE042236R2) Panel 800 Series 15-inch Resistive Touch Operator Panel for System 800xA DCS

Product Description

PP865A is the large-size high-resolution HMI of ABB Panel 800 series, matched with AC800M controller and System 800xA distributed control system. It adopts 15-inch

XGA TFT resistive touch screen, dedicated for central control room main monitoring station and on-site large operation cabinet. It realizes real-time process trend display,

PID loop adjustment, alarm management, batch recipe editing and equipment manual interlock operation. Equipped with independent dual Ethernet, RS232/485 serial,

USB and CF card storage slot, supports ABB RNRP redundant network, Modbus TCP and multi-third-party drive communication protocols. Front aluminum alloy panel

with IP66 dustproof and waterproof grade, stable for long-term 24/7 continuous operation, widely used as core replacement spare for large-scale DCS control cabinet screens.

Technical Specifications

PN: PP865A, Material Code: 3BSE042236R2, Origin: Sweden

Display: 15" XGA TFT LCD, 1024×768 resolution, 64K color, LED backlight

Touch: Industrial resistive touch, support glove operation

Power Supply: 24VDC (20–30V DC), max power consumption ~8W

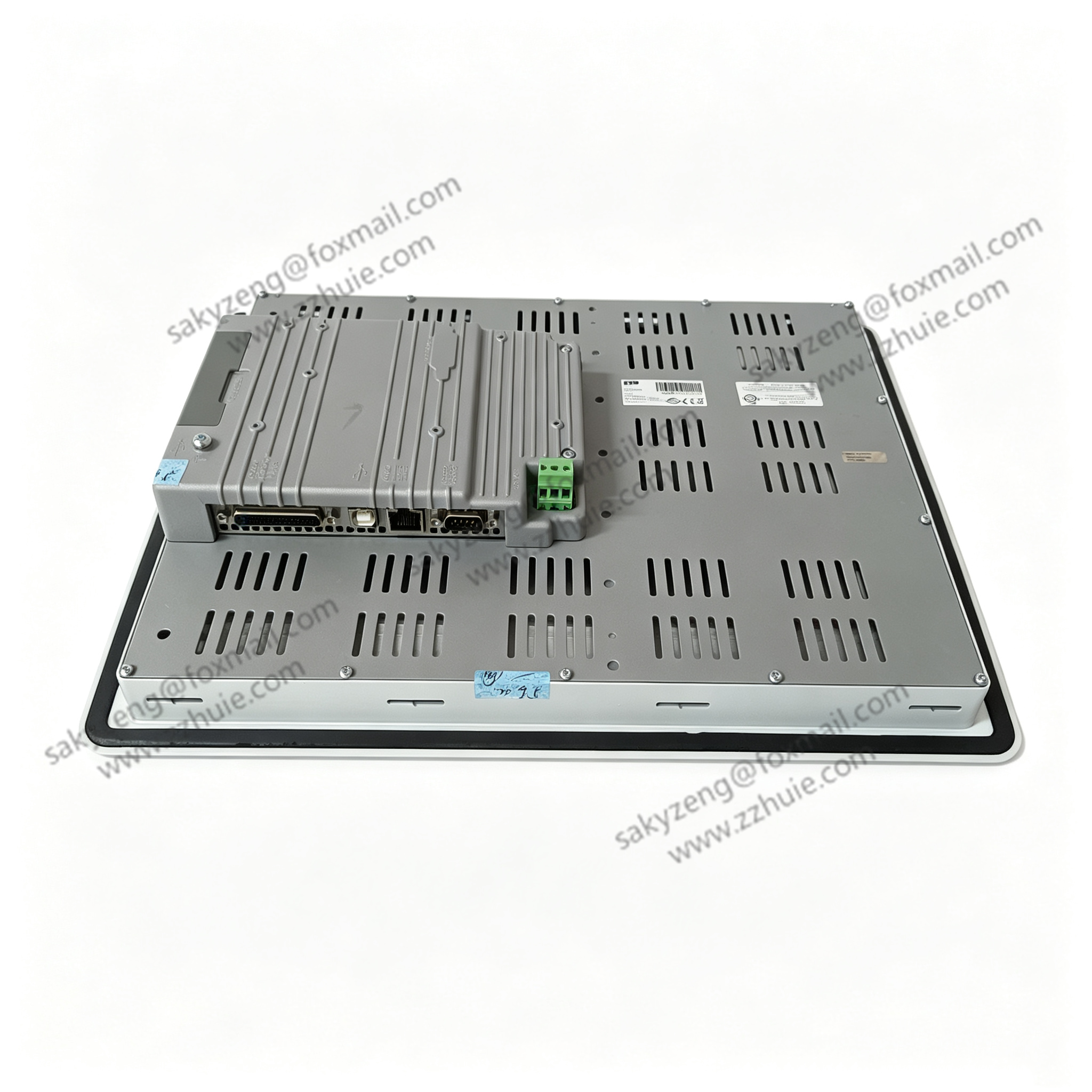

Interfaces: Dual 10/100Mbps Ethernet RJ45, RS232/485 serial, USB Host, CF card slot

Memory: Built-in 12MB Flash program storage, CF card for project backup

Mounting: Cabinet embedded panel installation

Protection Grade: Front panel IP66, rear shell IP20

Operating Temperature: 0℃ ~ +55℃; Storage: -40℃ ~ +85℃

Humidity: 5%–95% non-condensing, anti-oil mist and dust

Weight: ~1.9kg

Configuration Software: Panel Builder 800

Key Features

15-inch high-definition XGA large screen, suitable for multi-loop complex process graphic and long trend curve display.

Dual independent Ethernet ports support RNRP redundant network, seamless network switching without monitoring interruption.

CF card one-click project backup and clone, fast on-site commissioning after screen replacement.

Front IP66 high protection level, adapt to dusty, oil-sprayed industrial workshop environment.

Rich built-in industrial functions: S88 batch control, alarm SOE record, user authority management.

Full compatibility with all AC800M CPU models, plug-and-play without modifying control program.

RTC real-time clock, store thousands of alarm and event logs for post-fault analysis.

Slim thin body design, shallow installation depth to save internal cabinet space.

Application Scope

Central control room main monitoring HMI for thermal power boiler, steam turbine System 800xA DCS cabinets

Petrochemical refinery, chemical plant reactor, distillation column main operation touch panel

Metallurgy, cement, papermaking whole production line large process monitoring terminal

Oil & gas pipeline, LNG terminal, offshore platform main process control station

Flue gas desulfurization, sewage treatment large-scale distributed control system operator screen

Global aging ABB System 800xA DCS renovation, spare inventory and HMI upgrade replacement
