ABB CI867K01 (3BSE043660R1) Modbus TCP Dual Ethernet Communication Interface Module with TP867 Baseplate

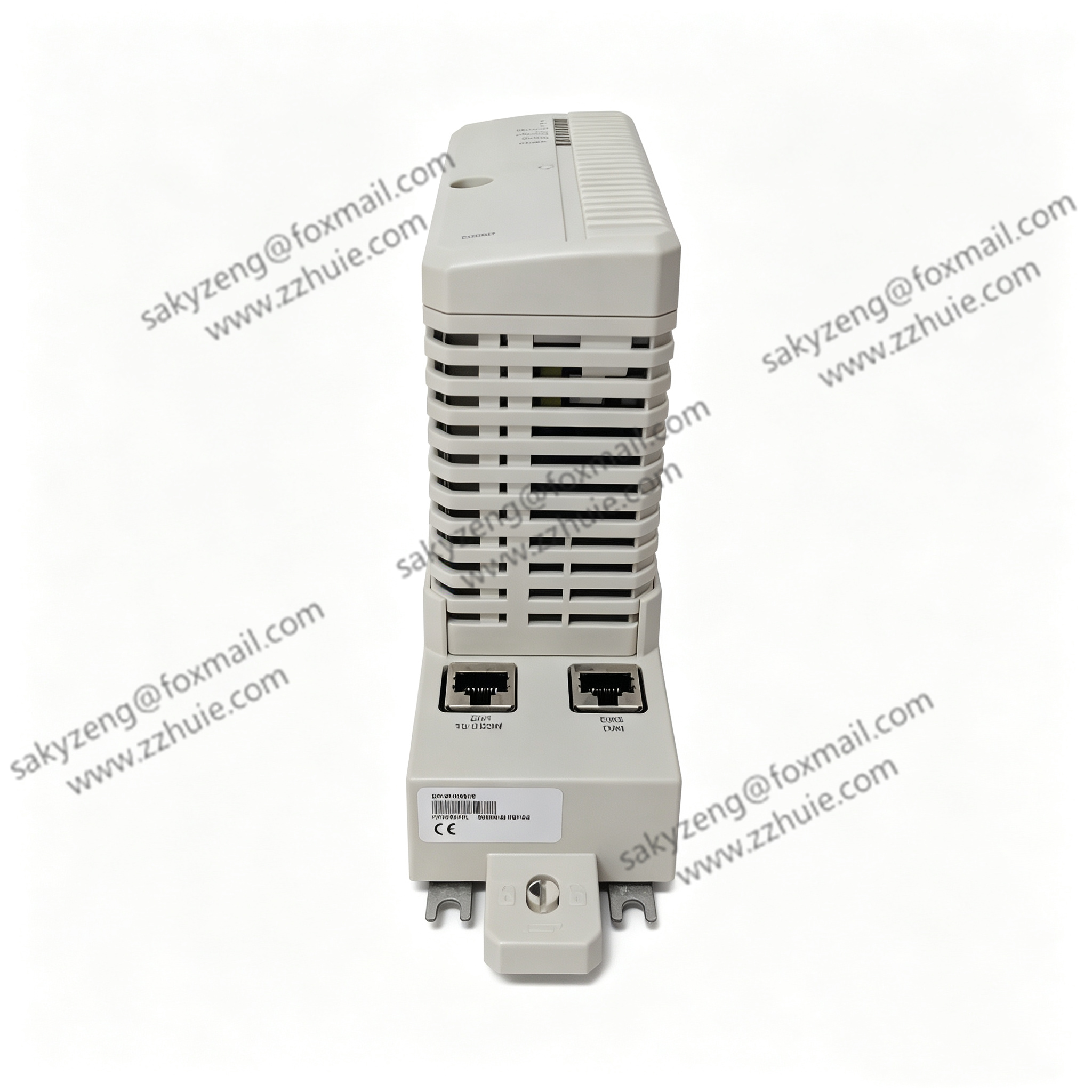

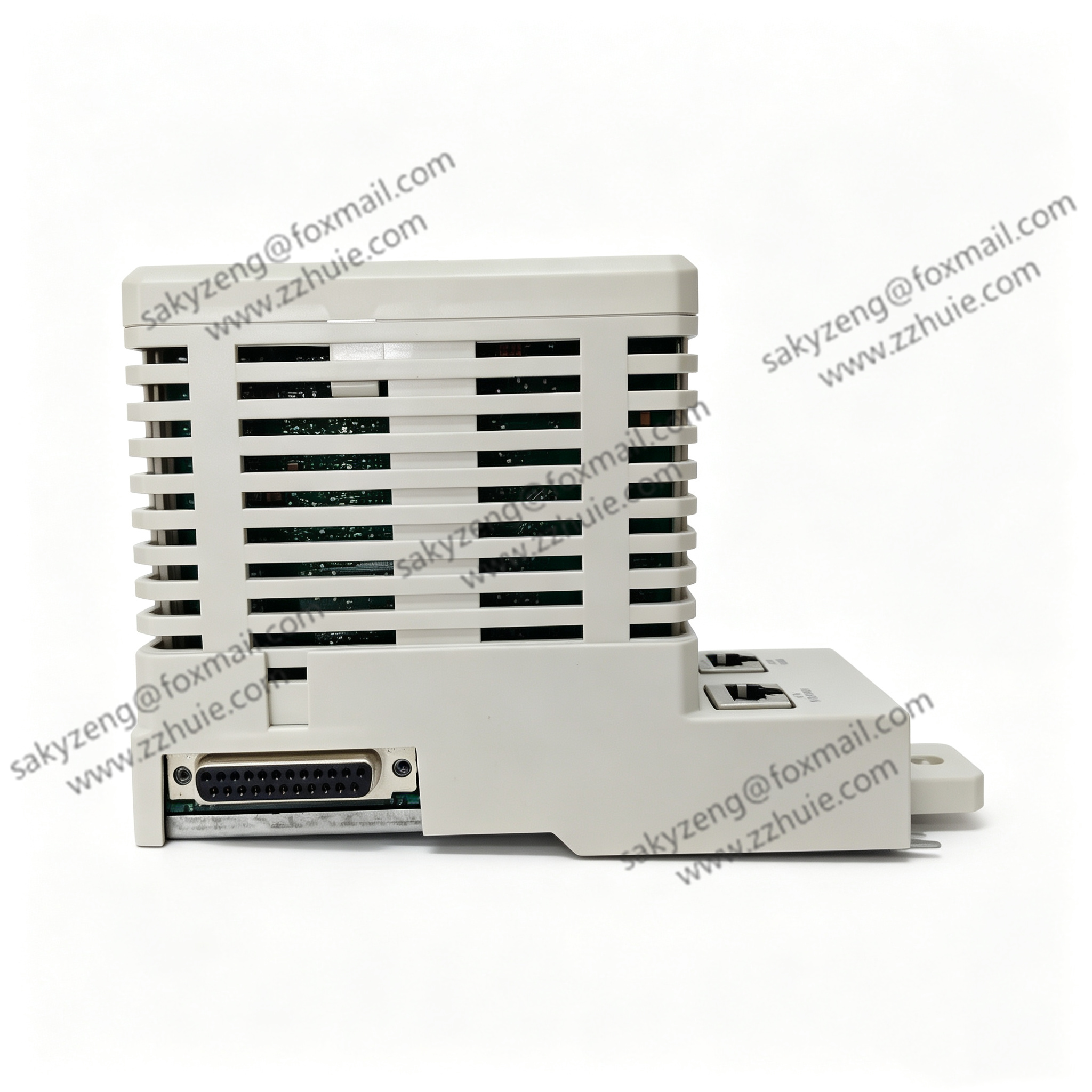

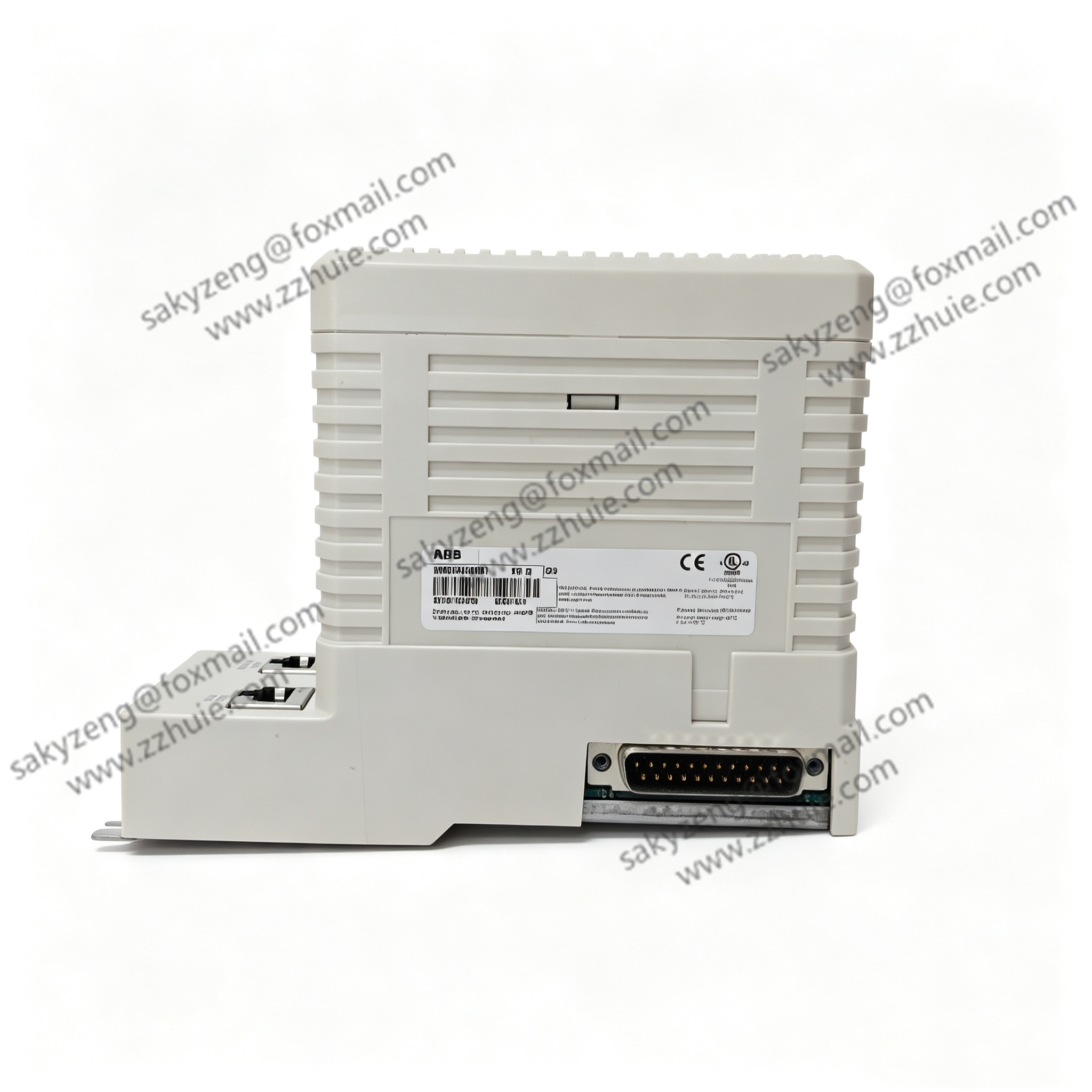

Product Description

3BSE043660R1 is the complete assembly part number consisting of CI867 communication board and matching TP867 terminal baseplate, manufactured in Switzerland for ABB AC800M

 controllers and System 800xA DCS platformsABB Group.

It acts as a dedicated Modbus TCP gateway to realize bidirectional high-speed data exchange between ABB control systems and third-party Modbus TCP devices, including flow meters,

weigh scales, frequency converters, remote RTUs, PLCs and intelligent instruments.

Equipped with dual independent RJ45 Ethernet channels supporting both master and slave modes, the module adopts an independent onboard processor to handle Modbus communication

tasks without occupying main controller CPU resources. It supports redundant module configuration and hot-swap replacement, enabling online maintenance without system shutdown.

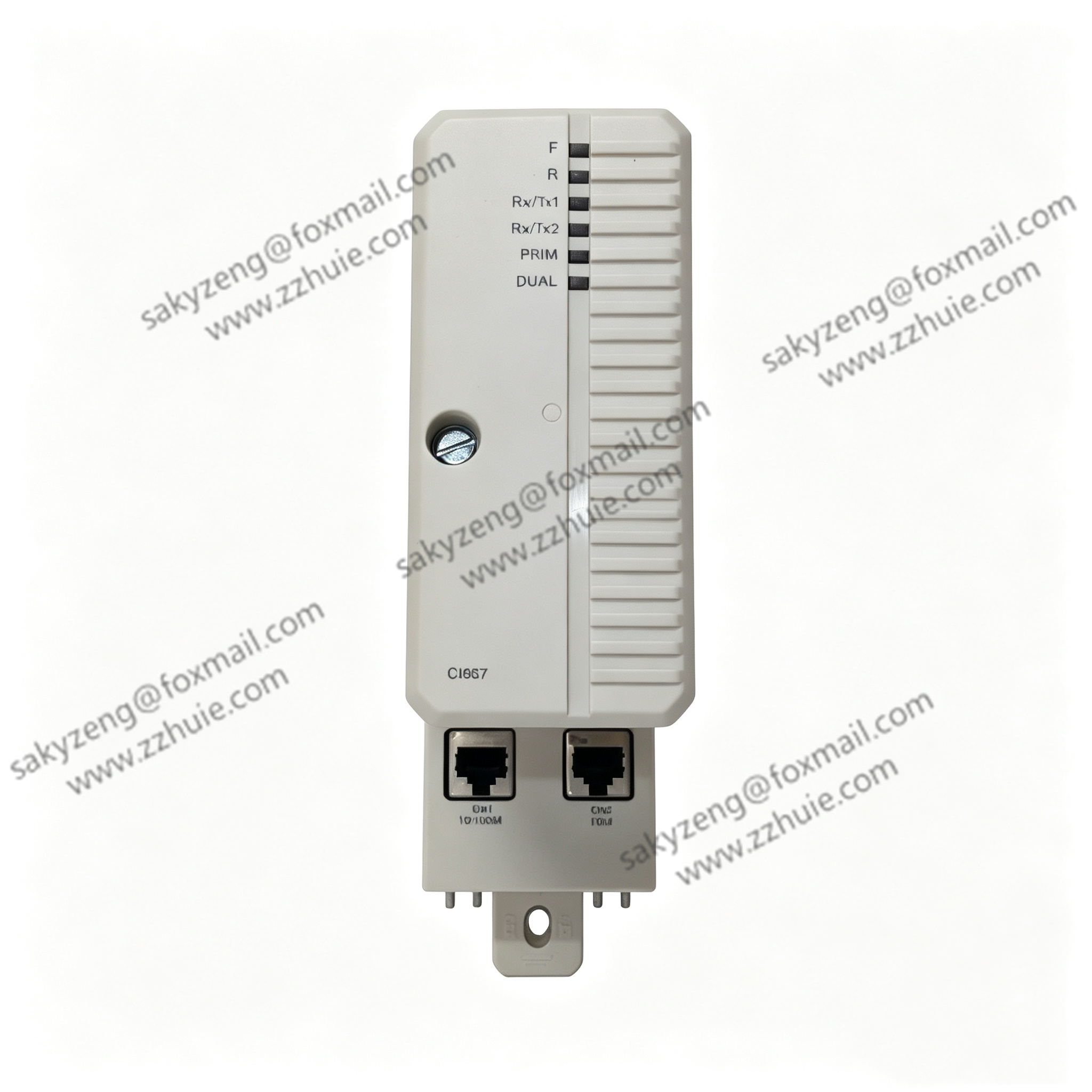

Full self-diagnosis monitors Ethernet link loss, communication timeout and bus abnormal faults, with multi-status LED indicators on the front panel for quick on-site troubleshooting.

Standard rack plug-in installation via CEX bus, conformal coated PCB for harsh industrial control room environments, widely used as critical maintenance spare for power, chemical,

pulp & paper and water treatment process plants.

Technical Specifications

Part No.: 3BSE043660R1

Model: CI867K01 (includes CI867 core board + TP867 baseplate)

Brand: ABB, Origin: Switzerland

Communication Protocol: Modbus TCP / Modbus RTU over TCP

Ethernet Ports: 2 × RJ45

Channel 1: 10/100 Mbps full duplex

Channel 2: 10 Mbps half duplex

Operation Mode: Support both Modbus Master & Slave

Max Nodes: Up to 70 slave devices total across two channels

Redundancy: Module-level redundant deployment supported

Hot Swap: Full hot-swap function under redundant configuration

Backplane Bus: CEX Bus for AC800M rack connection

Auxiliary Power: 24VDC, typical consumption 160mA

Operating Temperature: 0℃ ~ +55℃

Humidity: 5%–95% non-condensing, conformal coated PCB

Protection Class: IP20 (cabinet installation only)

Net Weight: 0.7kg

Compatible Systems: AC800M Controller, System 800xA DCS

Certifications: CE, UL, RoHS industrial compliance

Key Features

Integrated dual Ethernet Modbus TCP gateway seamlessly connects ABB DCS with third-party Modbus field equipment.

Independent communication processor offloads Modbus data processing to reduce main controller load.

Dual RJ45 network channels with flexible master/slave configuration for multi-device network expansion.

Redundant module design and hot-swap capability guarantee uninterrupted system operation during maintenance.

Complete built-in diagnostic function to detect broken network cables, communication disconnection and bus errors instantly.

Front panel LED status indicators for power, CEX bus, Ethernet link and fault alarm status.

Matched TP867 baseplate for quick rack plug-in mounting, no extra wiring conversion needed.

Industrial anti-corrosion coated circuit board adapts to long-term 24/7 continuous operation in dusty, humid control rooms.
