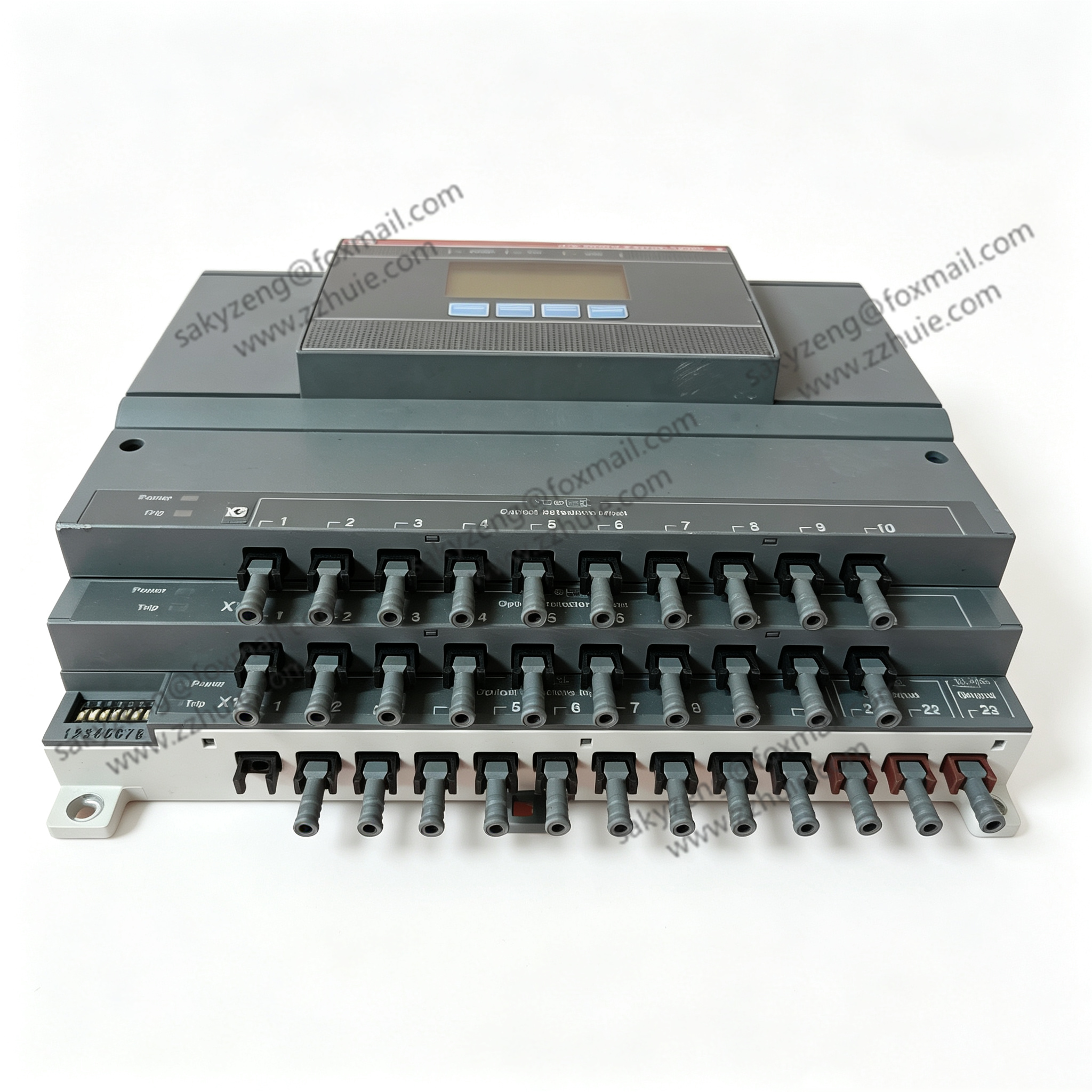

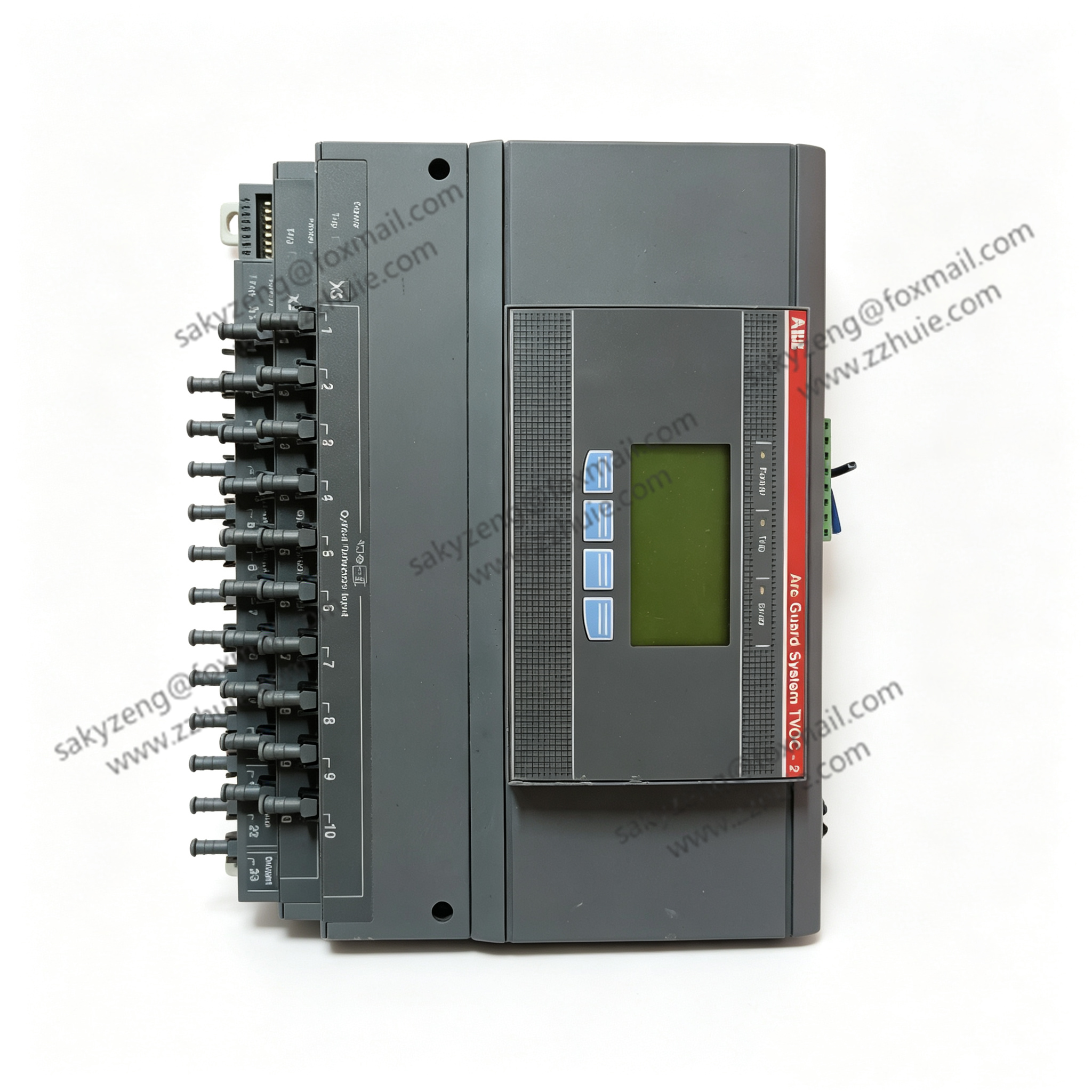

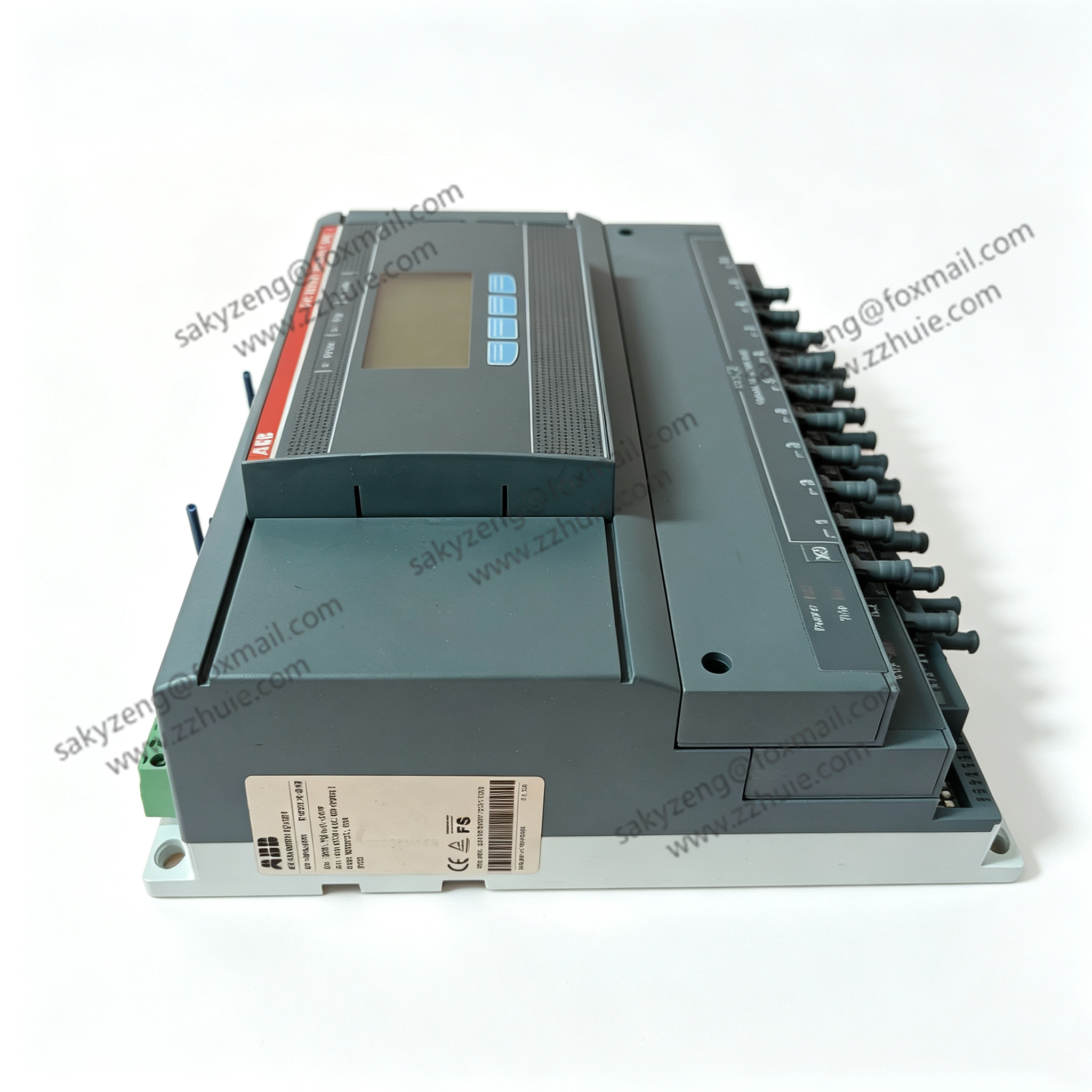

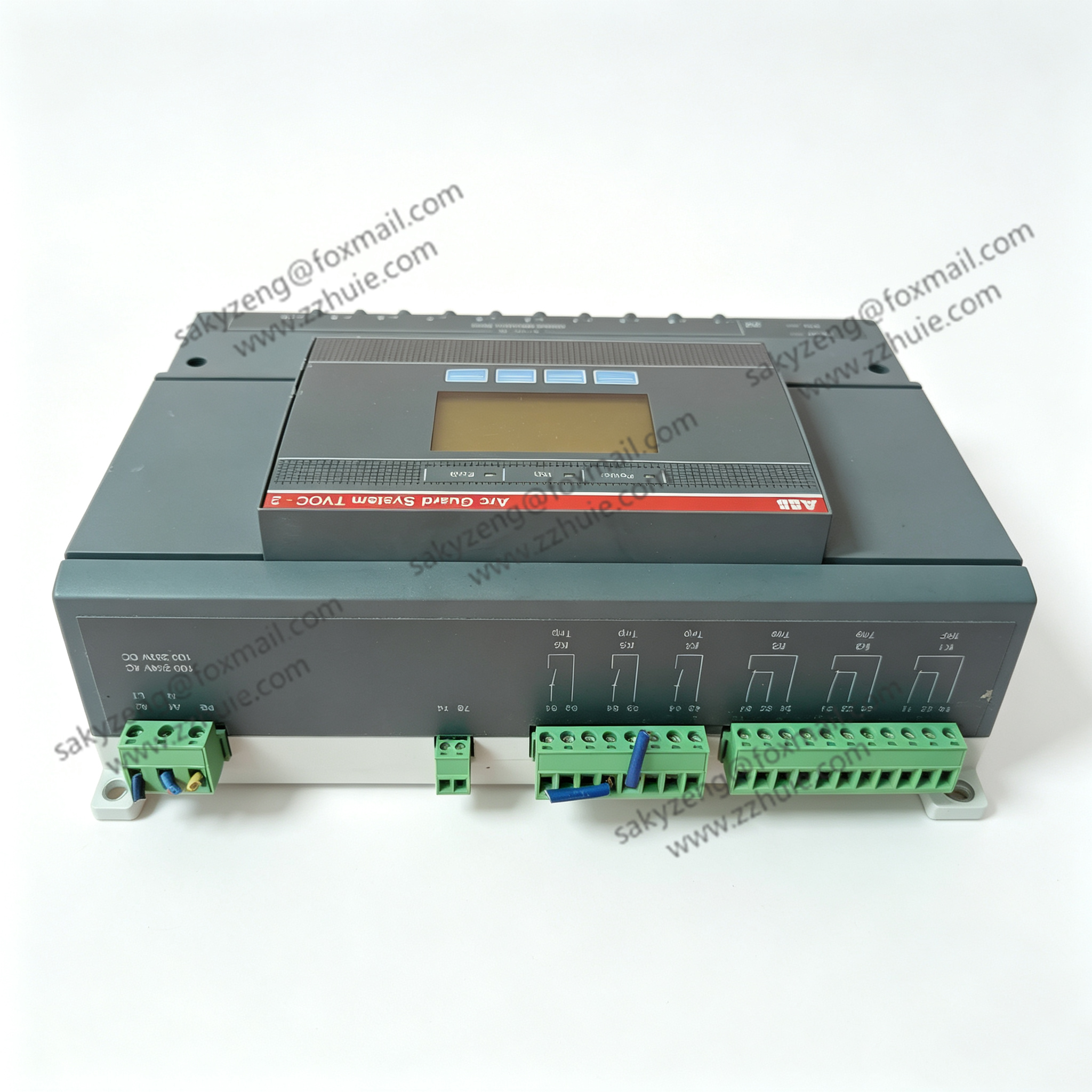

ABB TVOC-2-240 Arc Flash Protection Monitor (Main Unit of Arc Guard System)

Product Description

TVOC-2-240 (order code 1SFA664001R1001) is the core master controller of ABB Arc Guard System, an optical arc flash detection device for low-voltage switchgear, manufactured by ABB.

It captures arc light signals via fiber optical detectors installed inside cabinets, and sends rapid trip signals to circuit breakers within 1ms once arc faults occur, drastically reducing arc flash energy to protect personnel and electrical equipment from severe burn and blast hazards.

The base unit comes with 10 built-in optical sensor inputs, expandable up to 30 detectors by adding two TVOC-2-E1 extension modules. It supports 3 independent trip relay outputs with zone selectivity to isolate fault compartments accurately.

Compatible with external detachable HMI panel (TVOC-2-H1) for on-site parameter setup, fault code reading and status monitoring. Optional TVOC-2-COM communication module enables Modbus RTU data upload to SCADA/DCS for remote fault logging and system diagnosis. DIN rail or wall mounting design, SIL 2 safety certified per IEC 61508, widely deployed as safety spare for power distribution cabinets, industrial MCC, mining and chemical plant switch rooms.

Technical Specifications

Model: TVOC-2-240, Order PN: 1SFA664001R1001

Brand: ABB, Origin: Europe

Supply Voltage: 100–240 VAC 50/60Hz / 100–250 VDC

Built-in Optical Inputs: 10 channels, max expandable to 30 with TVOC-2-E1

Trip Outputs: 3 solid-state trip relays for breaker tripping

Auxiliary Signal Relays: 3 changeover contacts for fault/alarm indication

Arc Response Time: ≤1ms from light detection to trip signal output

Safety Certification: SIL 2 (IEC 61508, IEC 62061)

Communication: Modbus RTU via optional TVOC-2-COM module

Mounting: 35mm DIN rail or screw wall mounting

Protection Class: IP20 main unit; HMI front IP54

Operating Temp: -25℃ ~ +55℃

Storage Temp: -40℃ ~ +70℃

Power Consumption: Approx. 1W

Terminals: Screw clamp terminals

Net Weight: 0.95kg

Compatible Accessories: TVOC-2-E1 extension, TVOC-2-H1 HMI, TVOC-2-DP fiber optical sensors

Key Features

Ultra-fast 1ms arc flash detection and tripping to minimize arc blast damage and personnel injury risks.

Expandable optical input design supports up to 30 fiber sensors for full coverage of multi-compartment switchgear.

Three independent zone-selective trip outputs enable targeted fault isolation without full system power cut.

Detachable door-mounted HMI for local configuration, real-time status display and fault history query.

Modbus RTU communication interface for remote monitoring and fault data integration with plant DCS/SCADA.

SIL 2 functional safety certification meets global industrial machinery and power distribution safety standards.

No field calibration required after fiber sensor installation, simplifying commissioning and maintenance work.

Rugged wide temperature range design, suitable for continuous operation in power plants, refineries and mining distribution rooms.
