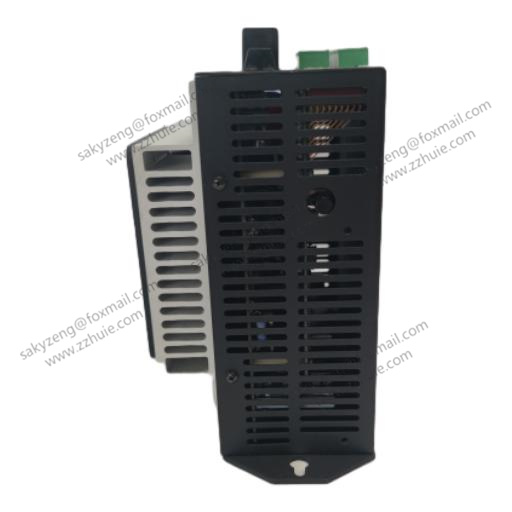

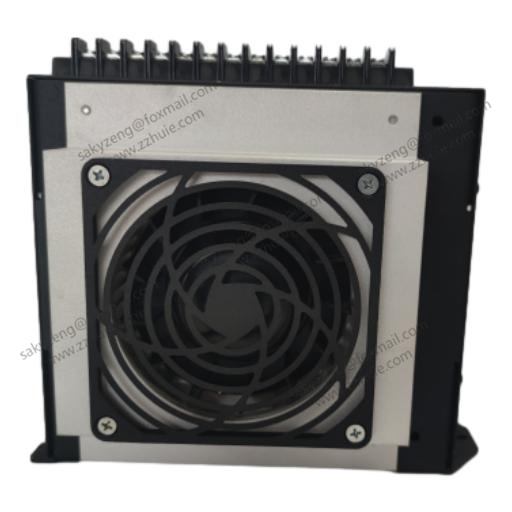

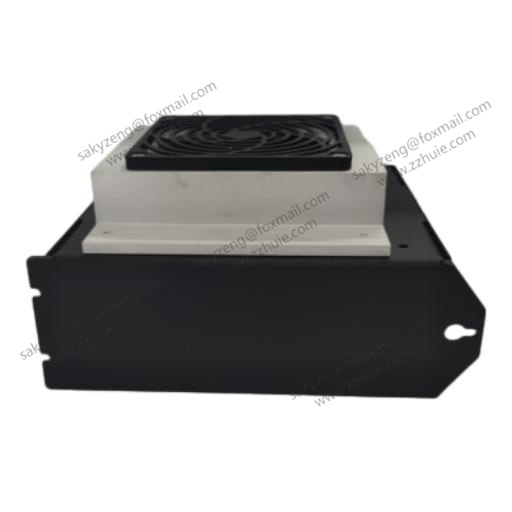

ORMEC SAC-SW220/EB | Servo control module

Official Product Description of ORMEC SAC-SW220/EBBrand: ORMEC (Top American industrial automation & servo drive brand, focusing on high-end motion control) Model: SAC-SW220/EB Official Name**: High-performance Servo Control Module (Industrial-grade Motion Control Core Unit) Core Attribute**: Original industrial-grade servo control module manufactured by US ORMEC, the core component of high-end motion control systems. Adopting advanced electronic circuit design and optimized component layout, integrated with industrial safety, new materials and electronic technology upgrades, it features high performance, high reliability and wide adaptability, with no customized modifications, 100% original factory standard industrial spare part.

▶ Core Technical Specifications 1. Electrical Core Parameters - Input Voltage: DC 12-36V (wide DC voltage input, compatible with industrial DC power supply systems) - Max Input Current: 10A, Output Voltage: DC 12V, Max Output Current: 10A - Rated Output Power: 10W (max), Power Conversion Efficiency: ≥90% (energy-saving, industrial energy consumption standard) - Applicable Motor Load: 9A ~ 750A (covering small/medium/large motors, compatible with DC/AC working conditions) - Protection Function: Built-in overload protection, anti-overcurrent/overvoltage, ensuring stable equipment operation - Encoder Support: Compatible with multiple encoder feedback modes for high-precision closed-loop control 2. Environmental & Physical Parameters - Operating Temperature: -20℃ ~ +60℃, Storage Temperature: -40℃ ~ +85℃ (wide temperature adaptation for harsh industrial environments) - Dimensions: 220mm×150mm×30mm (L×W×H), standard industrial module size for direct cabinet installation - Net Weight: Approx. 1.5kg (bare unit, original anti-static packaging) - Installation: DIN35 industrial rail snap-on mounting, no drilling required, compatible with general industrial control cabinets 3. Core Performance Features - Configuration Flexibility: Supports minimal component configuration, customizable control functions for industrial scenarios, adaptable to complex control systems - Operation Stability: Industrial-grade design, strong anti-electromagnetic interference, MTBF ≥50,000 hours - Working Condition Adaptability: No working system restrictions, supports long-term continuous operation, compatible with cabinet/open installation (10%-20% derating required for cabinet installation) ▶ Product Attributes & Certification - Place of Origin: Original imported from the USA (ORMEC factory production, no domestic OEM) - Customization: 100% original factory standard part, non-customized, ready to use upon purchase - Certification: Compliant with UL/CE industrial electrical safety certification, meeting North American/EU/China industrial control standards - Warranty: 12-month original factory warranty, 6-month warranty for industrial channel supplies ▶ Application Scenarios & Industries ✅ Compatible Equipment: ORMEC full range servo drive systems, industrial motion controllers, CNC machining centers, robot joint control units ✅ Core Industries: Automobile manufacturing, aerospace, metallurgy & aluminum industry, precision machinery processing, lithium battery new energy, automated production lines ✅ Application Scenarios: High-precision motion control, motor load regulation, industrial closed-loop control systems, DC/AC hybrid industrial control scenarios ▶ Important Purchase & Usage Notes 1. This model is a **high-end servo control dedicated module** of ORMEC, a core industrial spare part with no universal alternative models, requiring only original factory procurement. 2. Selection must match the motor load range of 9A-750A, and confirm working condition adaptability according to the actual power supply voltage (DC12-36V). 3. No additional programming required for installation, plug-and-play supported, compatible with mainstream PLC control systems and linkage with Danaher/ORMEC industrial control equipment. 4. Storage Requirements: Store in a dry, ventilated and anti-static environment, avoid humidity, corrosion and strong magnetic interference.
