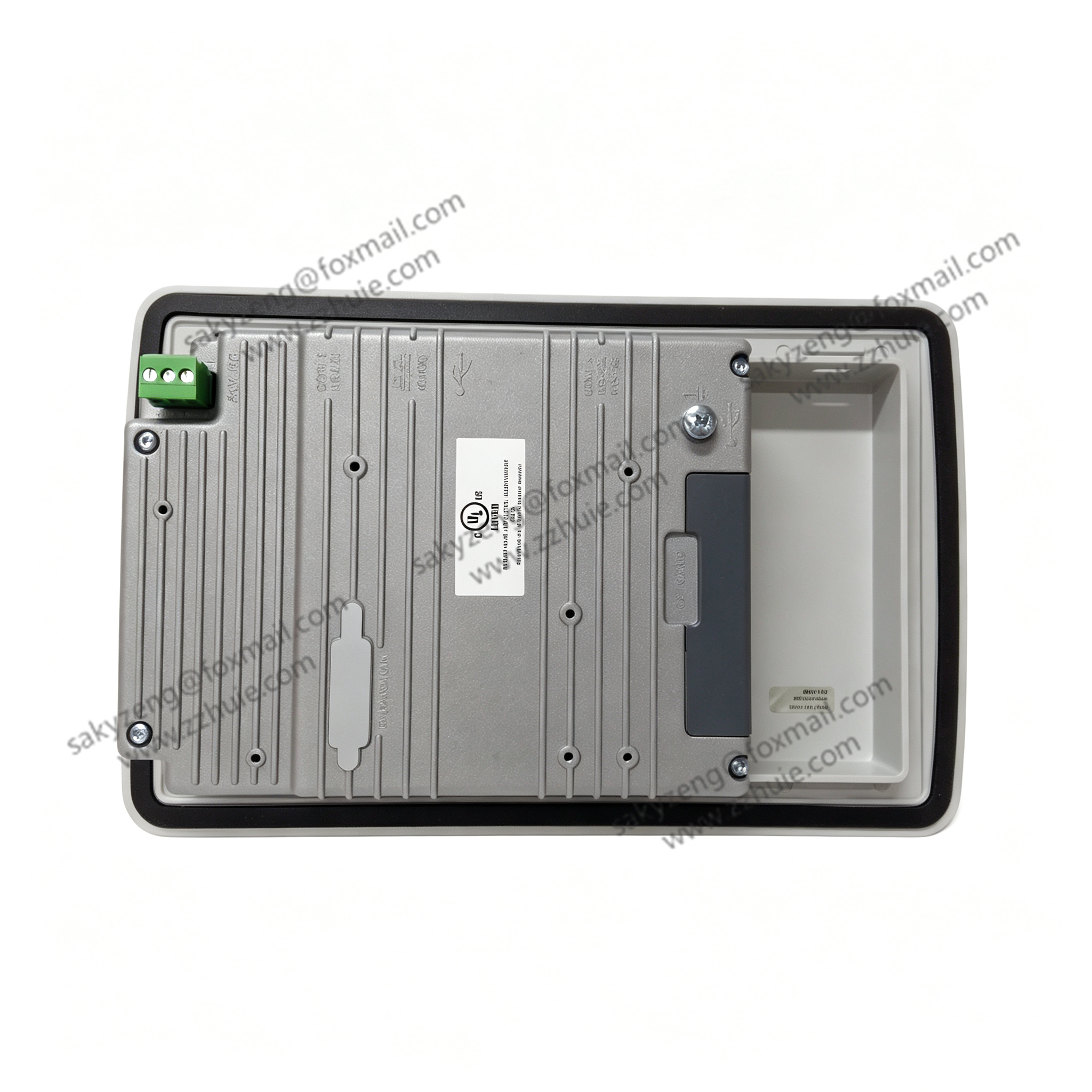

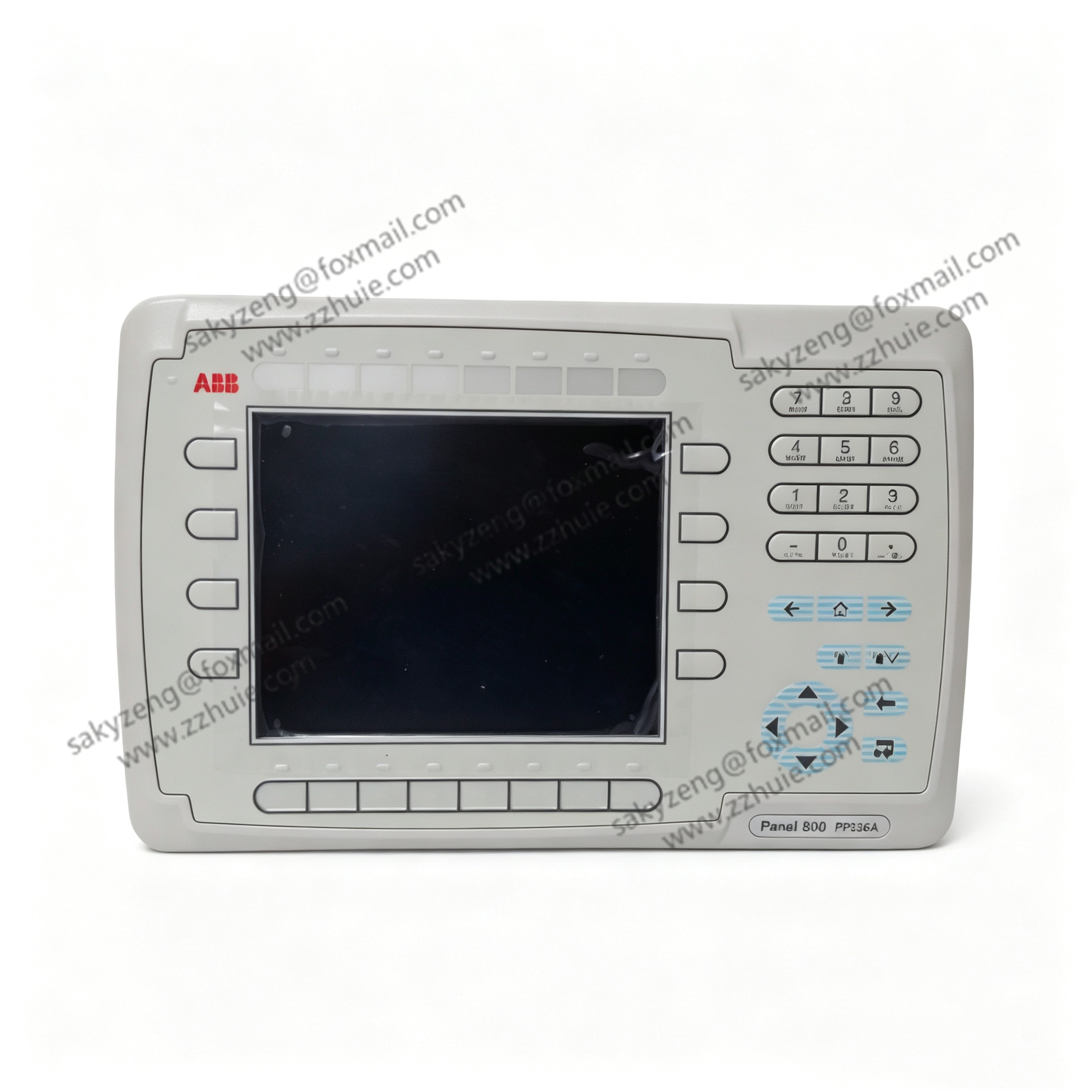

ABB PP836A (3BSE042237R2) 6.5-inch Color TFT Touch Operator Panel for System 800xA & AC800M DCS

Product Description

PP836A with order code 3BSE042237R2 belongs to ABB Panel 800 HMI series, a compact industrial touchscreen operator panel designed for ABB System 800xA distributed control system

and AC800M process controllers, manufactured in Switzerland.

Equipped with a 6.5-inch high-brightness TFT color display and integrated physical shortcut function keys, it serves as local and central control room human-machine interface to realize real-time

process variable monitoring, graphic page browsing, trend curve viewing, alarm acknowledge, parameter setpoint adjustment and equipment manual operation.

The unit adopts low-power ARM9 industrial processor with abundant built-in memory resources, supporting multi-language operation interface, recipe storage and historical event logging.

It integrates dual Ethernet, RS485 and USB communication ports, compatible with Modbus TCP/RTU, Profibus DP and ABB native control network protocols, enabling seamless data interaction

with AC800M controllers, remote field instruments and third-party PLC devices.

Front panel achieves IP66 dustproof and waterproof protection, rear housing IP20 for cabinet internal installation. Conformal coated circuit board and wide temperature hardware design support

long-term 24/7 continuous operation in power plants, refineries, chemical factories and water treatment control rooms. It is a mainstream replacement spare for on-site operation and monitoring

of ABB DCS systems.

Technical Specifications

Part No.: PP836A, Order Code: 3BSE042237R2

Brand: ABB, Origin: Switzerland

Display: 6.5-inch TFT color screen, resolution 640×480, 256K colors

Touch Type: Resistive industrial touchscreen, compatible with glove operation

Processor: ARM9 1GHz core with 3D graphics acceleration

Memory: 1GB RAM, 4GB eMMC flash storage, expandable via USB flash disk

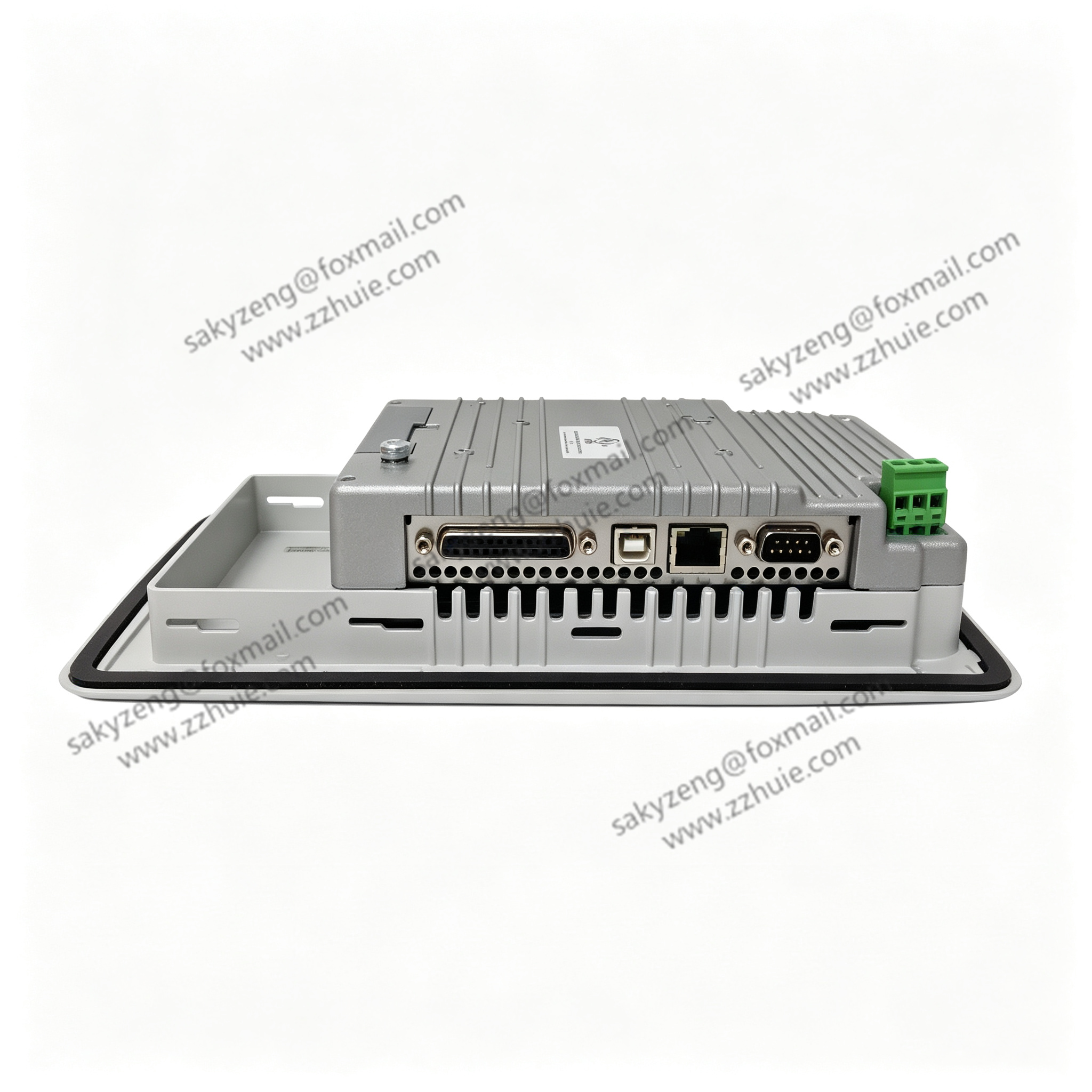

Communication Interfaces

2 × 10/100Mbps Ethernet RJ45 ports

RS485 serial port (Modbus RTU, Profibus DP)

2 × USB 2.0 host ports for project download and data export

Supported Protocols: ABB OPC, Modbus TCP/RTU, Profibus DP

Power Supply: 12–32VDC wide range DC power supply

Protection Grade: Front IP66, Rear IP20

Operating Temperature: -10℃ ~ +55℃ standard; -20℃ ~ +60℃ extended range

Storage Temperature: -40℃ ~ +70℃

Humidity: 5%–95% non-condensing

Mounting: Cabinet door embedded installation

Overall Dimension: 292 × 194 × 52 mm

Net Weight: Approx. 1.2kg

Compatible System: System 800xA, AC800M PAC, Compact Product Suite

Key Features

6.5-inch compact size with integrated physical function keys, convenient for small cabinet door installation and quick one-key page switching.

High-brightness color TFT screen with clear display under strong light central control room environment.

Multi-protocol communication design, realizing interconnection between ABB DCS and various third-party automation equipment.

Dual Ethernet redundant network interface improves communication stability and avoids single network failure.

Rich local storage supports mass historical alarm, trend and batch recipe data recording without upper station reliance.

IP66 front panel dustproof and waterproof design, resistant to dust, splashing liquid in industrial control rooms.

USB quick project upload/download, convenient for on-site HMI program maintenance and version replacement.

Industrial anti-corrosion conformal coated PCB, anti-vibration and anti-electromagnetic interference, stable long-term continuous operation.
