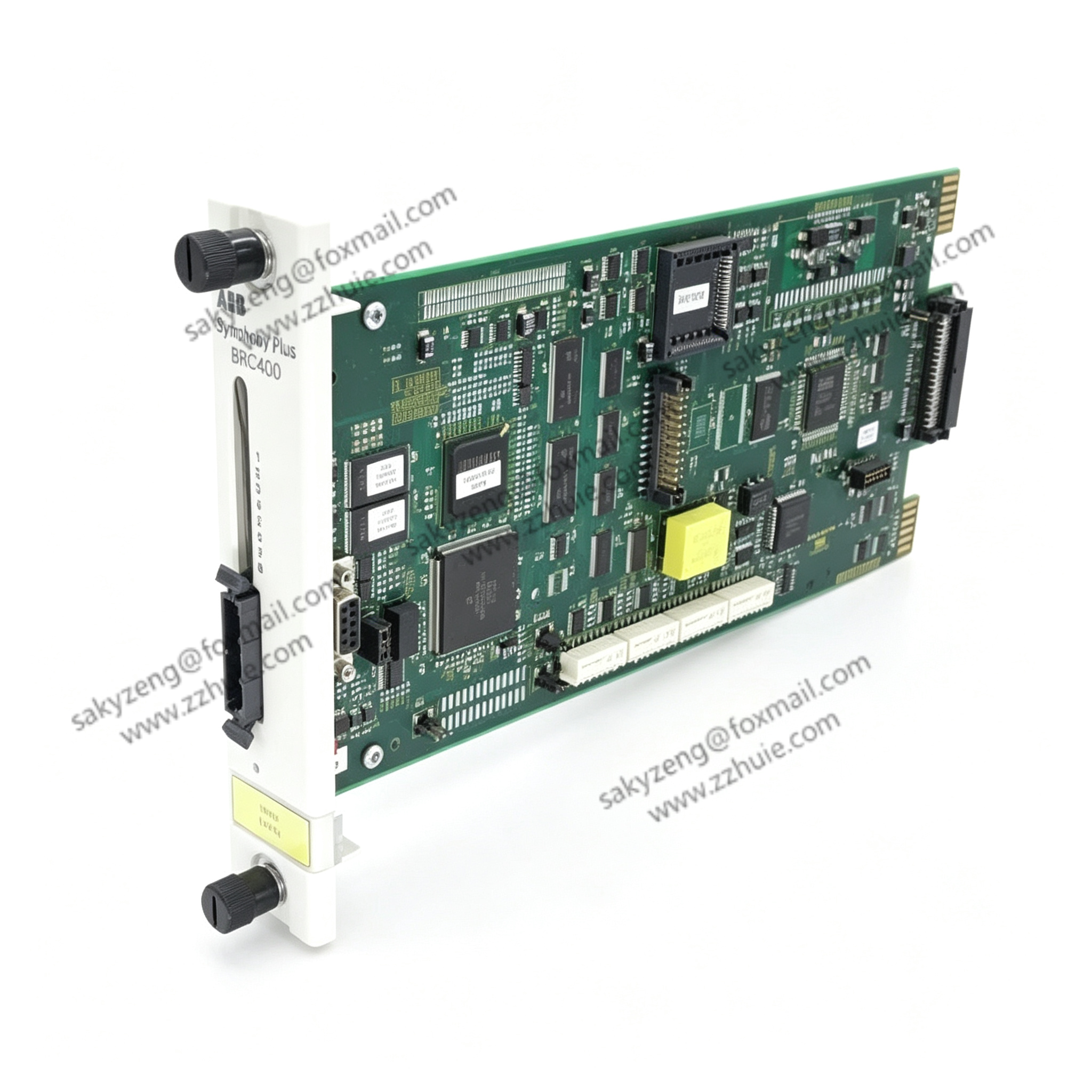

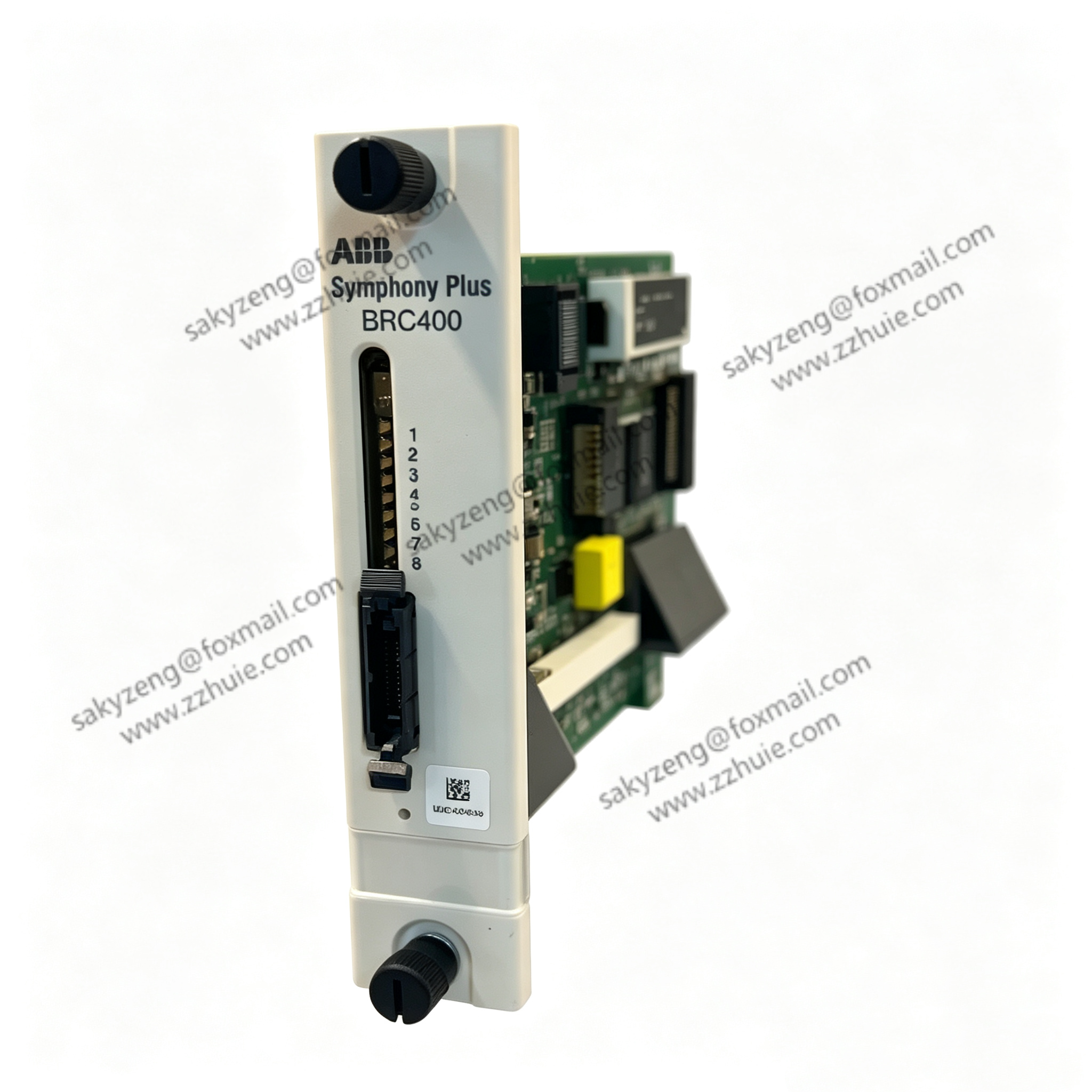

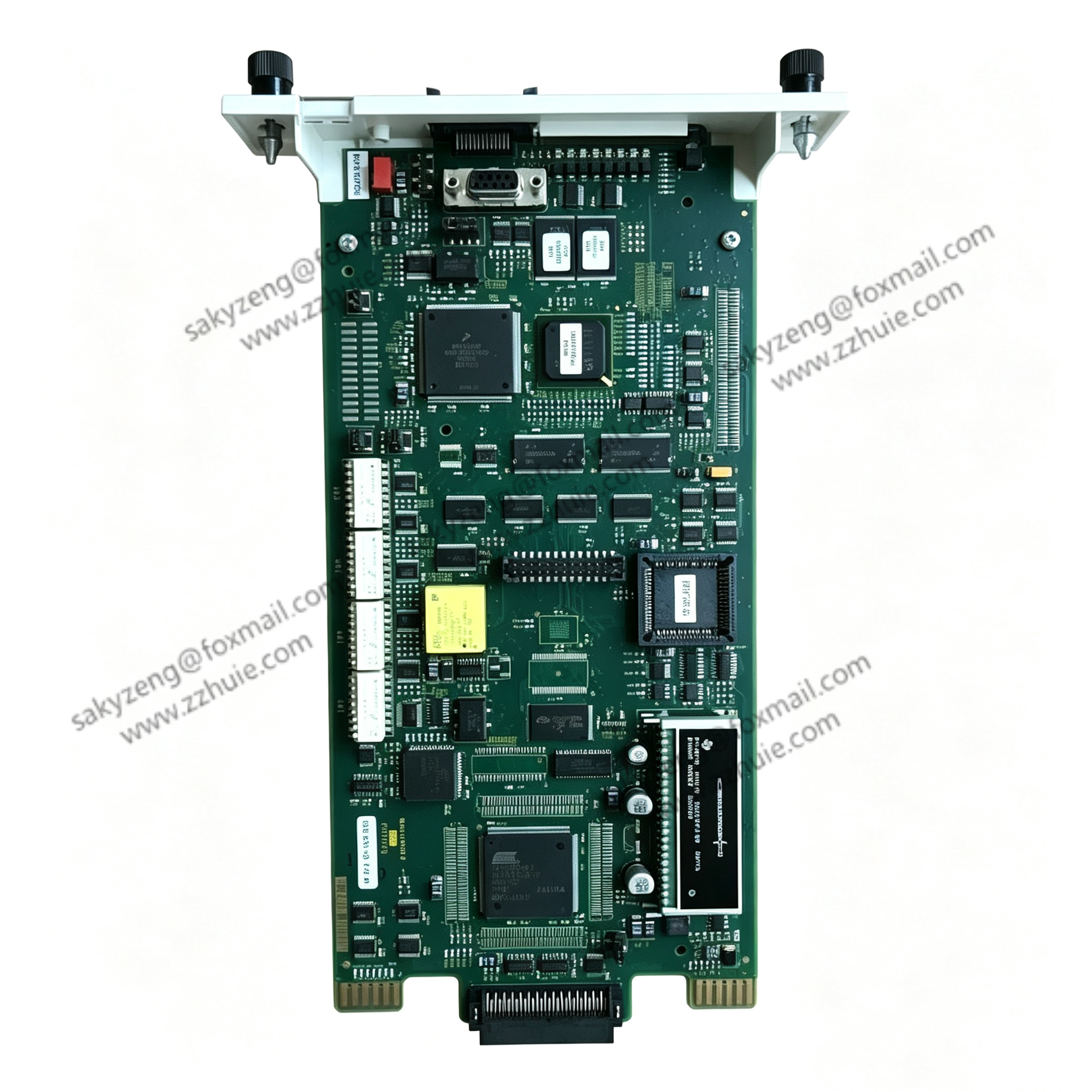

ABB SPBRC400 Harmony Bridge Controller for INFI90 / System 800xA DCS Network Interconnection

Product Description

SPBRC400 is ABB Bailey Harmony bridge module, used for data interconnection between INFI90 legacy DCS and System 800xA control systems.

It converts INFI-net proprietary bus signals and Ethernet data, supports redundant communication path automatic switching. Independent communication processor eases main CPU load, all signals with galvanic isolation. Front LED indicators show running and fault status, conformal coated PCB, standard single-slot rack spare for power and chemical plant DCS renovation.

Technical Specifications

Model: SPBRC400, Brand: ABB Bailey

Compatible System: INFI90 Harmony DCS, System 800xA, AC800M Controller Rack

Network Interface: INFI-net proprietary bus + Ethernet communication port

Redundancy Function: Dual communication path automatic failover, switchover time <10ms

Supported Protocols: INFI-net, Modbus TCP, OPC, SNMP network management

Max Transmission Distance: Signal regeneration extends network transmission range

Power Supply: 24VDC rack backplane power supply

Power Consumption: Approx. 5W

Operating Temperature: 0℃ ~ +60℃ full load

Storage Temperature: -40℃ ~ +70℃

Humidity: 5%–95% non-condensing, conformal coated PCB

Protection Class: IP20 cabinet installation only

Mounting: Standard single slot plug-in rack installation

Net Weight: Approx. 0.72kg

Certifications: CE, UL industrial compliance

Key Features

Specialized bridge controller for interconnecting legacy INFI90 DCS and modern System 800xA control platforms, convenient for plant phased system renovation.

True dual-path network redundancy with ultra-fast automatic switchover, effectively eliminating single network failure risk for uninterrupted process production.

Independent onboard communication processor reduces master controller computing load, stable mass cyclic data exchange for large-scale I/O systems.

Built-in signal regeneration function enhances transmission quality, suitable for long-distance control cabinet layout in large chemical and power plants.

Multi-channel front panel LED status indicators for real-time power, link and fault alarm, convenient for on-site rapid troubleshooting.

SNMP network diagnosis function supports remote network monitoring, fault log collection and equipment status query via upper SCADA system.

Full galvanic isolation design for all network signal channels to suppress severe EMI interference generated by turbines, inverters and heavy-duty field equipment.

Rugged industrial coated PCB anti-vibration hardware design, stable 24/7 continuous long-term operation in dusty and humid central control rooms.
