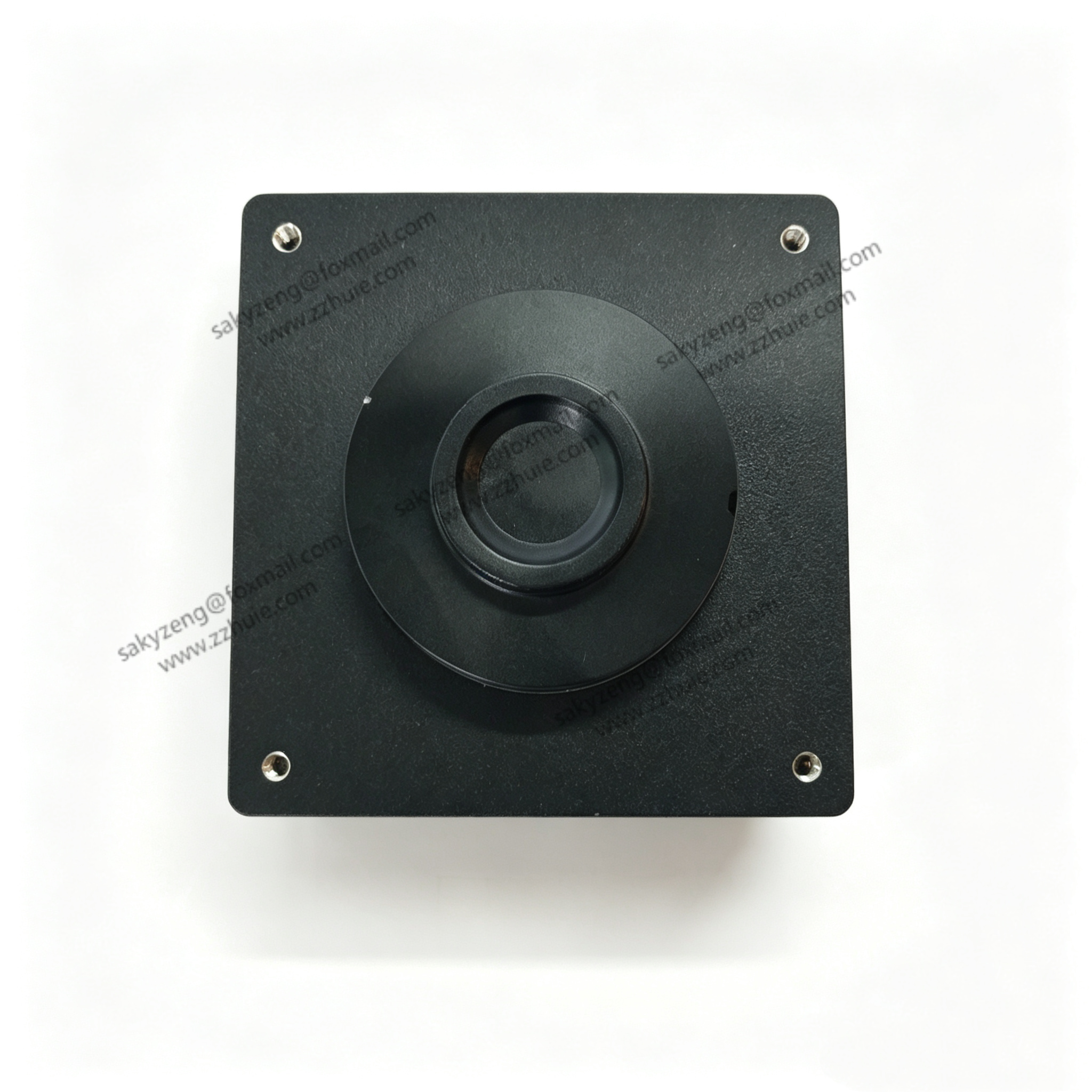

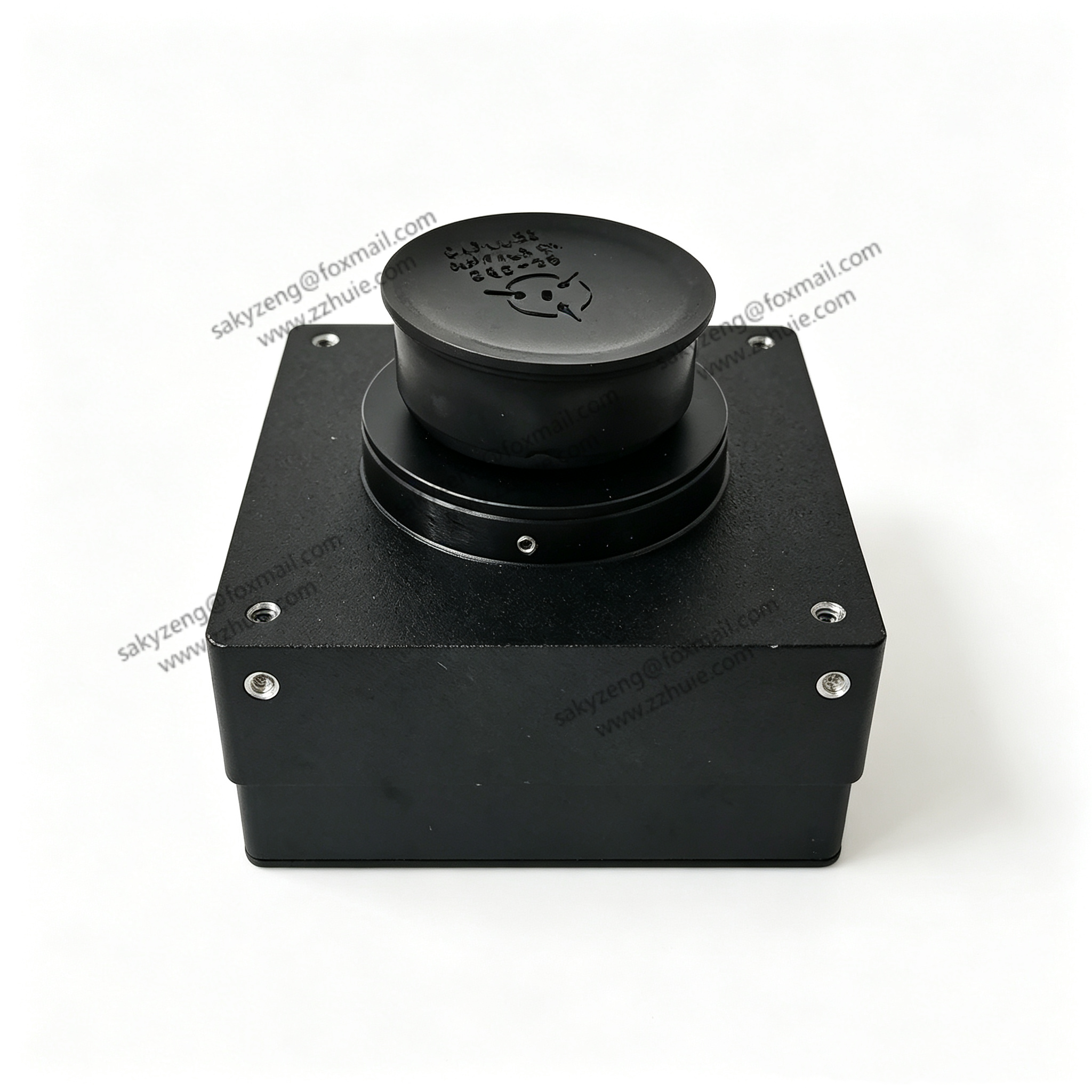

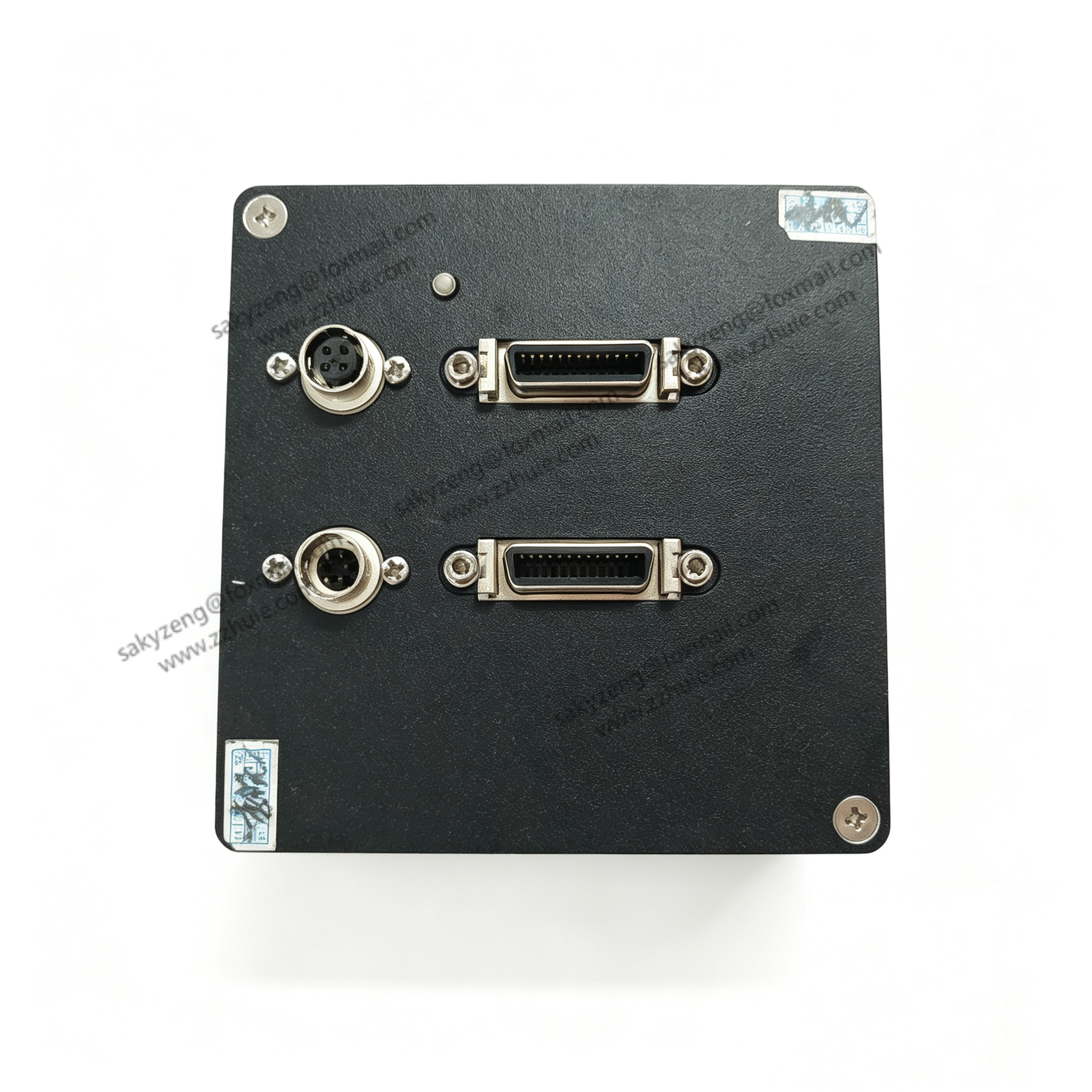

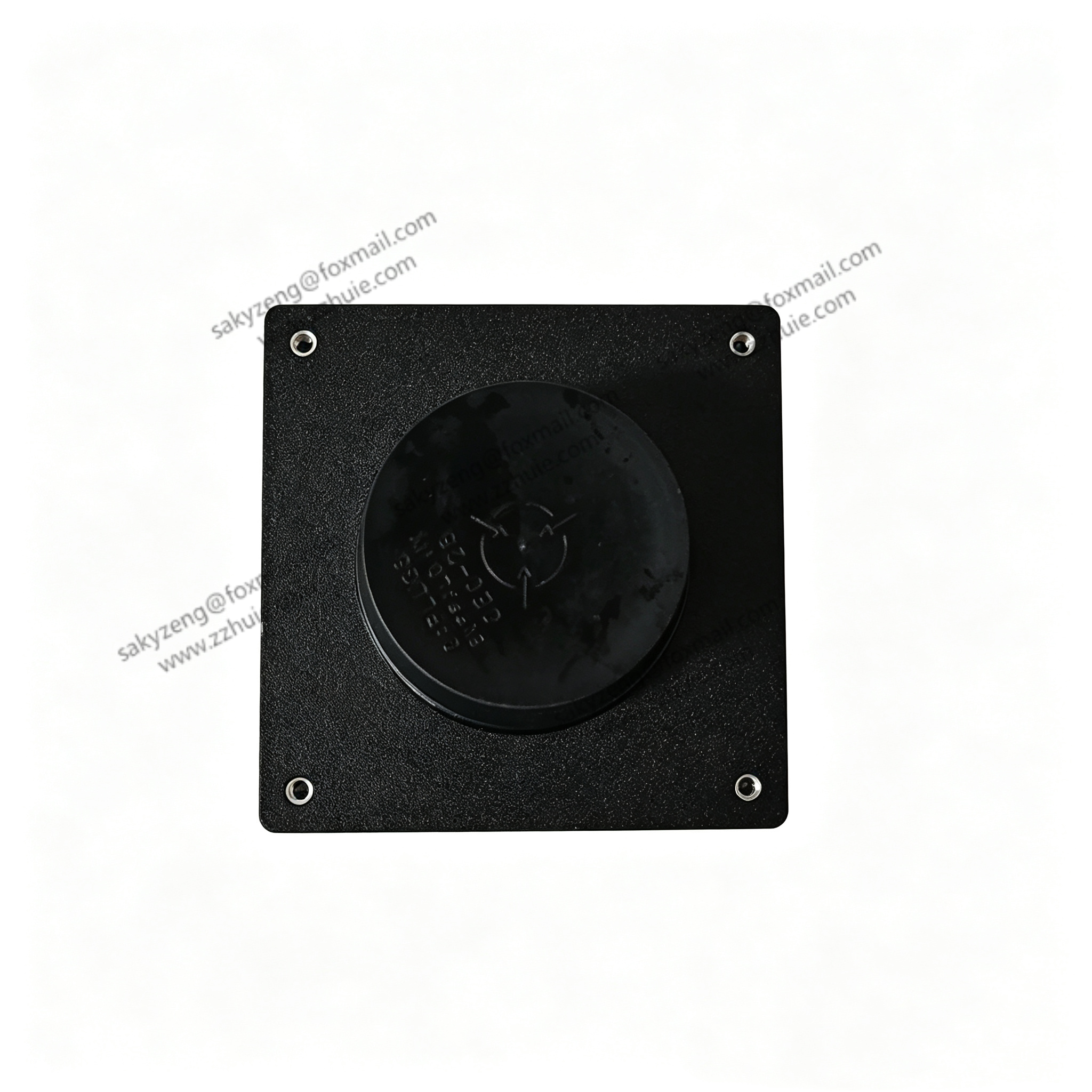

Basler A404KM-RT 4MP 96fps Rugged Monochrome Camera Link Industrial Camera

Product Description

A404KM-RT is rugged reinforced variant of standard A404K, A400 series rolling shutter CMOS camera with Camera Link Full interface.

It features 2352×1726 4MP sensor running up to 96fps, triple image shading correction and hardware trigger flash output. The RT rugged housing enhances shock & vibration resistance, conformal coated internal circuit, F-mount lens port, stable high-speed image capture, used as replacement spare for automotive inspection, semiconductor AOI and harsh production line vision equipment.

Technical Specifications

Model: A404KM-RT, Brand: Basler, Origin: Germany

Sensor: Monochrome CMOS Rolling Shutter, 1 1/4 inch optical format

Resolution: 2352 × 1726 (4 Megapixel)

Max Frame Rate: 96 fps full resolution

Data Interface: Camera Link Full

Bit Depth: 8 / 10 bit switchable

Lens Mount: Standard F-mount

Image Correction: Column, DSNU, PRNU shading correction

Trigger Function: Hardware trigger, adjustable exposure, flash signal output

Power Input: 12VDC industrial power supply

Operating Temperature: 0℃ ~ +50℃ full load

Storage Temperature: -20℃ ~ +70℃

Humidity: 5%–95% non-condensing, conformal coated PCB

Protection Grade: Rugged RT reinforced metal housing, IP20

Dimension: 85.3 × 90 × 90 mm

Net Weight: Approx. 530g

Certifications: CE, FCC industrial compliance

Key Features

RT rugged reinforced structure improves anti-shock and anti-vibration performance for harsh workshop environments.

96fps high frame rate at full 4MP resolution meets continuous high-speed production inspection requirements.

Triple built-in shading correction eliminates fixed pattern noise for uniform, high-quality monochrome images.

Partial AOI readout reduces data volume and further lifts actual frame rate during targeted detection.

Camera Link Full high-bandwidth interface ensures stable delay-free image transmission to frame grabber.

External flash trigger output acquires clear sharp images of fast moving workpieces.

Standard F-mount interface compatible with various industrial fixed focal and telecentric lenses.

Conformal coated PCB and reinforced shell, reliable 24/7 continuous operation for automated optical inspection systems.
