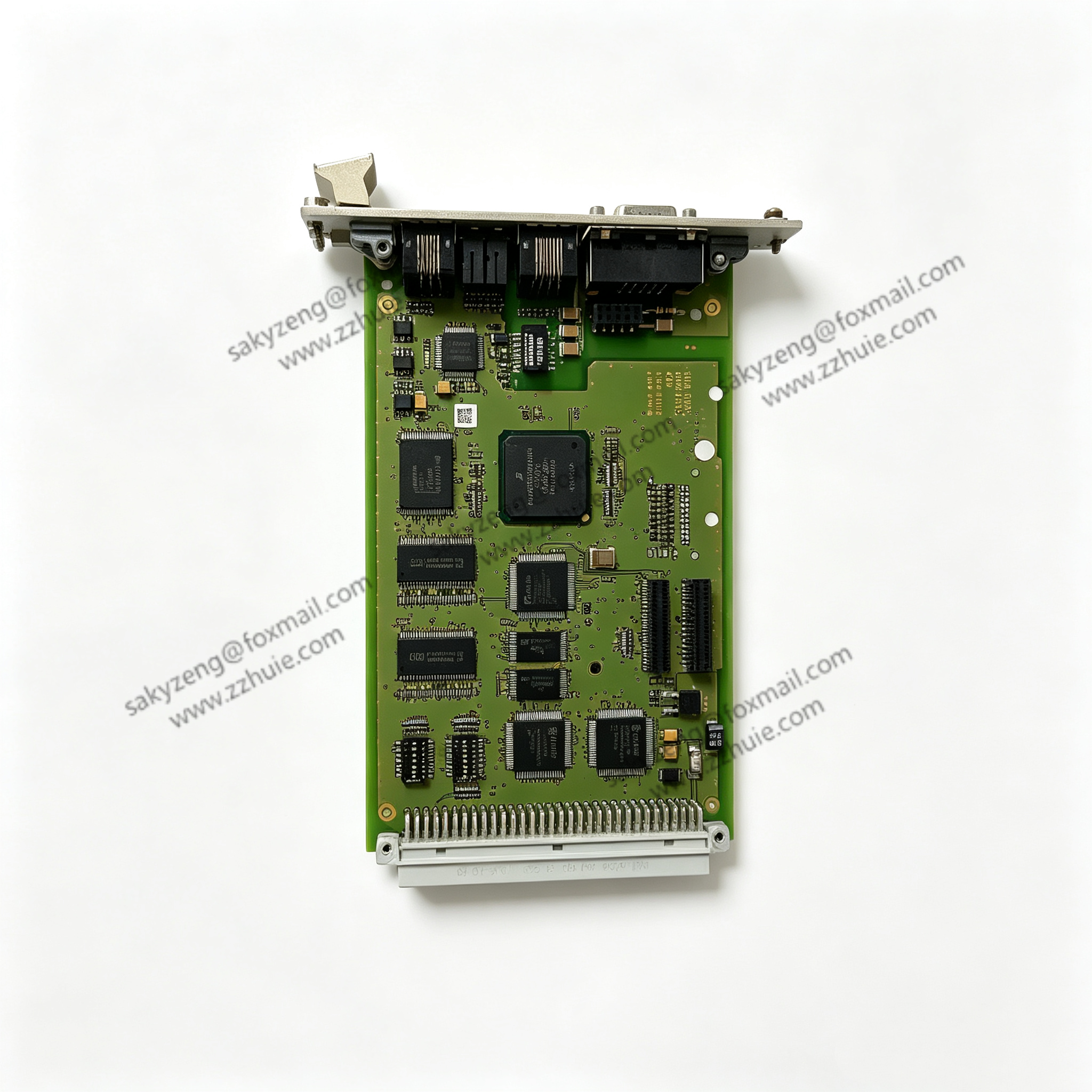

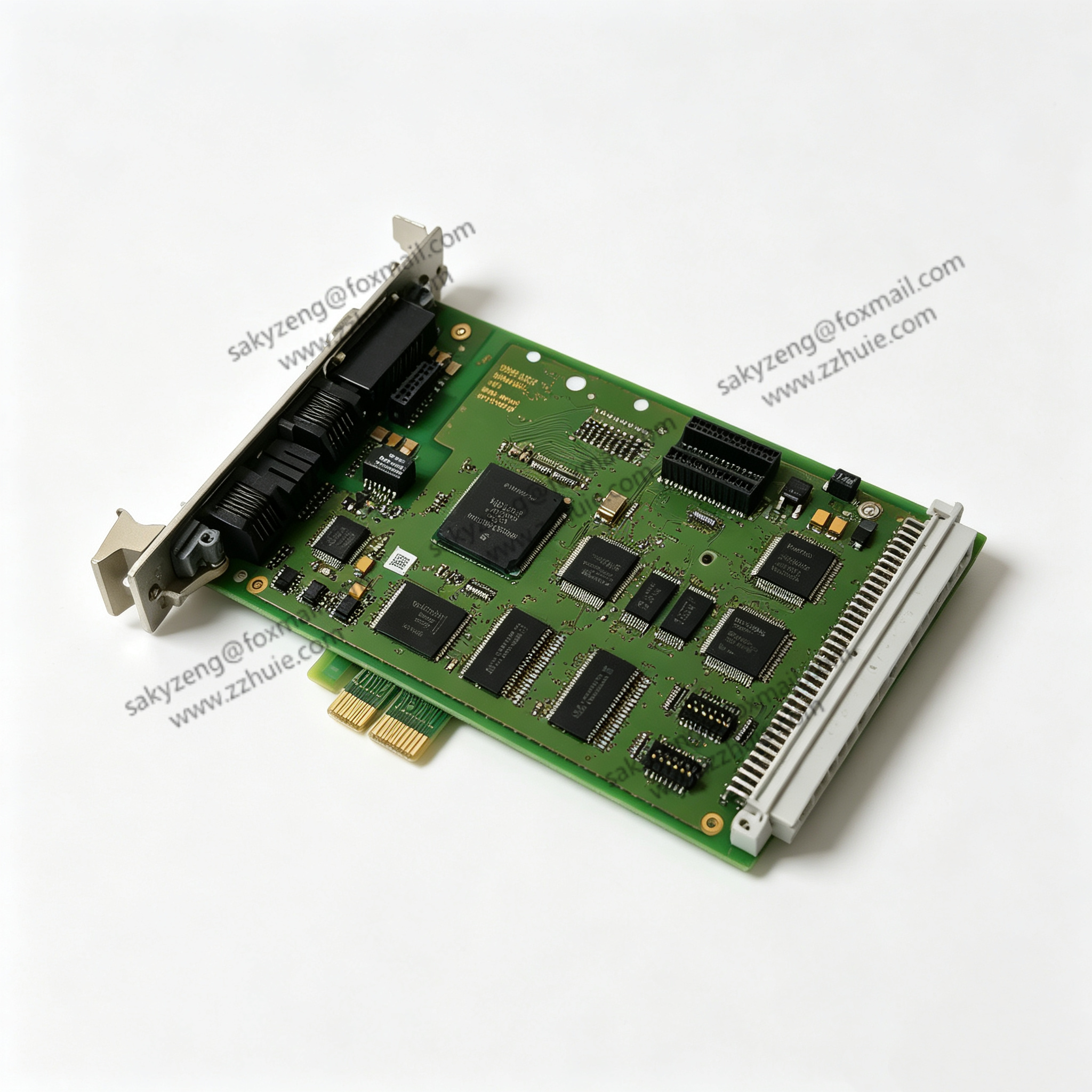

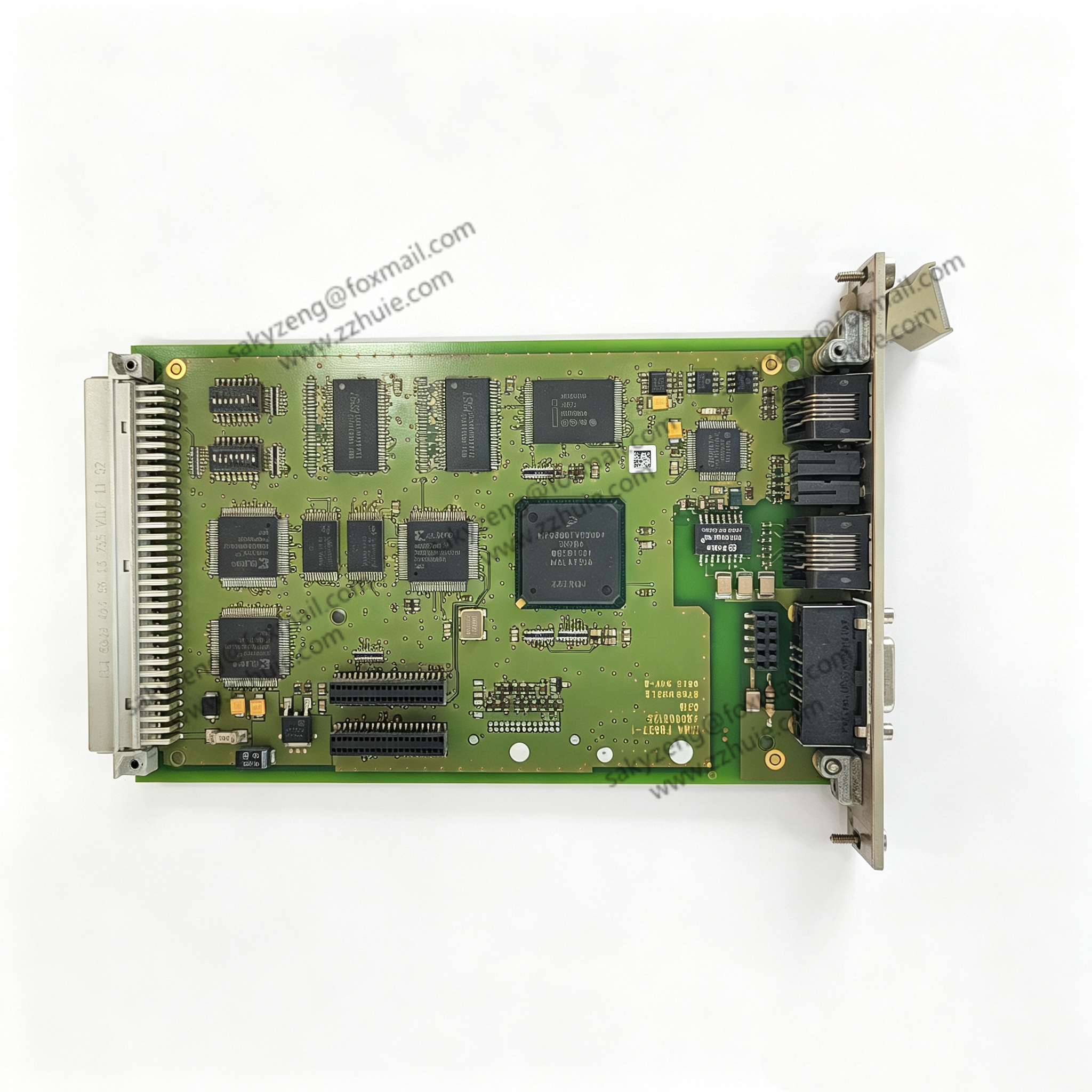

HIMA F8627X SIL3 Certified Ethernet Communication Module for HIQUAD Safety System

Product Description

F8627X is a safety-grade redundant communication module launched by German HIMA, specially matched with H41q/H51q HIQUAD safety controller platform, fully certified IEC61508 SIL3

safety integrity level.

It is the core data interaction gateway of SIS safety instrument system, equipped with dual 100BASE-TX Ethernet ports, RS232 and serial bus interfaces, supporting Modbus TCP, HSR redundancy

ring network and HIMA internal safety backplane bus communication. It realizes program downloading via ELOP II software, safety logic data uploading to upper DCS system and cross-controller

redundant data synchronization. With complete hardware self-diagnosis and fault voting mechanism, it supports hot-swap replacement, widely used as maintenance spare part for petrochemical ESD

emergency shutdown, gas plant fire & gas interlock and power plant boiler safety protection systems.

Technical Specifications

Model: F8627X, Brand: HIMA, Origin: Germany

Applicable System: HIQUAD H41q / H51q Safety PES Controller

Safety Certification: IEC 61508 SIL3, PL e

Network Interface: 2×10/100Mbps Ethernet, RS232 serial port

Supported Protocols: Modbus TCP, HSR ring redundancy, internal safety bus

Power Supply: 24VDC industrial power supply

Hot Swap: Support non-stop online hot plug replacement

Operating Temperature: -20℃ ~ +60℃ continuous operation

Storage Temperature: -40℃ ~ +70℃

Ambient Humidity: 5%–95% non-condensing environment

Protection Class: IP20 (installed inside sealed control cabinet only)

Mounting: Standard Eurocard rack plug-in installation

Net Weight: Approx. 0.45kg

Certifications: CE, ATEX, EMC industrial anti-interference certification

Key Features

SIL3 high safety certification, redundant dual-channel communication design to avoid single point failure risk.

Dual Ethernet ports support HSR ring network, guarantee uninterrupted safety data transmission.

Seamless docking with ELOP II programming tool for online download and parameter debugging.

Full-range hardware self-diagnosis function, LED indicator for quick fault location on site.

Hot-swappable modular design, replaceable without shutting down the whole SIS safety system.

Multiple industrial protocols compatible, easy connection with mainstream DCS and monitoring hosts.

Fail-safe circuit design, strong anti-interference performance for chemical plant strong EMI environment.

Mature legacy safety spare part, perfect compatibility with old-version H41q/H51q rack systems.
