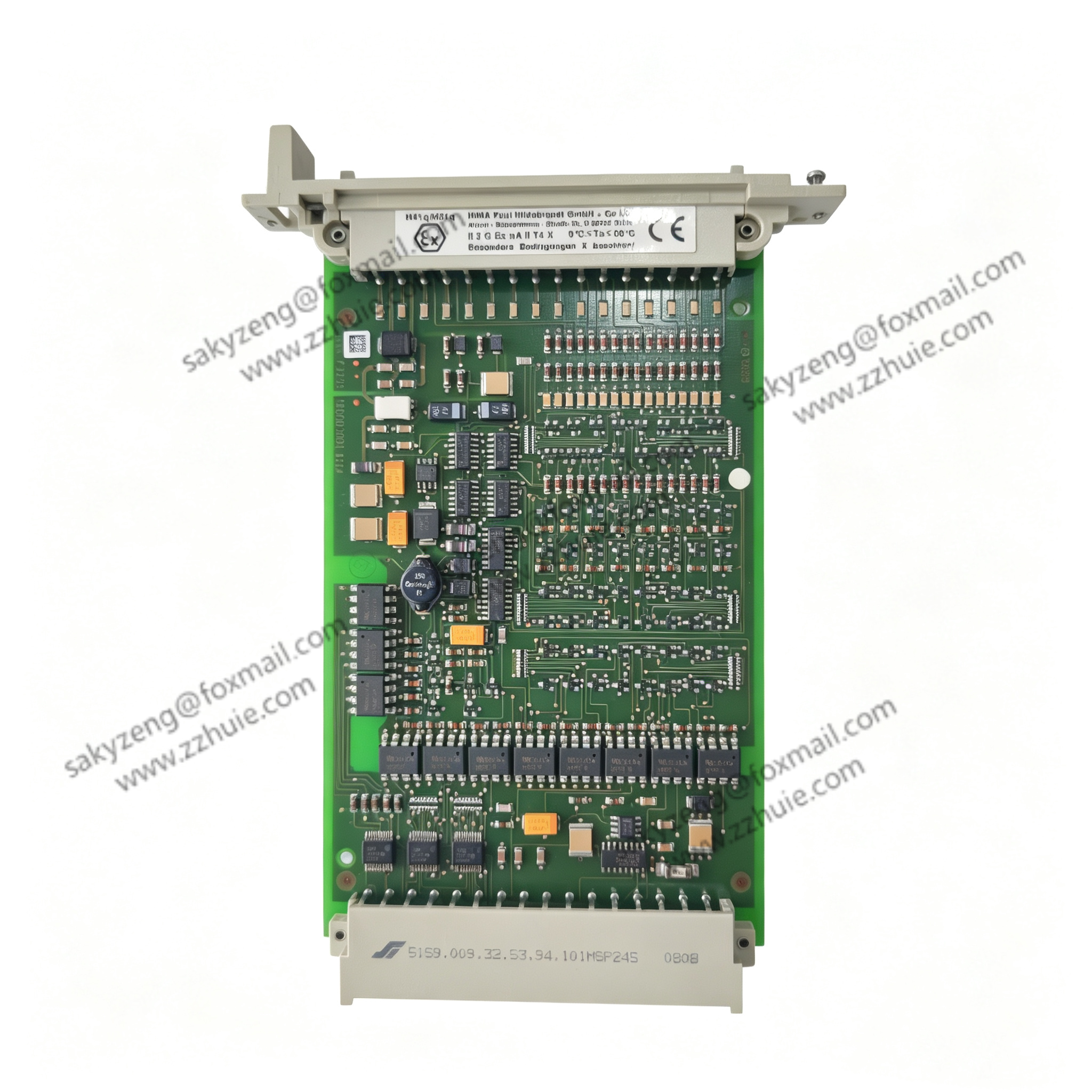

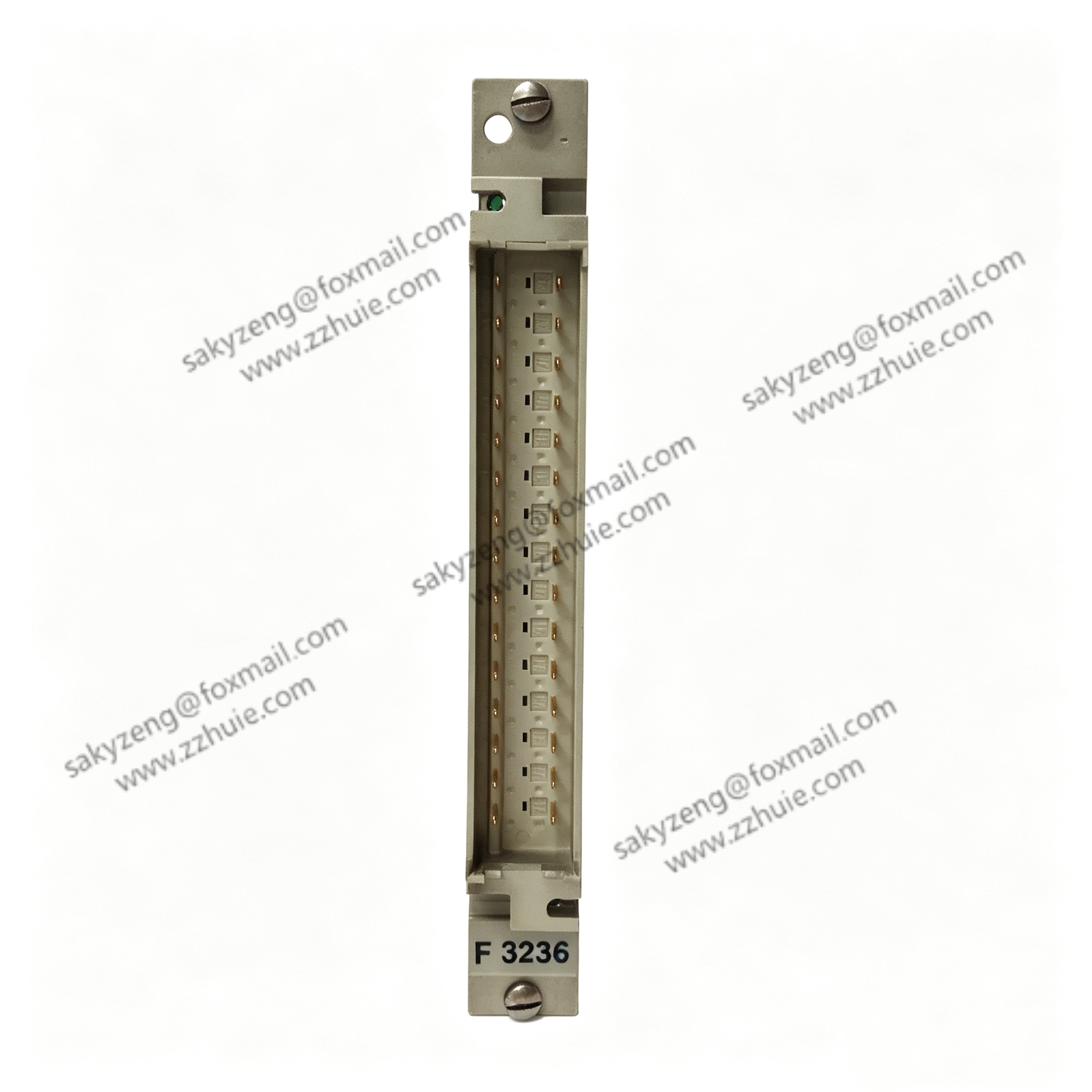

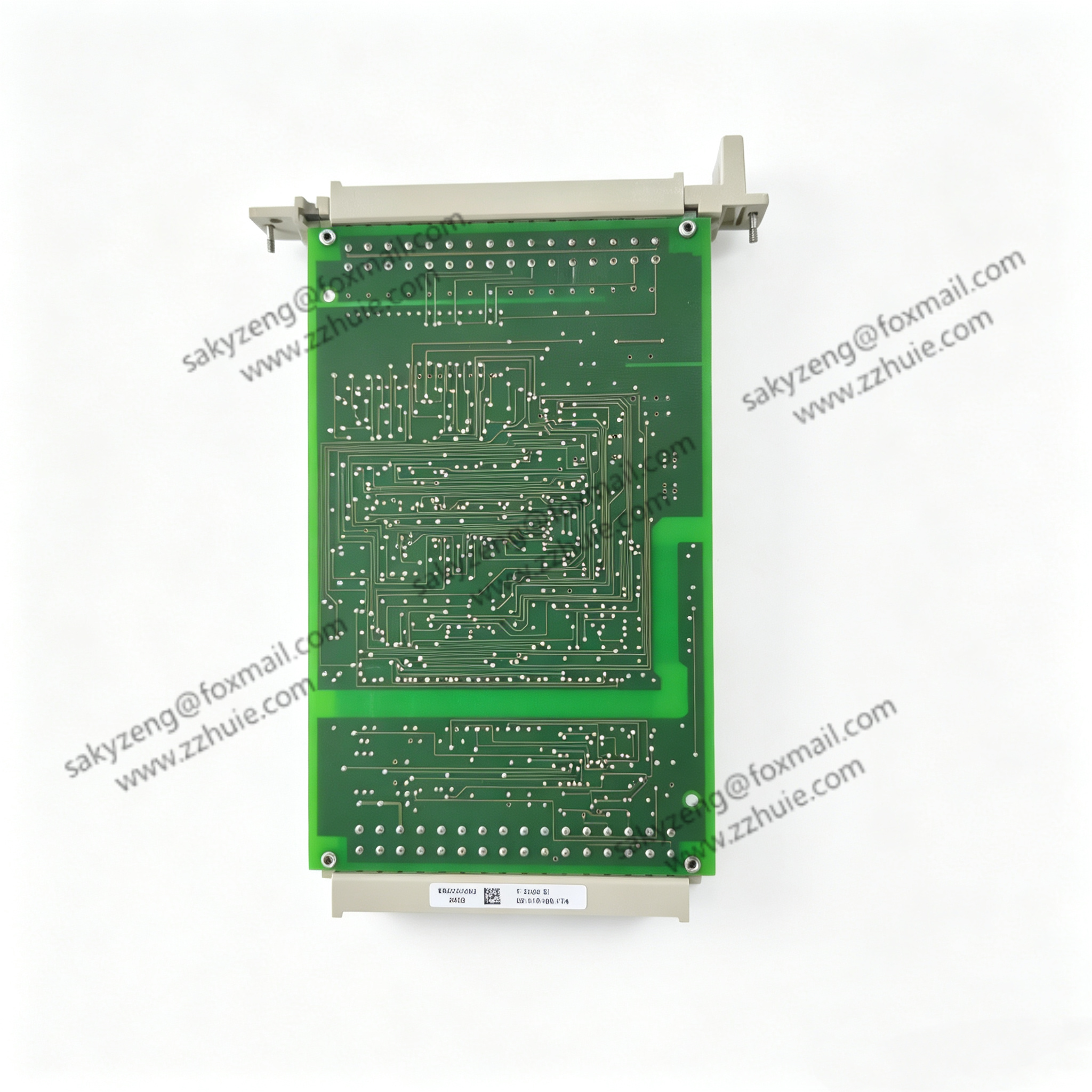

HIMA F3236 984323602 16‑Channel SIL3 Safety Digital Input Module

Product Description

F3236 (984323602) is a safety‑rated digital input module for HIMA HIMatrix safety instrumented system (SIS). It acquires field discrete signals including emergency‑stop buttons, pressure switches,

level switches and valve position feedback, supports dry‑contact and 6 mA current‑loop input modes. With channel‑level diagnosis and galvanic isolation, it transfers safe‑related status data to HIMA

safety logic solver. Complies with IEC 61508 SIL 3 safety requirement, supports hot‑swap replacement. Widely used in petrochemical, oil‑gas and power‑plant ESD, F&G and burner‑management

safety cabinets.

Technical Specifications

• Full Model: F3236
• Serial Article No.: 984323602
• Brand: HIMA, Origin: Germany
• System Compatibility: HIMatrix safety SIS rack
• Input Channels: 16‑channel safety digital input
• Input Mode: Dry‑contact switch / 6 mA current‑loop signal
• Typical Response Time: 8 ms
• Galvanic Isolation: 1500 VAC field‑to‑backplane isolation
• Supply Power: 5 VDC @120 mA, 24 VDC @200 mA
• Form Factor: 4TE standard HIMatrix rack plug‑in module
• Hot‑Swap: Support hot‑swap online replacement
• Operating‑Temperature: ‑20℃ ~ +60℃
• Storage‑Temperature: ‑40℃ ~ +85℃
• Ambient Humidity: 5%‑95% non‑condensing industrial‑grade

• Certifications: IEC61508 SIL3, TÜV, ATEX, CE, industrial EMC certification

•

Key Features

1. 16‑channel safety digital input module for HIMatrix SIS system, meets SIL3 functional‑safety standard
2. Dual‑input mode compatible with dry‑contact mechanical switches and 6 mA current‑loop field devices
3. High‑voltage galvanic isolation protects safety backplane from field‑side surge interference
4. Per‑channel fault diagnosis, detects open‑circuit and short‑circuit for fast on‑site troubleshooting
5. Hot‑swap capable, module replacement without SIS system shutdown
6. Optimized signal filtering suppresses industrial electromagnetic noise, avoids nuisance safety trips
7. Standard 4TE rack card structure, compact size saves cabinet installation space

8. Strict TÜV safety certification and factory burn‑in test for critical continuous‑process safety loops
