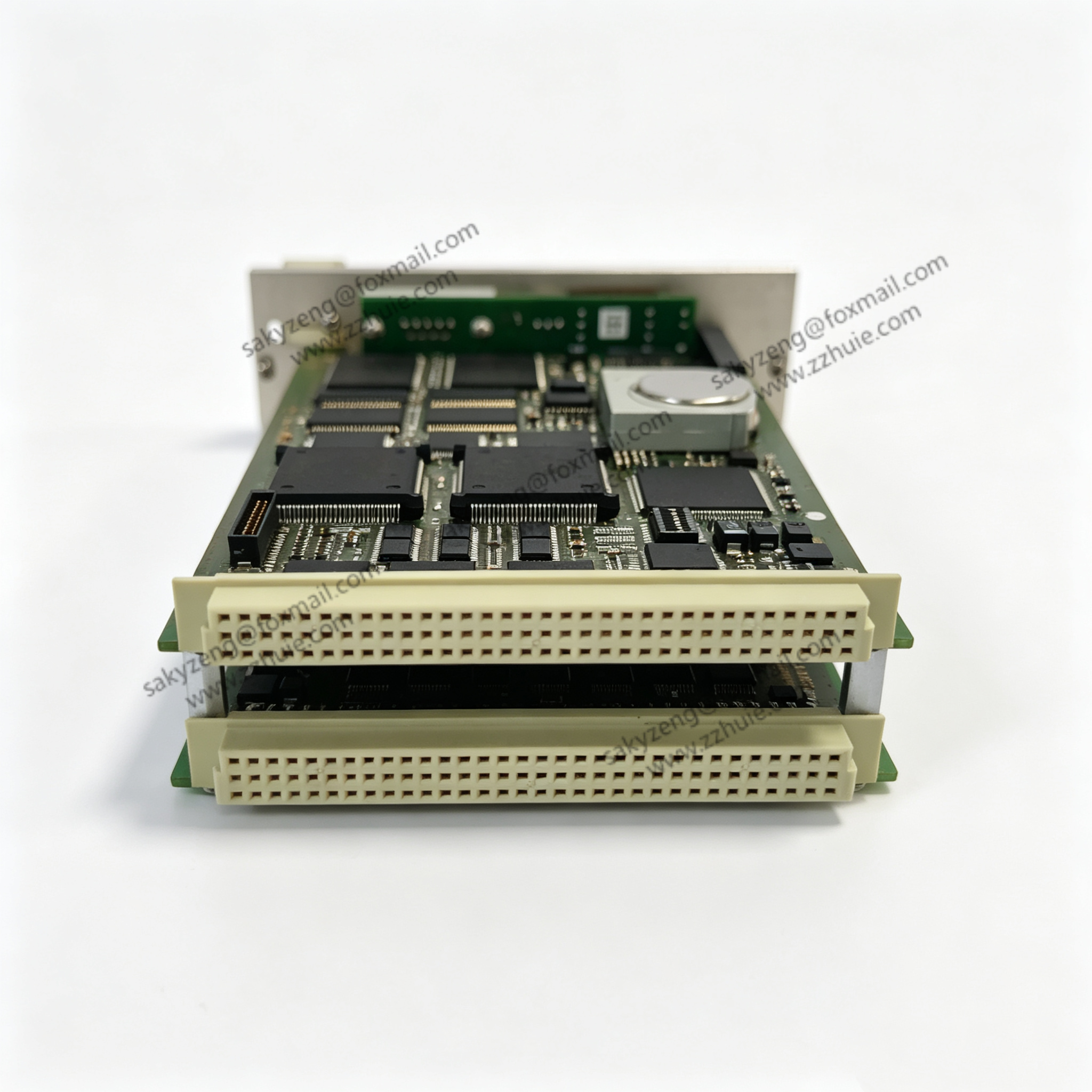

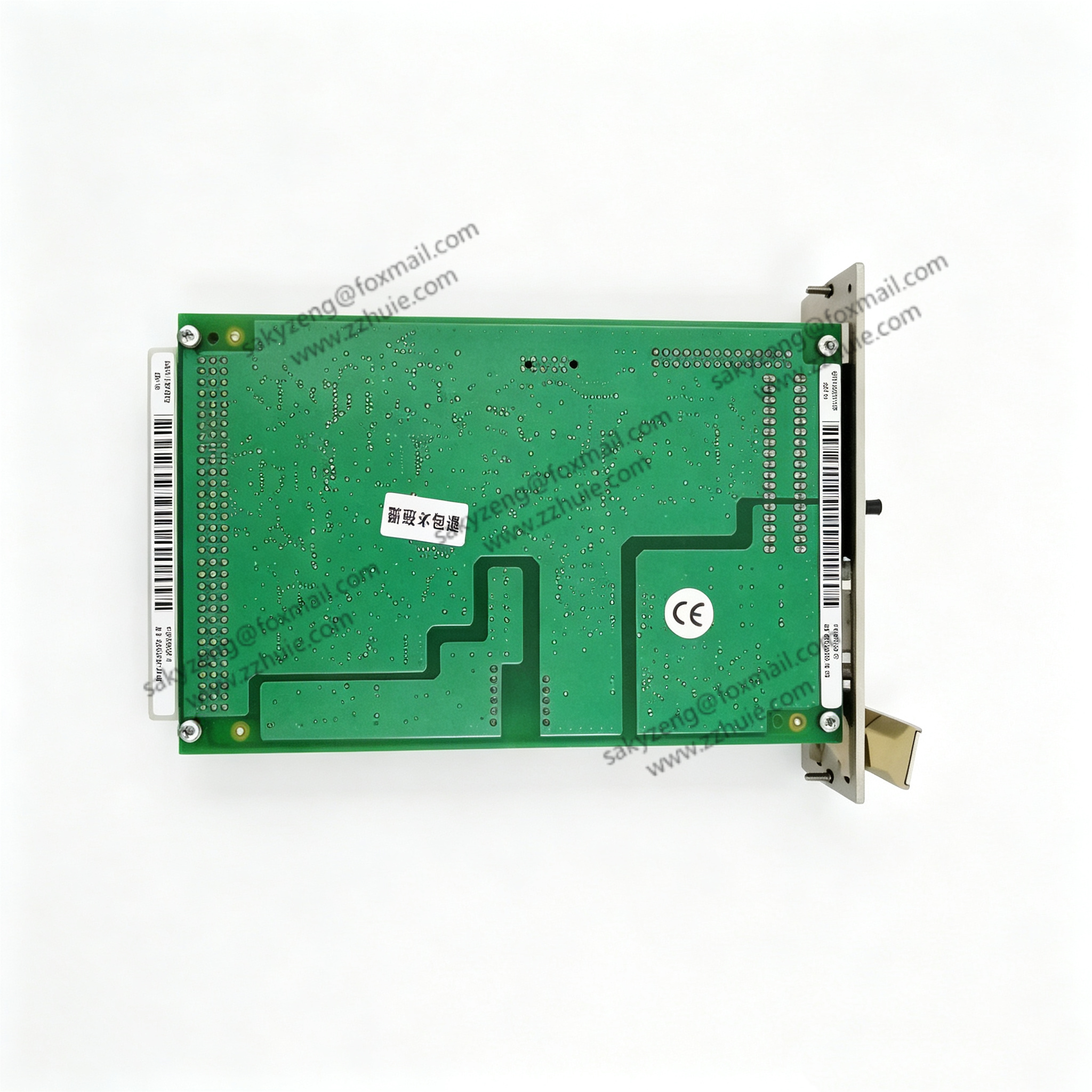

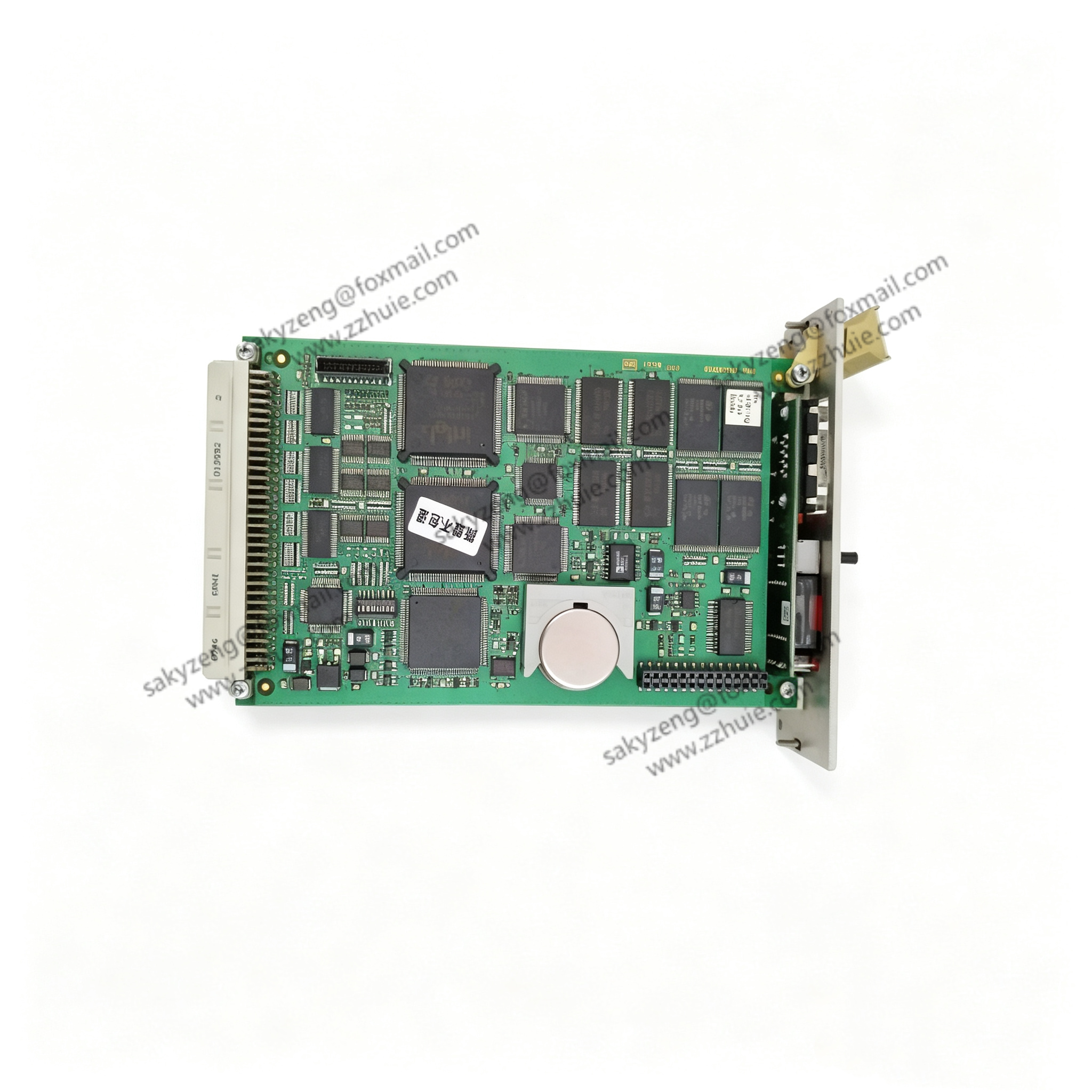

HIMA F8652X 98486526X Safety Central CPU Module for H41q‑H51q PES System

Product Description

F8652X (984865265) is the central safety‑related CPU module for HIMA H41q‑H51q programmable electronic safety system(PES). It adopts dual clock‑synchronized processor architecture,

executes safety interlock logic, sequence control and system fault diagnosis for SIS. It communicates with I/O modules via backplane bus, provides serial interfaces for engineering download

and upper‑system data exchange. Complies with IEC61508 SIL3 safety standard. It is widely used in petrochemical, oil‑gas, power‑plant ESD, F&G safety instrumented cabinets.

3. Technical Specifications

• Full Model: F8652X
• Article No.: 984865265
• Brand: HIMA, Origin: Germany
• Applicable System: HIMA H41q‑MS / H41q‑HS / H51q‑HRS PES safety rack
• Module Type: Safety central CPU / logic solver
• Processor: Dual synchronous safety‑processor architecture
• Safety Level: IEC61508 SIL3, TÜV‑certified
• Communication Interface: Dual RS232 serial ports, system backplane bus
• On‑board Display: Front‑panel digital status display and LED indicator
• Installation: Standard Eurocard slot‑mount inside safety rack
• Power Supply: Rack backplane 24 VDC
• Operating‑Temperature: 0℃ ~ +60℃
• Storage‑Temperature: ‑40℃ ~ +85℃
• Ambient Humidity: 5%‑95% non‑condensing industrial‑grade
• Protection Class: IP20 (cabinet internal use)

• Certifications: TÜV SIL3, CE, industrial EMC certification

•

4. Key Features

1. Dual synchronous‑processor safety architecture, realizes high‑integrity safety‑logic computation for SIS‑ESD system
2. Meets IEC61508 SIL3 safety requirement, suitable for high‑risk process safety‑instrumented loops
3. Front‑panel digital display and multi‑LED indicators for CPU running, fault and I/O status diagnosis
4. Dual RS232 serial interfaces for program download, monitoring and data communication with DCS/SCADA
5. Powerful internal self‑diagnosis function, high fault‑detection coverage for hardware failure
6. Standard Eurocard plug‑in card structure, convenient on‑site replacement and maintenance
7. Optimized anti‑interference layout, adapts to harsh petrochemical cabinet electromagnetic environment
8. TÜV safety certification and strict factory burn‑in test for continuous critical‑process safety applications
