ABB 3BHB007211R0105 (XV C768 AE105) Analog Input Module

Product Description

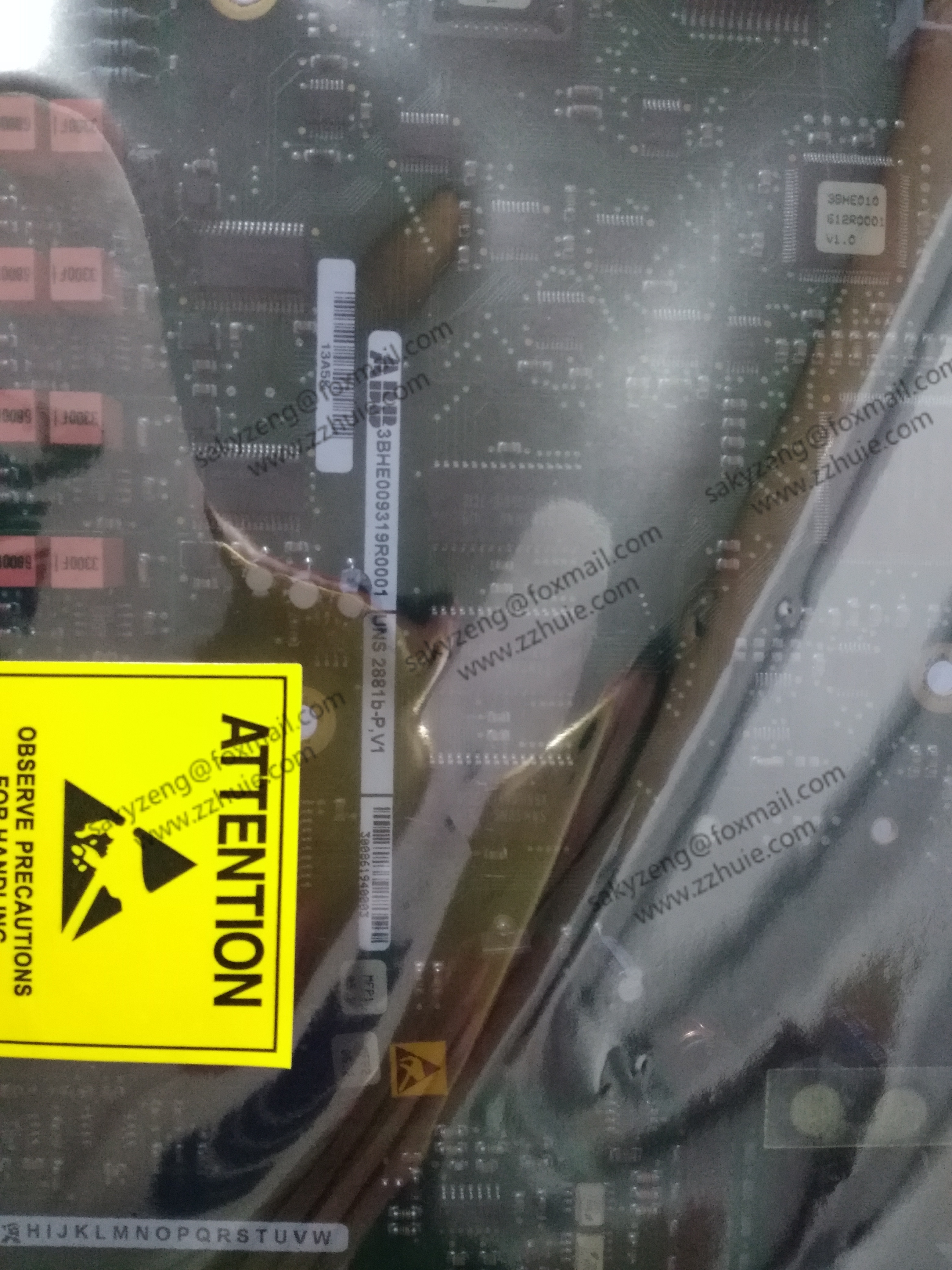

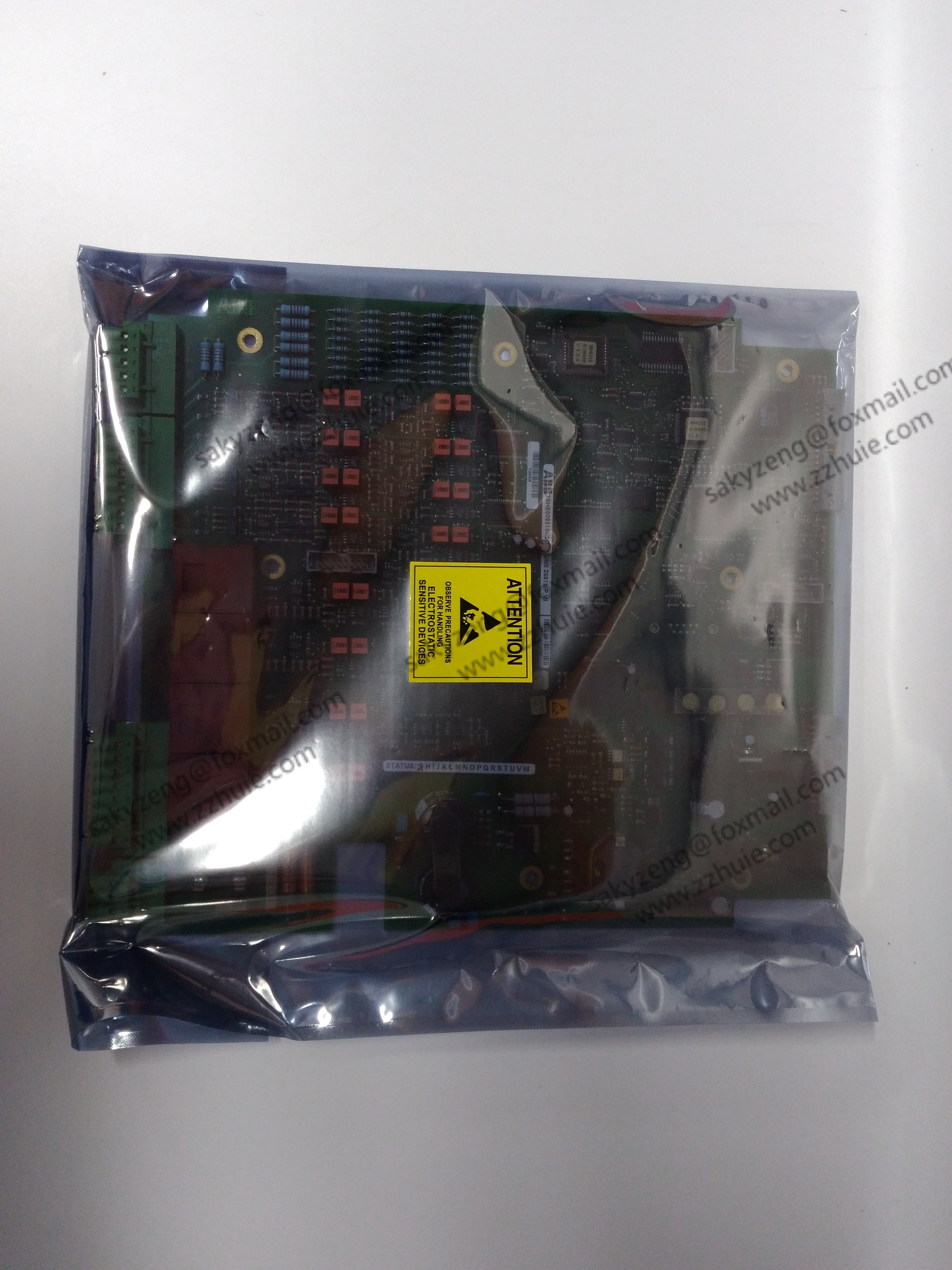

ABB 3BHE009319R0001 is the MUB system board for ABB UNITROL 5000 excitation system. It performs real-time signal measurement, data processing and communication transmission,

supports 4-20mA analog signal acquisition, used for generator excitation cabinet maintenance and replacement.

Technical Specifications

• Part Number: 3BHE009319R0001 (UNS2881B-P V1)
• Brand: ABB
• Type: MUB Measurement Unit Board
• Power Supply: 24VDC
• Analog Input: 0-10V, 4-20mA
• Working Temp: -20℃ ~ +60℃
• Origin: Switzerland
• Communication: RS485, Profibus-DP

Key Features

1. High precision analog signal sampling and conversion
2. Multi-protocol communication interface for system data exchange
3. Strong EMC anti-interference for power plant harsh environment
4. Onboard fault detection and diagnostic function
5. Standard rack-mounted design, easy installation
