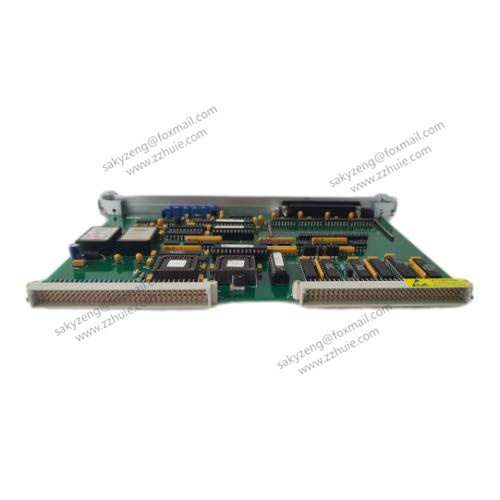

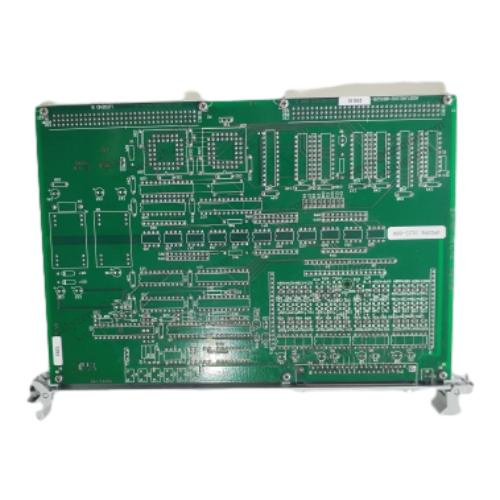

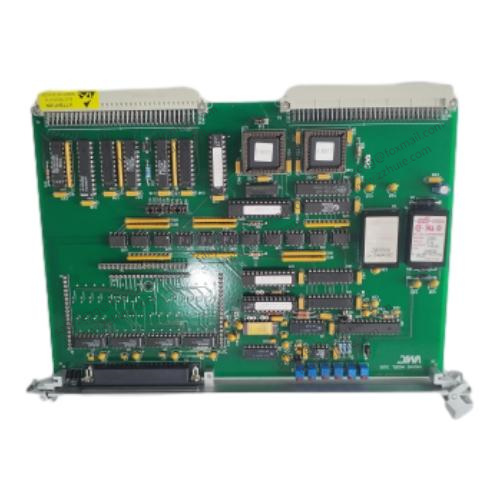

GE VMIVME-3125 High Performance Analog to Digital Conversion (A/D) Board

GE VMIVME-3125 is a high-performance analog-to-digital conversion (A/D) board designed for industrial automation applications, used to convert analog signals from

sensors in the real world into digital data that can be processed by computers.

· Number of channels: Supports 32 single ended inputs or 16 differential inputs.

· Resolution: 12 bits, capable of accurately converting analog signals into digital data.

· Scanning rate: The total scanning rate is 40kHz and does not require software settings.

· Input voltage range: Users can set the input voltage range through programming, from ± 50mV to ± 10Vdc, and the gain can be selected as 1, 10, or 100 times. In addition,

there are optional current input ranges, including 0-20mA, 4-20mA, and 5-25mA.

· Data access mode: Supports D16, D08 (EO), and D08 (O) access modes.

· Isolation: Provides 1000Vdc isolation between analog ground and digital ground to prevent crosstalk and ensure accurate measurements in noisy environments.

· Bus interface: VME bus interface, easy to integrate with various industrial control systems.

· Data storage: The converted data is stored in dual port memory and can be accessed immediately through the VME bus.

· I/O addressing: occupying 128 bytes of VME bus short I/O addressing space, configurable to any 128 byte boundary.

· Dimensions: 19 inches (483mm) x 8 inches (203mm) x 11 inches (279mm).

· Weight: Approximately 1020g.

· Automatic scanning: With efficient automatic scanning function, signal acquisition of multiple channels can be achieved without complex software settings.

· Input protection and filtering: With overvoltage protection function and low-pass filtering at 50kHz, the module enhances its anti-interference ability and stability in

· industrial environments.
