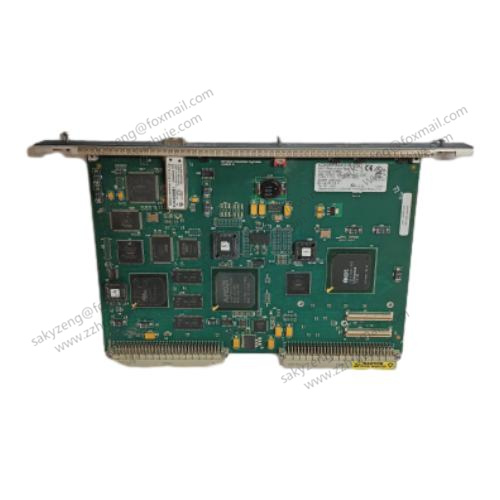

GE IC698RMX016-ED | Redundant Memory Swap Module

GE IC698RMX016-ED redundant memory swapping module belongs to the PACSystem RX7i platform and is now part of Emerson Automation. It was previously

produced by GE Intelligent Platform.

· Mainly used for redundant CPU configuration or as a reflective memory module accessible through the network.

· Memory: Equipped with 16MB SDRAM.

· Size: 6.299 inches (width) x 9.187 inches (height).

· Working voltage:+5VDC, provided by the power supply.

· Current requirement: 1.8 amperes.

· Connector: Equipped with fiber optic LC type connector, compliant with IEC 61754-20 standard, using zirconia ceramic plug, maximum insertion loss of 0.35dB, return

loss of -30dB.

· Optical network speed: 2.12Gbaud.

· Transmission rate: 2.1GB/s.

· Packet size: Dynamic packet size ranging from 4 to 64 bytes, controlled by the switching module.

· Number of nodes: Each network can use a maximum of 256 nodes.

· Redundant configuration: In redundant configuration, when the main CPU fails, the module will automatically switch to the backup CPU to ensure the reliability and stability

of the system.

· High speed data transmission: With a high-speed data transmission rate, it can achieve fast data exchange and storage, meeting the requirements of real-time and large

data applications.

· Fiber optic connection: Fiber optic LC connectors can achieve long-distance data transmission, with higher data rates, better anti-interference capabilities, and transmission

stability.

· Easy to expand and maintain: Adopting standardized interfaces and specifications, it is easy to integrate and expand with other devices and systems, and has the

characteristic of easy maintenance, making it convenient for users to troubleshoot and repair.

· CPU requirement: PACSystems RX7i CPU, firmware version 2.00 or higher.

· Software requirements: PC compatible computer, installed with Cimplicity Machine Edition - Logic Developer PLC, programming software version 4.5 or higher.

· Installation location: It is recommended to install in slots 4 and 3 of RX7i rack 0 (main) to provide VME interrupt request priority, but it is not a strict requirement.
