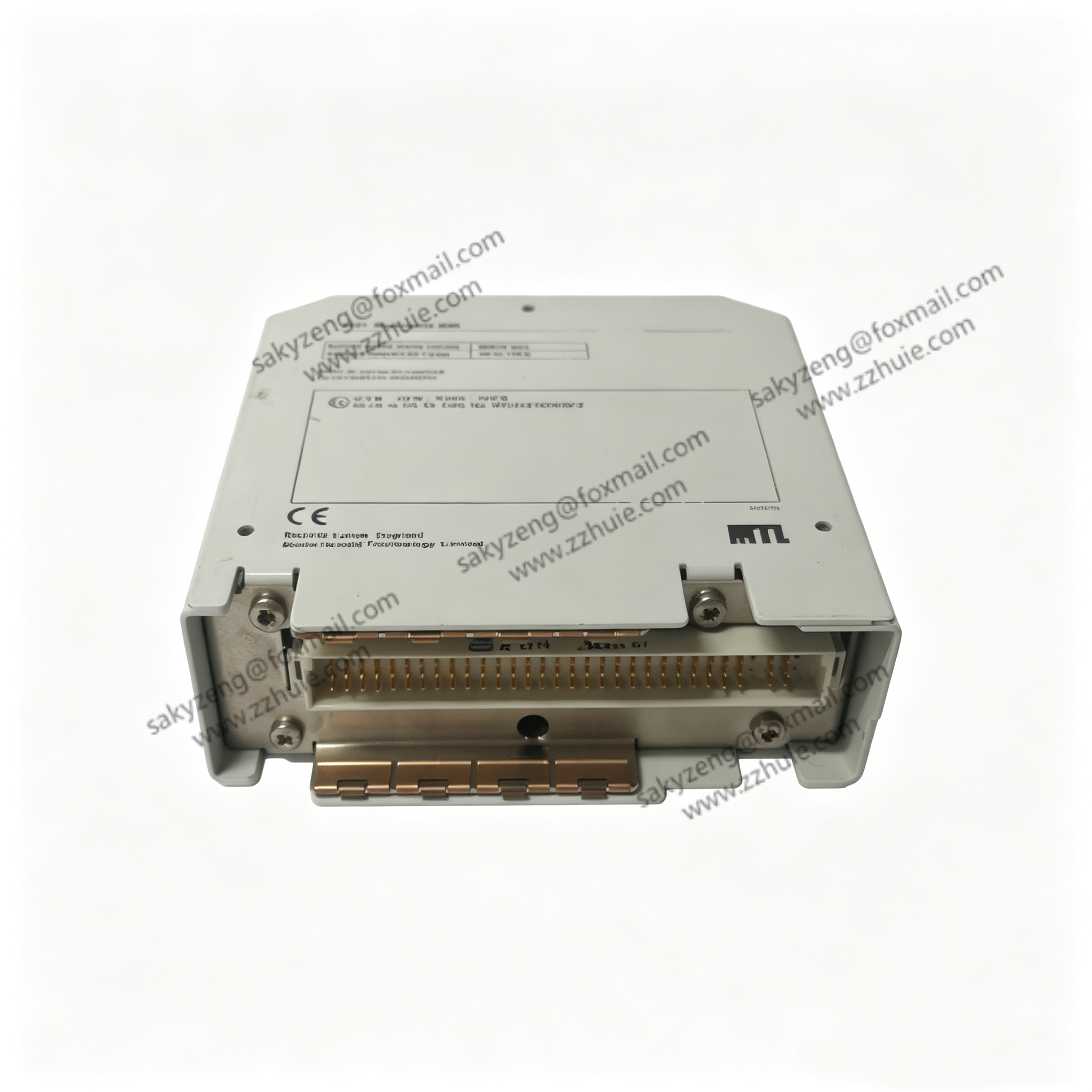

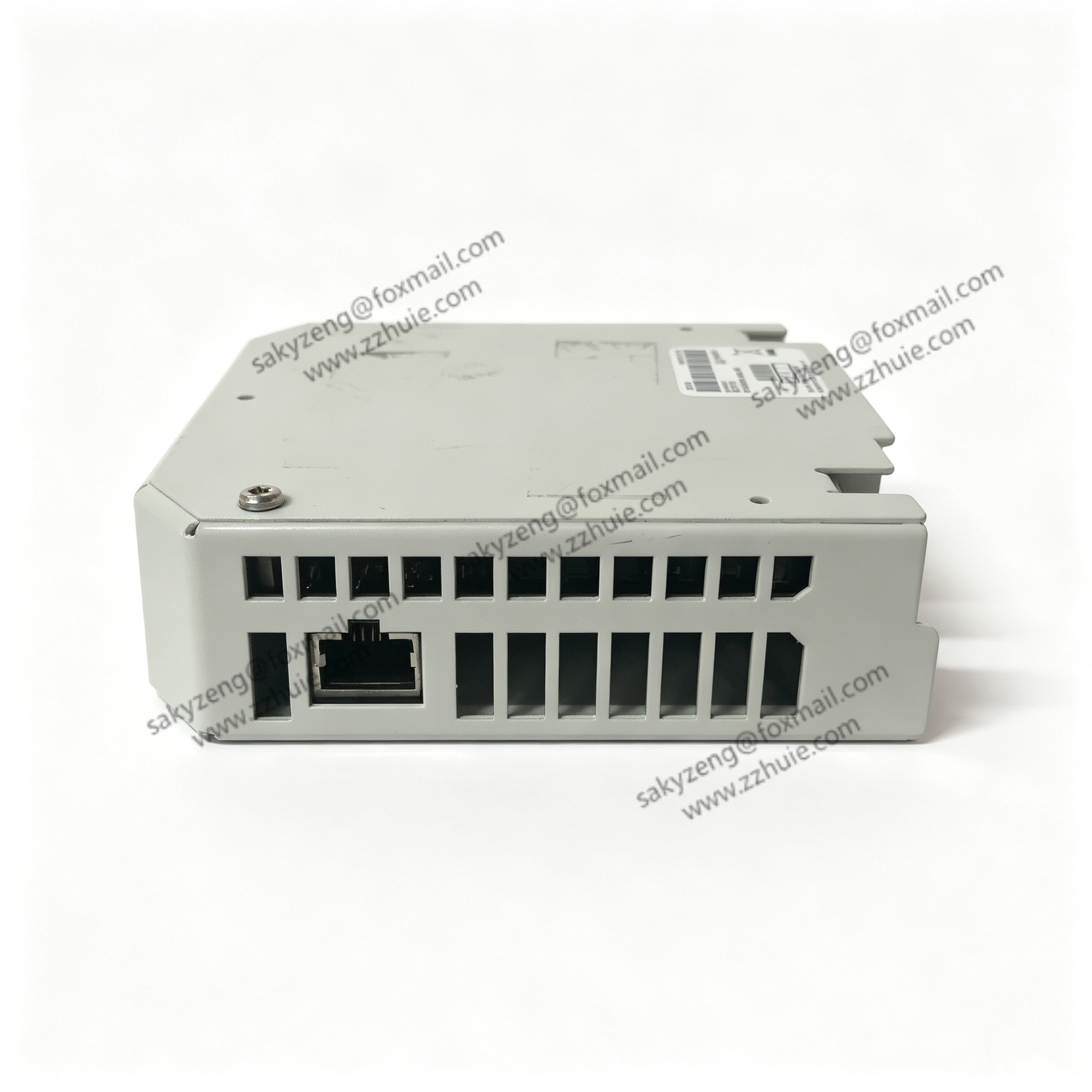

EATON MTL 8507‑BI‑DP PROFIBUS‑DP Bus Interface Module for PAC8000 I/O System

Product Description

8507‑BI‑DP is a PROFIBUS‑DP Bus Interface Module (BIM) developed by Eaton MTL for PAC8000 remote I/O system. It serves as communication gateway between PAC8000 I/O rack and

PROFIBUS‑DP master controller, realizing bidirectional real‑time data interaction for up to 24 connected I/O modules. Supports redundant operation, HART pass‑through function and extended

channel diagnostic information, stores configuration parameters inside non‑volatile memory. Widely used in petrochemical, oil‑gas, chemical plant hazardous‑area process‑control cabinetsEaton.

Technical SpecificationsFull Model: 8507‑BI‑DP Brand: Eaton MTL, Origin: United Kingdom Product Type: PROFIBUS‑DP Bus Interface Module (BIM) Applicable System: Eaton MTL PAC8000 remote I/O rack Profibus‑DP Baud Rate: Up to 12 Mbaud Maximum Connected I/O Modules: 24 pieces Redundancy: Support redundant BIM deployment Special Function: HART pass‑through for HART field instruments Configuration Storage: On‑board non‑volatile memory Power Supply: 24 VDC Installation: Standard DIN‑rail mounting Protection Class: IP20 Operating‑Temperature: ‑40℃ ~ +85℃ Storage‑Temperature: ‑40℃ ~ +85℃ Ambient Humidity: 5%‑95% non‑condensing industrial‑grade Certifications: CE, ATEX, IECEx, industrial EMC certification

Key FeaturesGateway module for PAC8000 I/O rack, connects remote I/O to PROFIBUS‑DP master host Support maximum 24 PAC8000 I/O modules on one rack, flexible system expansion Redundant working mode improves communication reliability for critical process loops Built‑in HART pass‑through function, realize parameter reading & modification for HART transmitters Non‑volatile memory retains configuration data after power loss Extended module & channel diagnostic information for fast field fault locating DIN‑rail compact installation, easy assembly and replacement inside control cabinet Factory full‑function burn‑in test, suitable for petrochemical hazardous‑area process‑control applications
