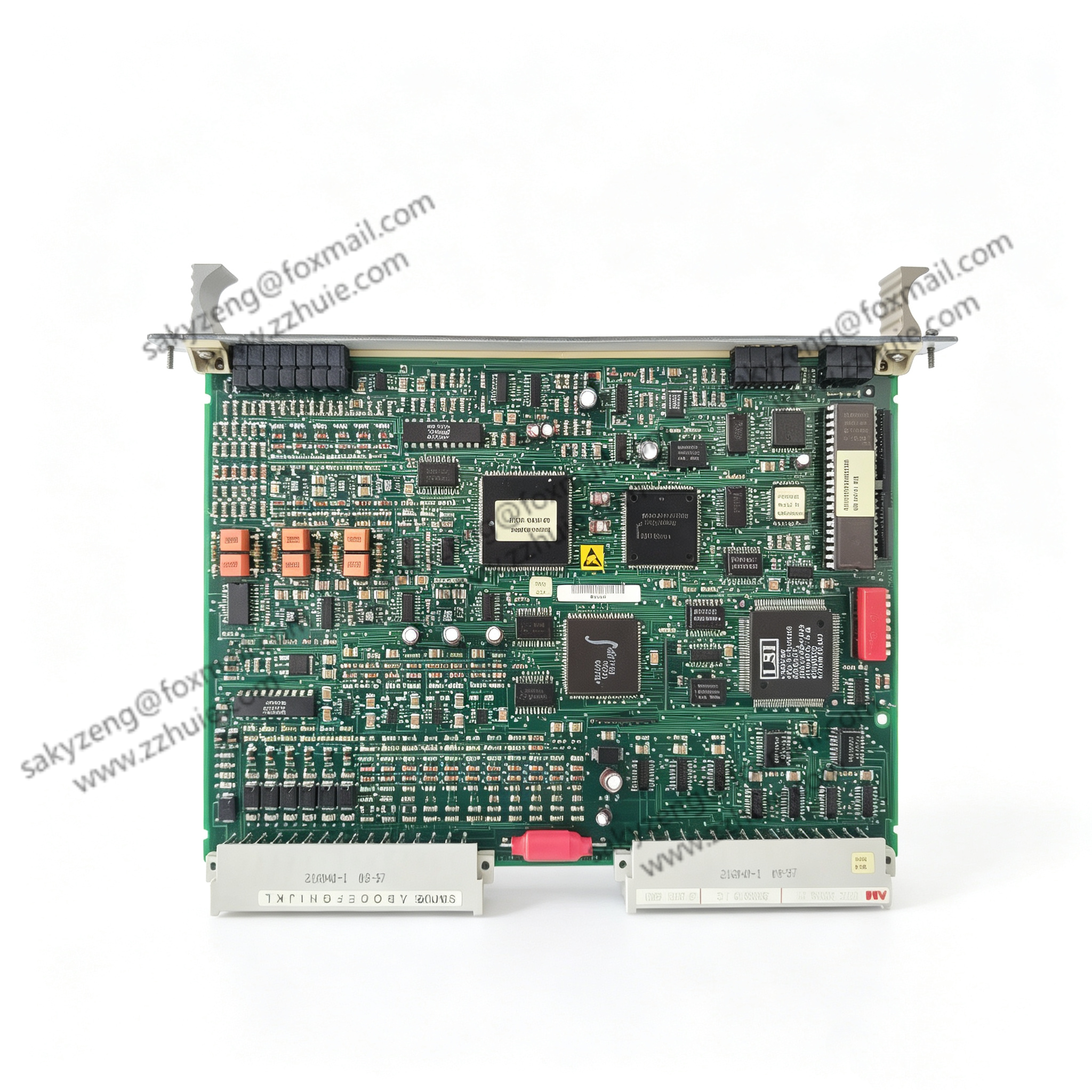

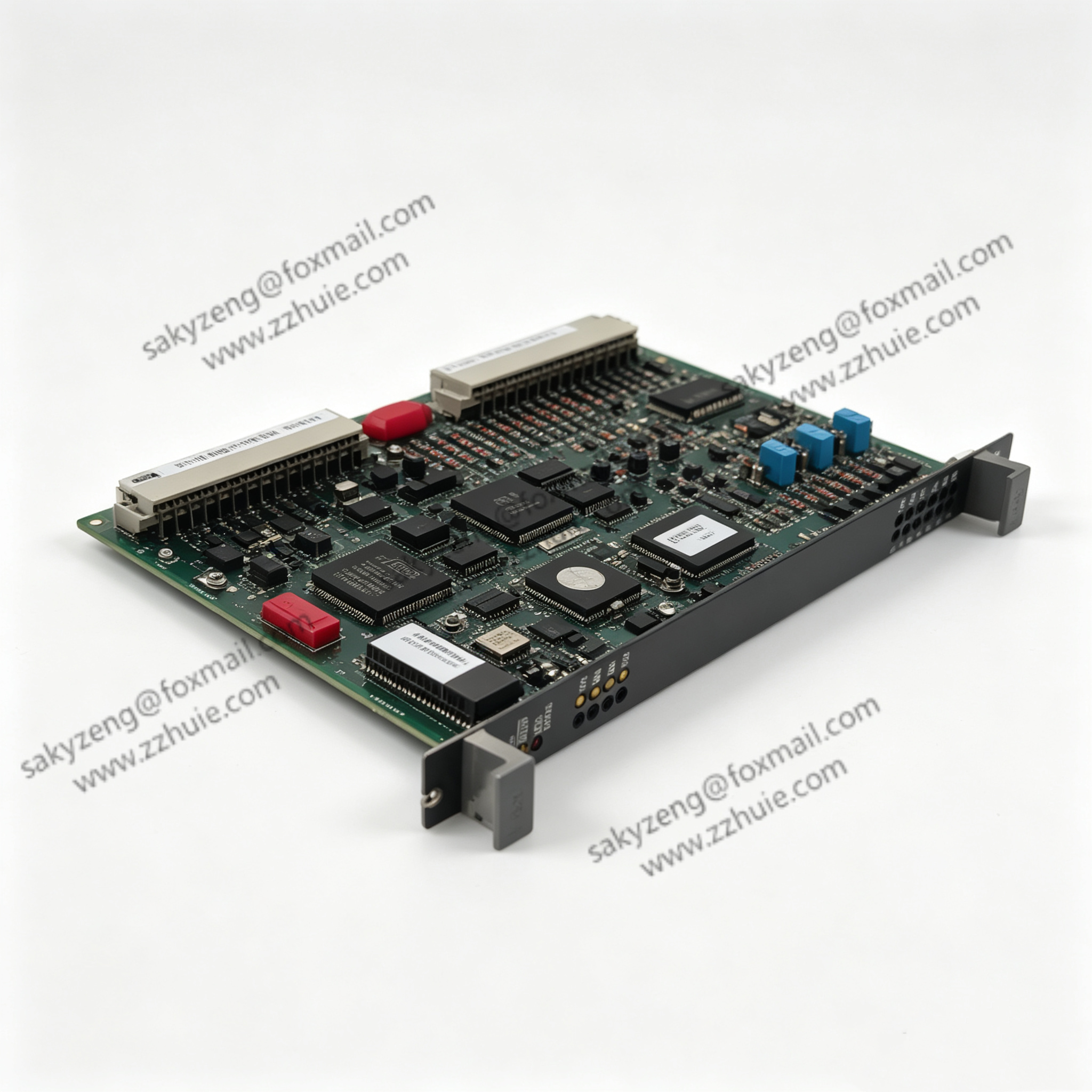

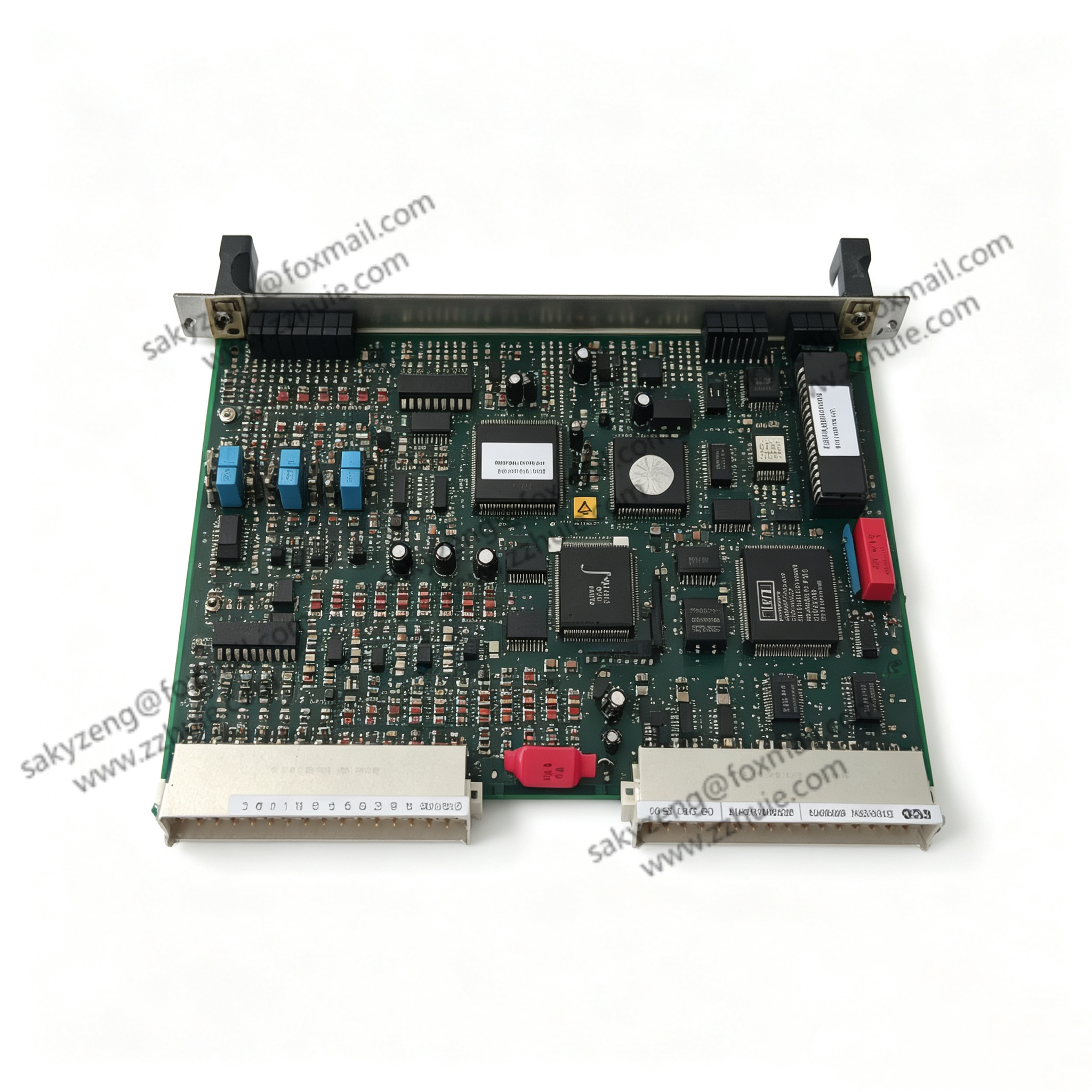

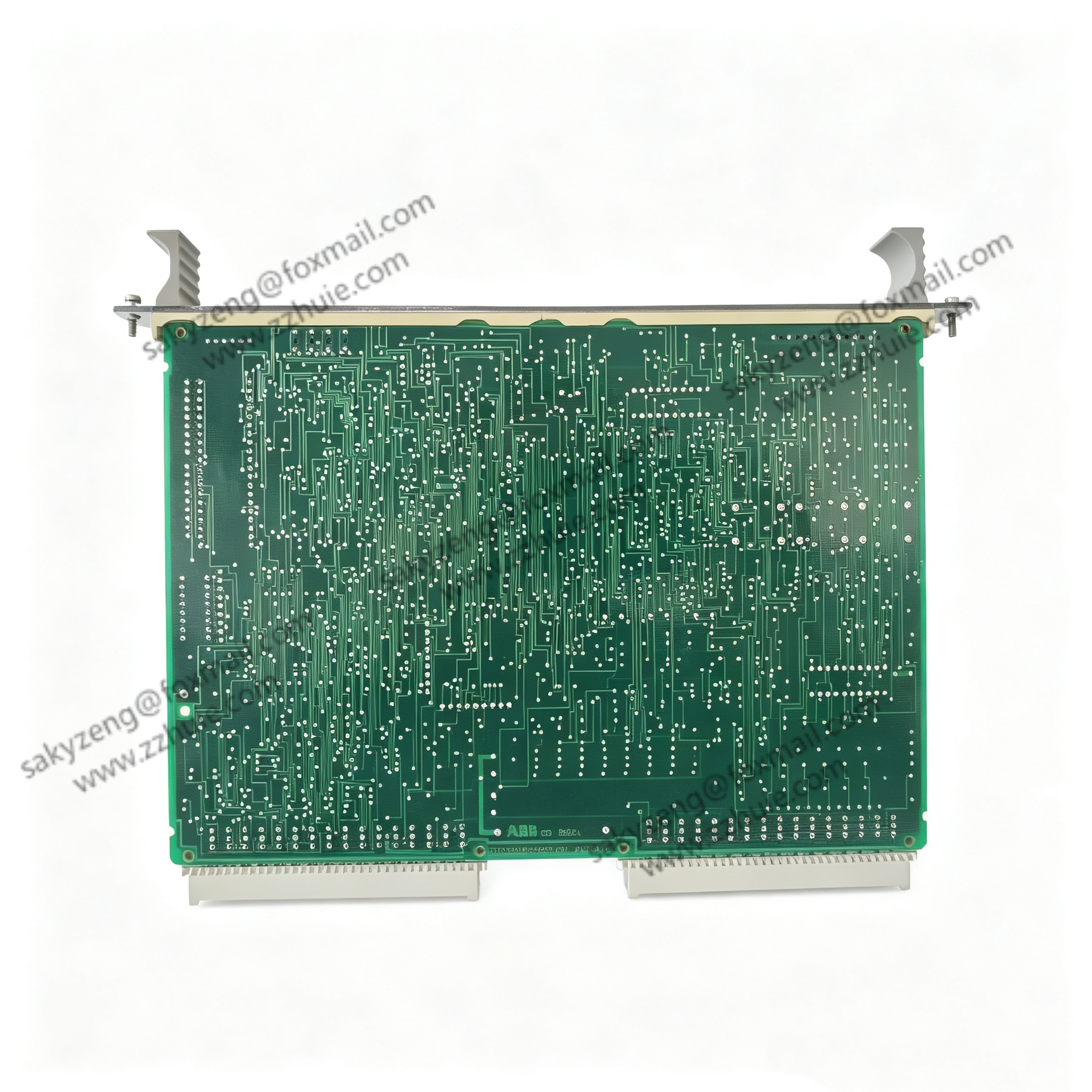

ABB GDB021BE01 HIEE300766R0001 Gate Driver Control Board for Generator Excitation System

Product Description

GDB021BE01 (HIEE300766R0001) is a Eurocard‑format plug‑in gate driver control board for ABB generator excitation control system. It receives firing pulse commands

from main excitation controller, generates, amplifies and distributes trigger gate signals for thyristor power rectifier bridges. It executes pulse‑amplitude adjustment, signal isolation,

pulse monitoring and fault detection functions. It collects feedback status of power rectifier unit and sends fault alarm back to main controller. Widely deployed in thermal power,

hydropower plant generator excitation cabinets.

Technical SpecificationsFull Model: GDB021BE01 Article No.: HIEE300766R0001 Brand: ABB, Origin: Switzerland Application: ABB generator excitation control system Board Type: Eurocard plug‑in gate driver control PCB Function: Thyristor firing pulse generation, amplification and distribution Galvanic Isolation: High‑voltage isolation between control logic and power trigger circuit Input Signal: Control pulse signal from main excitation controller Output: Multiple channels amplified gate trigger pulses for thyristor rectifier Power Supply: Internal rack‑supply ±15 VDC, 24 VDC Installation: Standard Eurocard slot‑mount inside excitation cabinet Operating‑Temperature: ‑20℃ ~ +60℃ Storage‑Temperature: ‑40℃ ~ +85℃ Ambient Humidity: 5%‑95% non‑condensing industrial‑grade Protection Class: IP20 (cabinet internal usage) Certifications: CE, IEC power‑industry EMC certification

Key FeaturesDedicated gate‑driver board for generator excitation thyristor rectifier firing‑pulse control Multi‑channel pulse amplification and distribution, drives high‑power thyristor rectifier bridge High‑strength galvanic isolation protects control circuit from power‑side high‑voltage interference Real‑time pulse status monitoring, detects pulse loss and rectifier unit fault On‑board fault self‑diagnosis, outputs alarm signal to excitation main controller Standard Eurocard plug‑in structure, convenient on‑site replacement and maintenance Optimized anti‑interference layout, adapts to high‑EMI excitation cabinet environment Factory burn‑in test, stable long‑term running for power‑generation generator excitation loops
