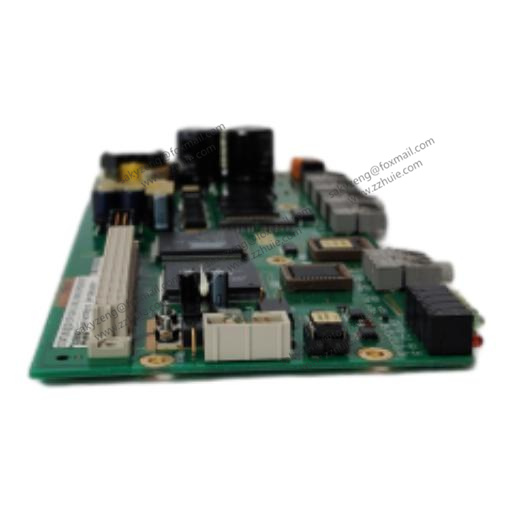

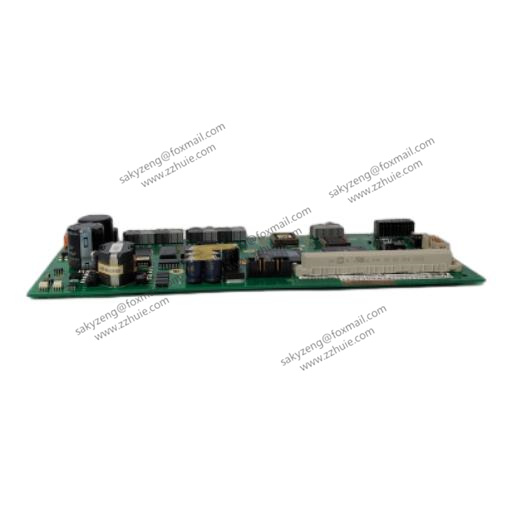

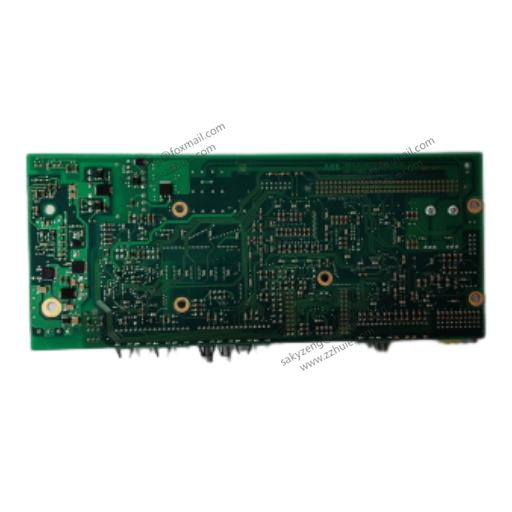

ABB PPC905AE101 3BHE014070R0101 Controller Module

ABB PPC905AE101 (3BHE014070R0101) is a high-performance general-purpose processor module serving as the core controller for ABB Symphony®Plus DCS

and 800xA extended automation systems. It executes control logic, data processing, and system management, ensuring stable and efficient operation of industrial control stations.

Widely used as a reliable replacement part for industrial automation equipment maintenance.

Technical Specifications

Part Number: PPC905AE101 / 3BHE014070R0101

Manufacturer: ABB

Processor: 32-bit PowerPC architecture

Memory: 64 MB user memory

Power Supply: 24V DC ±20% / AC 85-264V

Operating Temperature: -20°C ~ +60°C

Humidity: 5%–95% non-condensing

Protection Grade: IP20 (rear terminals)

Net Weight: Approx. 0.6 kg

Certification: CE, UL, RoHS, cULus, ATEX

Origin: Switzerland

Key Features

High-speed PowerPC processor ensures fast execution of complex control algorithms.

Supports redundant configuration and hot-swap for enhanced system reliability and uptime.

Integrated Ethernet and multiple fieldbus protocols enable seamless communication.

Industrial-grade design with wide temperature tolerance and anti-interference performance.

Compact rack-mount structure saves cabinet space and facilitates maintenance.
