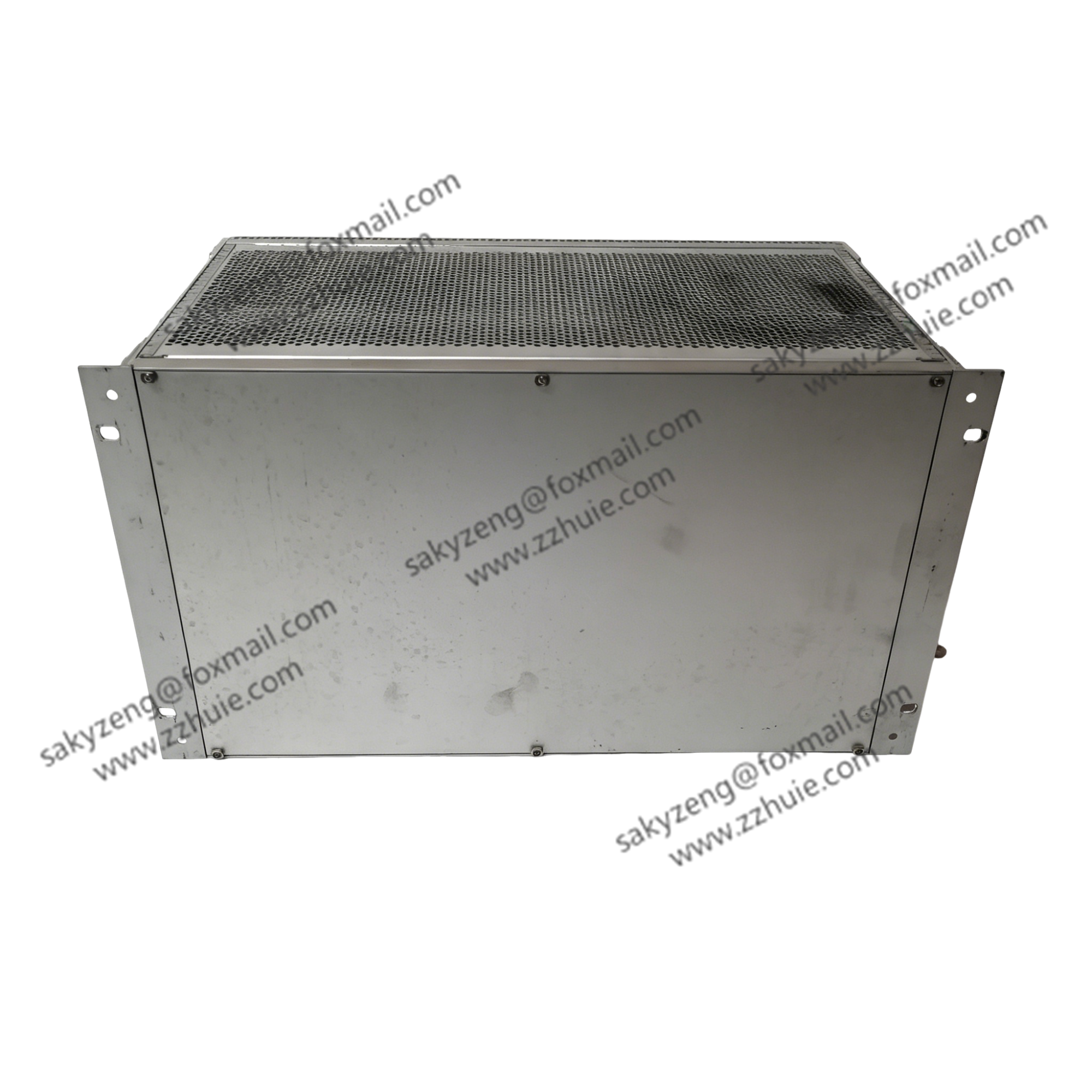

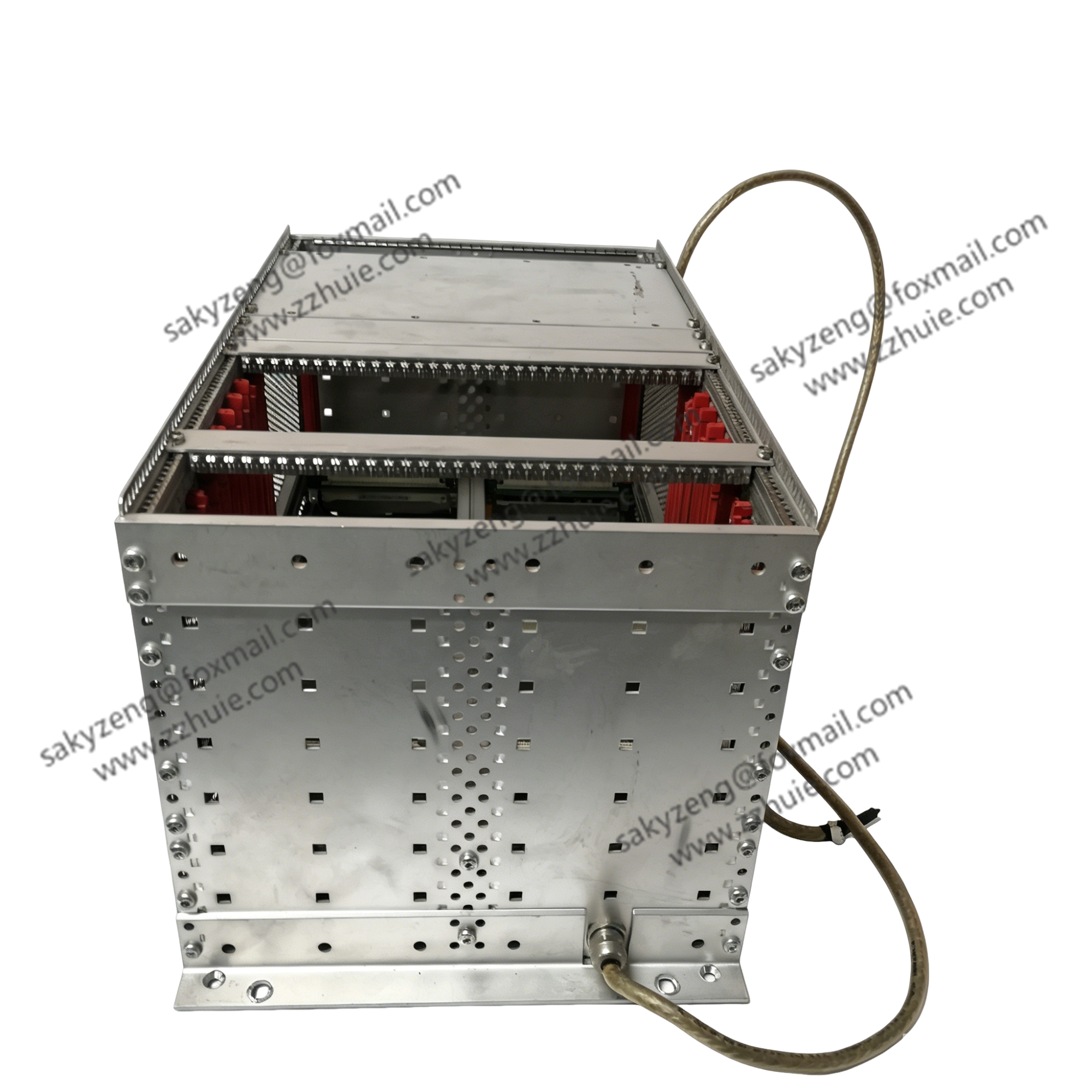

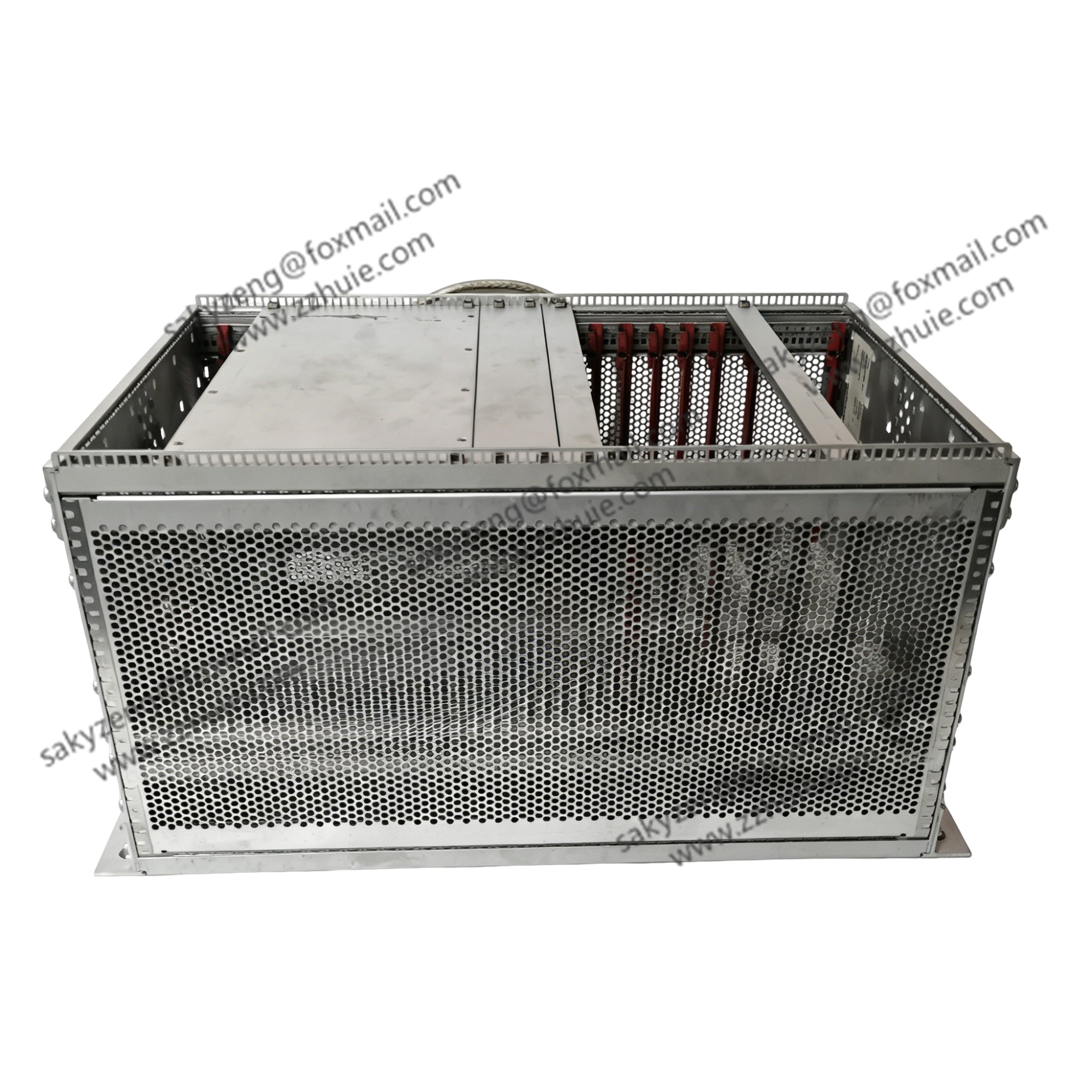

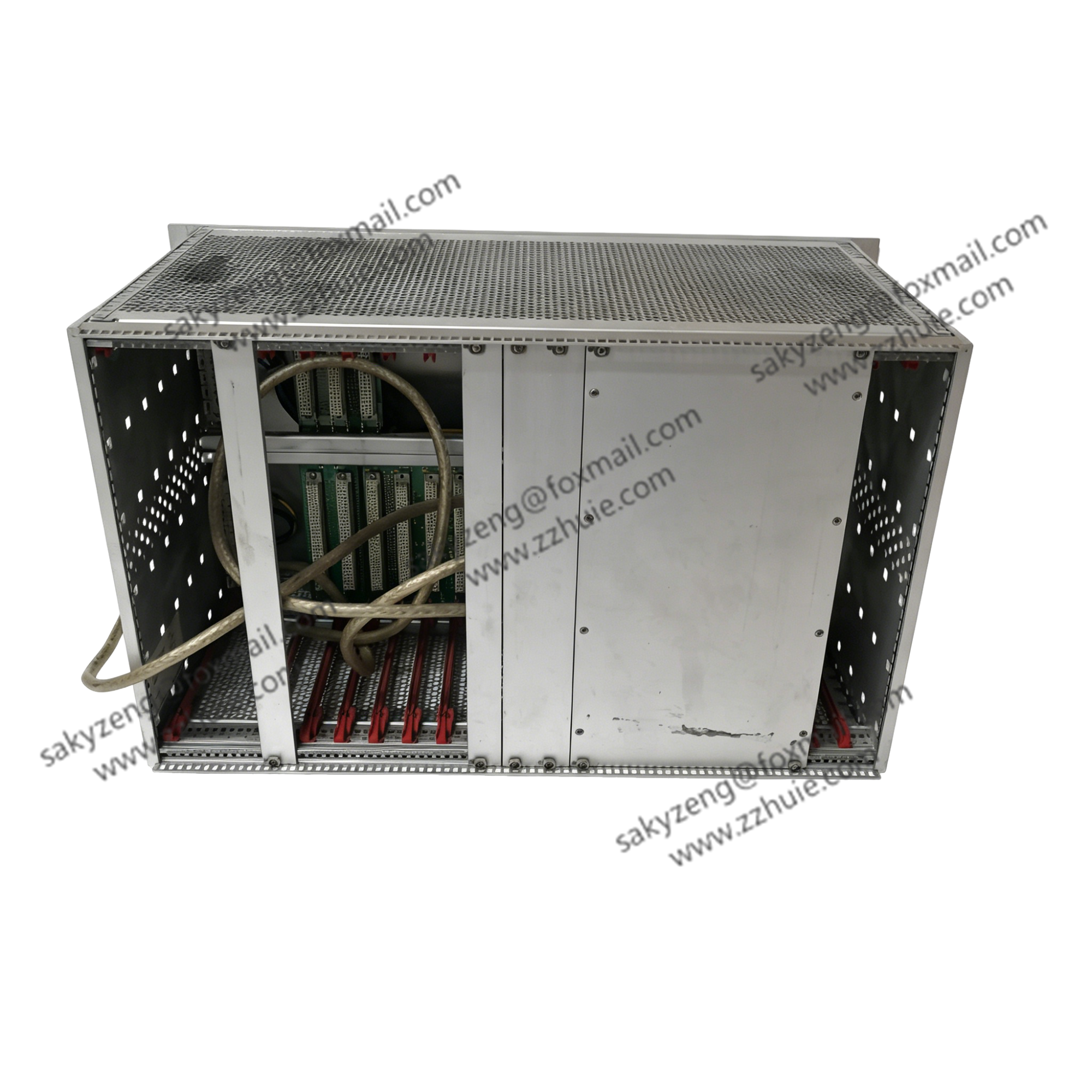

ABB 3BSC690076R5 (SCHROFF) VME Rack / Industrial Enclosure

ABB 3BSC690076R5 is a standard 19-inch VME rack developed by SCHROFF for ABB DCS systems. It serves as the main cabinet to install CPU,

I/O cards and communication modules, providing stable mechanical support, internal wiring and heat dissipation. With sturdy metal structure and industrial protection design,

 it is widely used for system assembly, replacement and maintenance in power, petrochemical and other process industries.

3. Technical Specifications

• Part Number: 3BSC690076R5
• Manufacturer: ABB (SCHROFF)
• Standard: 19-inch VME bus rack
• Size: 2U, 483 × 44 × 400 mm
• Material: Steel and aluminum alloy
• Protection Class: IP54
• Cooling Mode: Natural convection
• Operating Temperature: -25°C ~ +70°C
• Net Weight: Approx. 8.5 kg
• Color: RAL 7035 light grey
• Certification: CE, UL, RoHS
