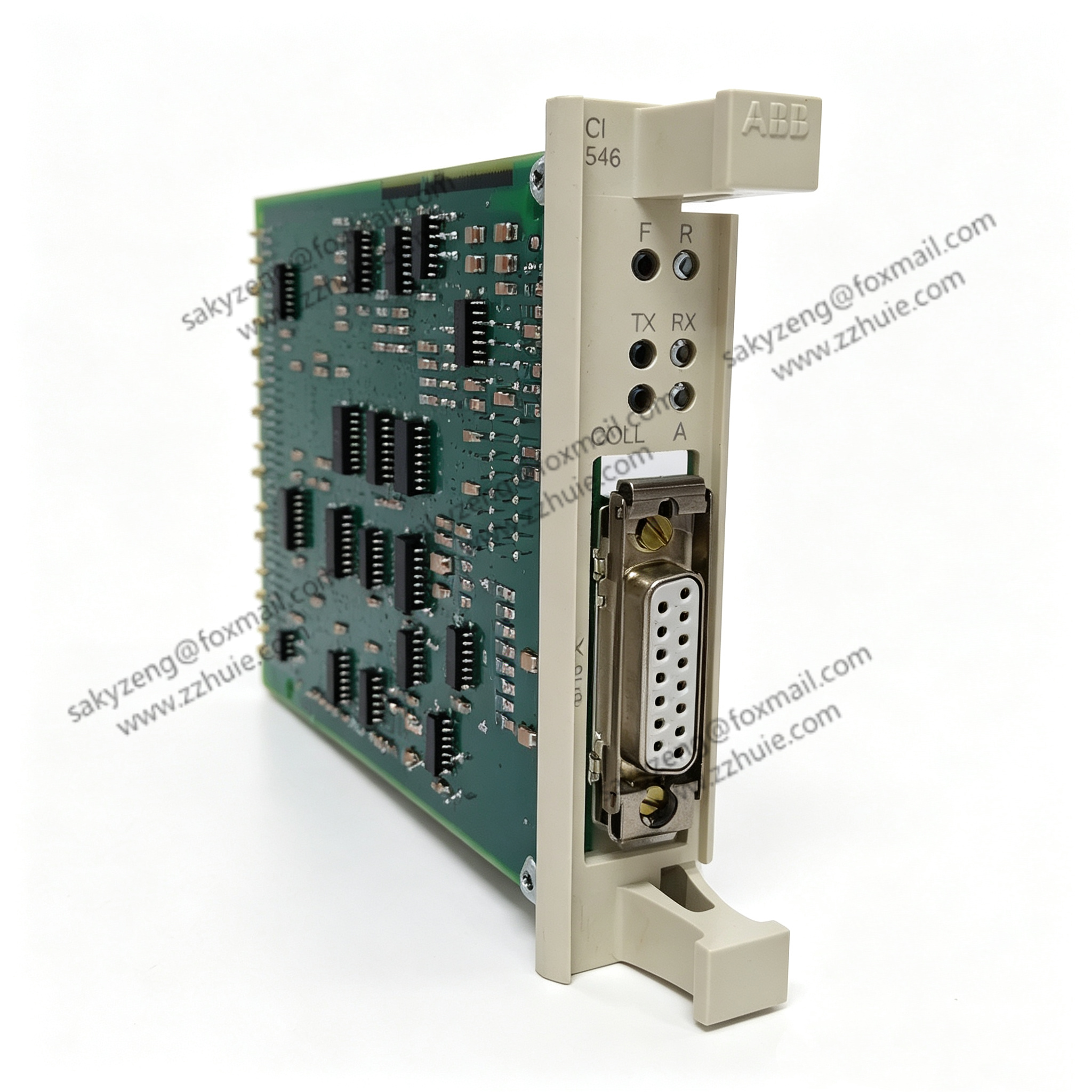

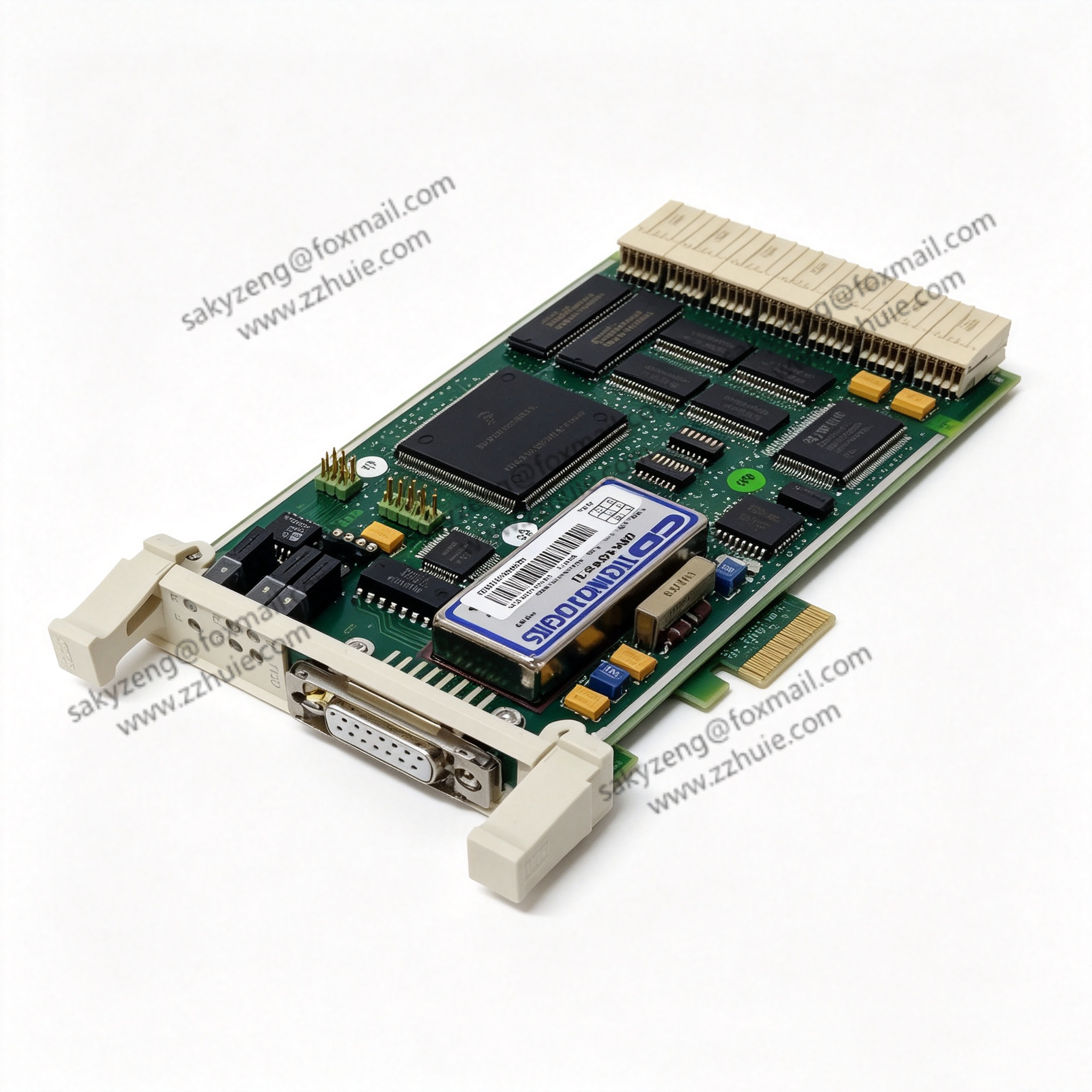

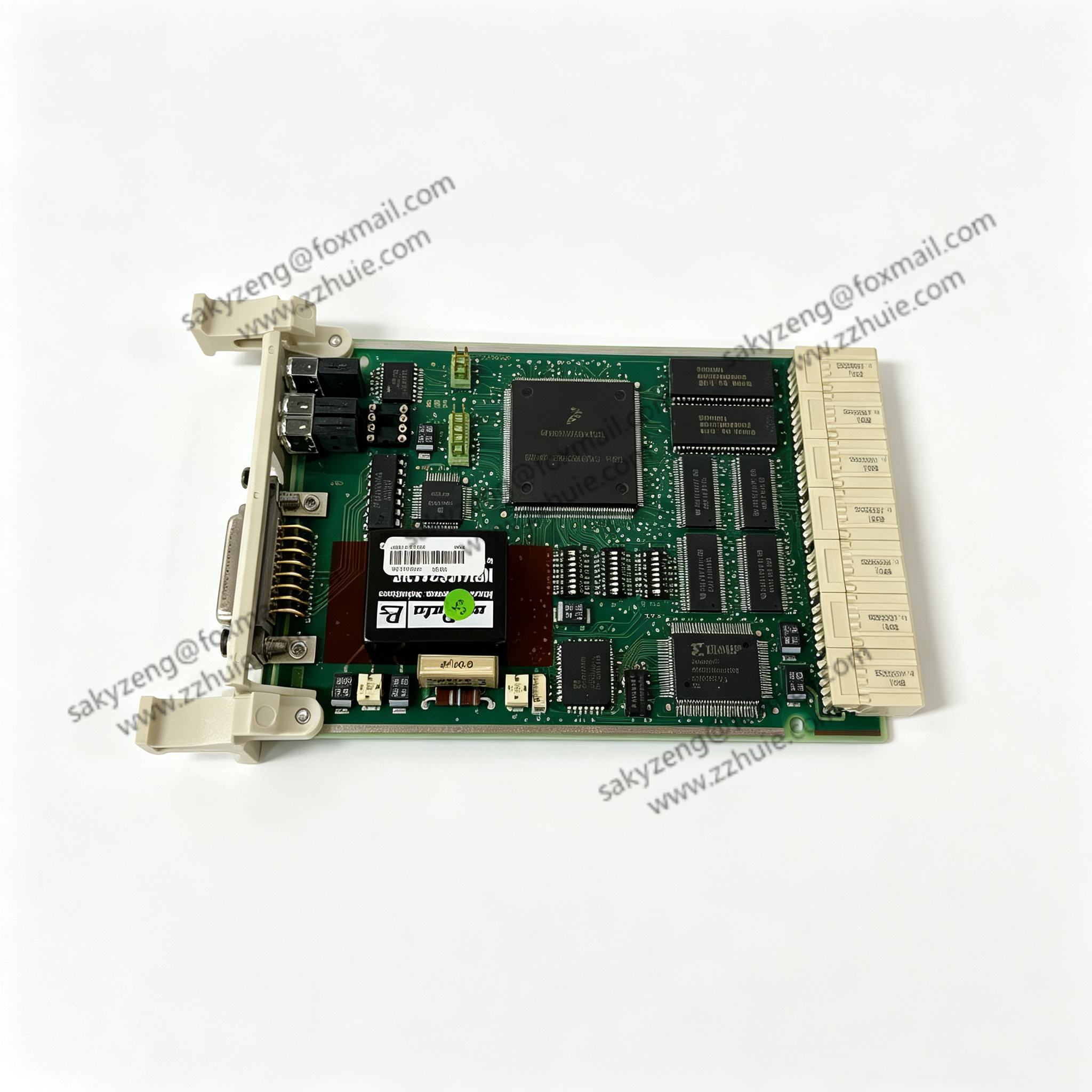

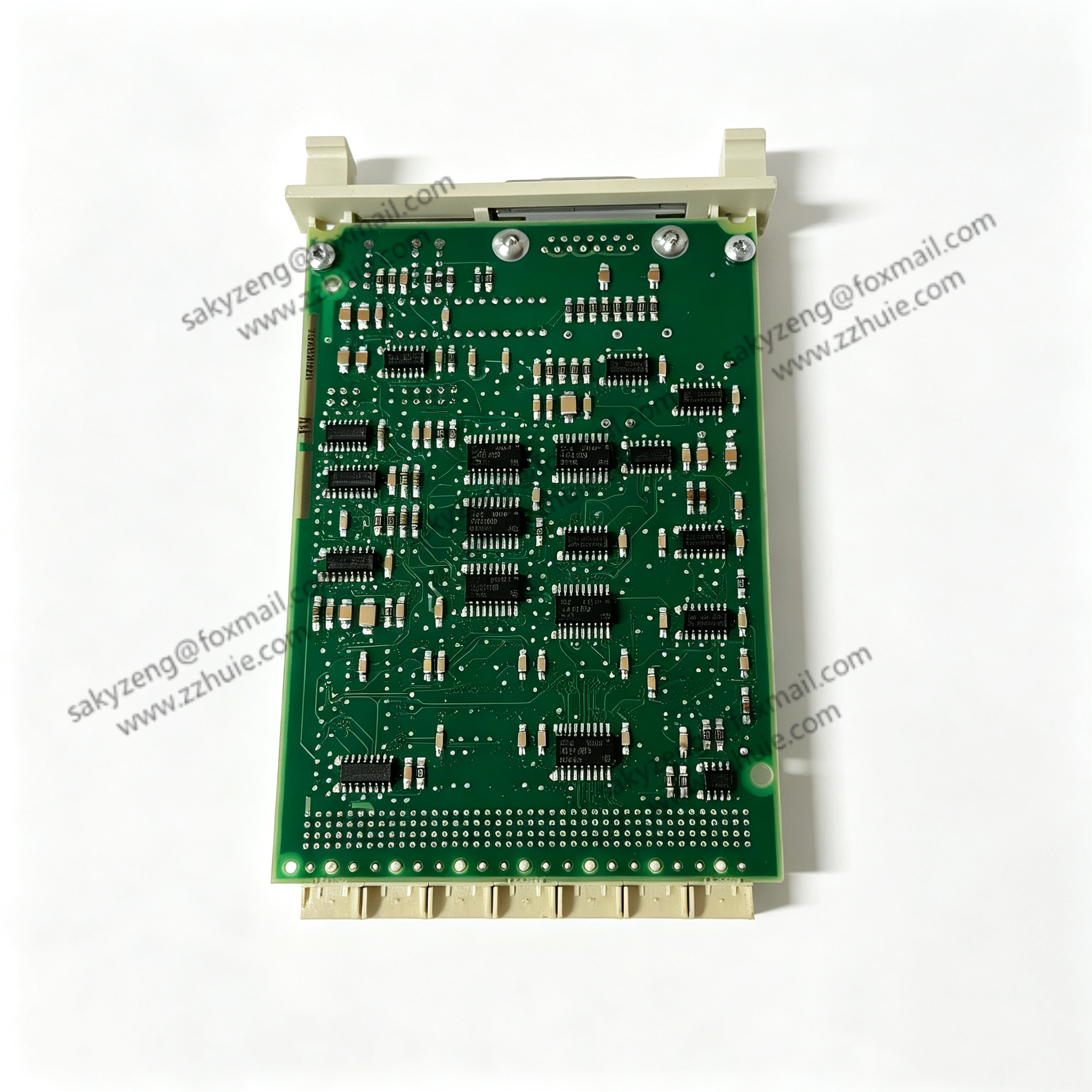

ABB CI546 3BSE012545R1 Advant Controller AC450 Serial Bus Communication Interface Module

Product Description

CI546 with material number 3BSE012545R1 is a dedicated rack-mounted communication interface card for ABB classic Advant OCS distributed control system, matched with AC450

Advant Controller mainframe.

It serves as the bridge between the controller backplane and the MasterBus 300 field bus, realizes high-speed data interaction between the main CPU, remote S100 I/O racks, operator stations

and other control nodes. Equipped with DB9 serial bus interface, on-board bus protocol processing chip, full galvanic isolation between backplane and field bus, conformal coated PCB board.

The model has been officially discontinued by ABB, it is a core scarce replacement spare for power plants, pulp & paper mills, metallurgy legacy ABB DCS central control rooms.

Technical Specifications

Model: CI546, Part No.: 3BSE012545R1

Brand: ABB, Origin: Switzerland

Compatible Host: Advant Controller AC450 (Advant OCS DCS platform)

Bus Protocol: MasterBus 300 / MasterBus 300E proprietary fieldbus

External Interface: 1 × DB9 D-Sub serial connector

Backplane Bus: AC450 internal parallel backplane bus

Electrical Isolation: 1500Vrms isolation between field bus and controller rack backplane

Power Supply: Powered by AC450 rack backplane DC bus

Module Weight: 0.16kg

Operating Temperature: 0℃ ~ +60℃ full load continuous operation

Storage Temperature: -40℃ ~ +85℃

Humidity: 5%–95% non-condensing, anti-corrosion conformal coated PCB

Protection Class: IP20, only installed inside DCS controller cabinet rack

Mounting: Standard single-slot plug-in card installation for AC450 subrack

Certifications: CE, industrial EMC anti-interference standard

Key Features

Exclusive matching with AC450 controller, undertakes MasterBus300 fieldbus communication scheduling, connects distributed remote S100 I/O stations to expand system I/O capacity.

Hardware-level electrical isolation design effectively eliminates ground loop interference and surge impact from long-distance field cables, protecting the main controller backplane.

Front panel running/fault status LED indicators, intuitive judgment of bus communication link health and module working status for rapid on-site troubleshooting.

Supports bus redundancy network configuration when paired with dual CI546 modules, greatly improving the reliability of the whole DCS control system.

Compact single-width plug-in structure, power-off direct one-to-one replacement without modifying rack wiring, convenient for old equipment maintenance and overhaul.

Industrial-grade vibration-resistant PCB layout and moisture-proof coating, long-term stable 24/7 uninterrupted operation in high-temperature, dusty control room environments.

Complete Advant OCS system protocol adaptation, seamless data exchange with operation station, historian server and third-party gateway devices.

Discontinued legacy DCS core spare part, irreplaceable for the renovation and maintenance of old-generation power and process industry ABB control systems.
